Description
KST DS565X HV Mini Digital Metal Gear Tail Servo is a great choice for helicopters ranging from 325mm-425mm rotor blade size requiring mini servos on the tail rotor! It’s critical to ensure your gyro has the capability to operate 760uS Tail Servos, ensuring that the KST 565X operates correctly.
Compatible Helicopters
Tail servo for: OMPHobby M4, Oxy 4, MSH PROTOS 380, 500, Goblin 380, Goblin 420, Align TREX 450, TREX 470, T-REX 500, Gaui X3
Features:
- Mini size aluminum case
- Full metal gears
- Dual ball bearings
- HV compatible
- Lightning fast
- Coreless motor
- Narrow Pulse – 760uS – Helicopter Tail
Specifications:
Operating Voltage: 6-8.4V

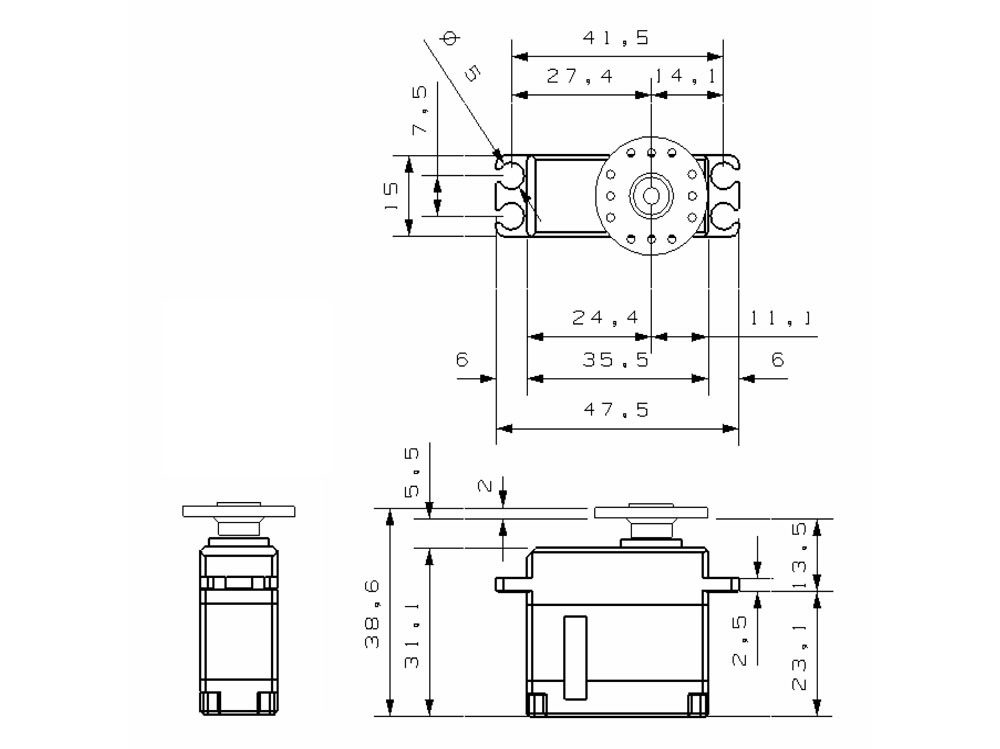

Size: 35.5x15x32.7mm
Pulse Width: 760uS
Torque: 4.0kg.cm @ 6.0V; 6.0kg.cm @ 8.4V
Speed: 0.06sec/60° @ 6.0V; 0.04sec/60° @ 8.4V
Weight: 40g
Working Frequency: 760us/560Hz
Motor: Coreless
Ball Bearing: 2BB
