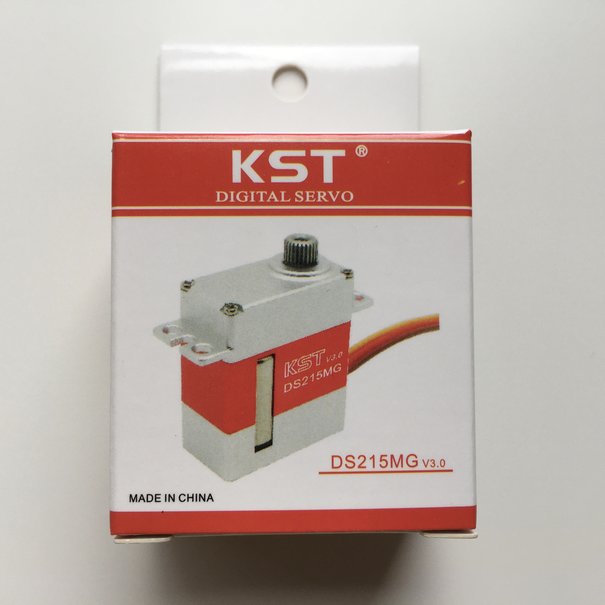

KST DS215MG V3 Micro Digital Metal Gear Servo

Description

KST DS215MG V3 Micro Digital Metal Gear Servo, is ideal for Cyclic and Tail use. Looking for speed in a micro package? The KST DS215MG is lightning fast, high voltage compatible and comes in a beautiful aluminum case. Power comes via a coreless motor, running on silky smooth bearings with all metal gears. For the ultimate in speed and accuracy, turn to the DS215MG for your demanding needs.

Discontinued: Now replaced with updaded KST DS215MG V8.

Compatible Helicopters

Swash servo for: Oxy 3, Oxy 4, MSH PROTOS 380 , Goblin 280, Goblin 380, Goblin 420, Align TREX 450, T-REX 470, Gaui X3

V3.0

As time has progressed, KST has done additional development on the gear train of the 215 servo, and changed the servo gear material used to Stainless Steel, from Aluminum. This means that the metal gear train will be much more durable than previous versions, improving durability greatly.

Features:

• Micro size aluminum case
• Full metal gears
• Dual ball bearings
• HV compatible
• Lightning fast
• Coreless motor

Specifications:

Operating Voltage: 6-7.4V
Size: 23x12x27.5mm
Torque: 3.10kg.cm @ 6.0V; 3.70kg.cm @ 7.4V
Speed: 0.06sec/60° @ 6.0V; 0.05sec/60° @ 7.4V
Weight: 20g
Working Frequency: 1520us/333Hz, 800us – 2200us
Motor: Coreless
Ball Bearing: 2BB

Datasheet:

Download datasheet.
