Description

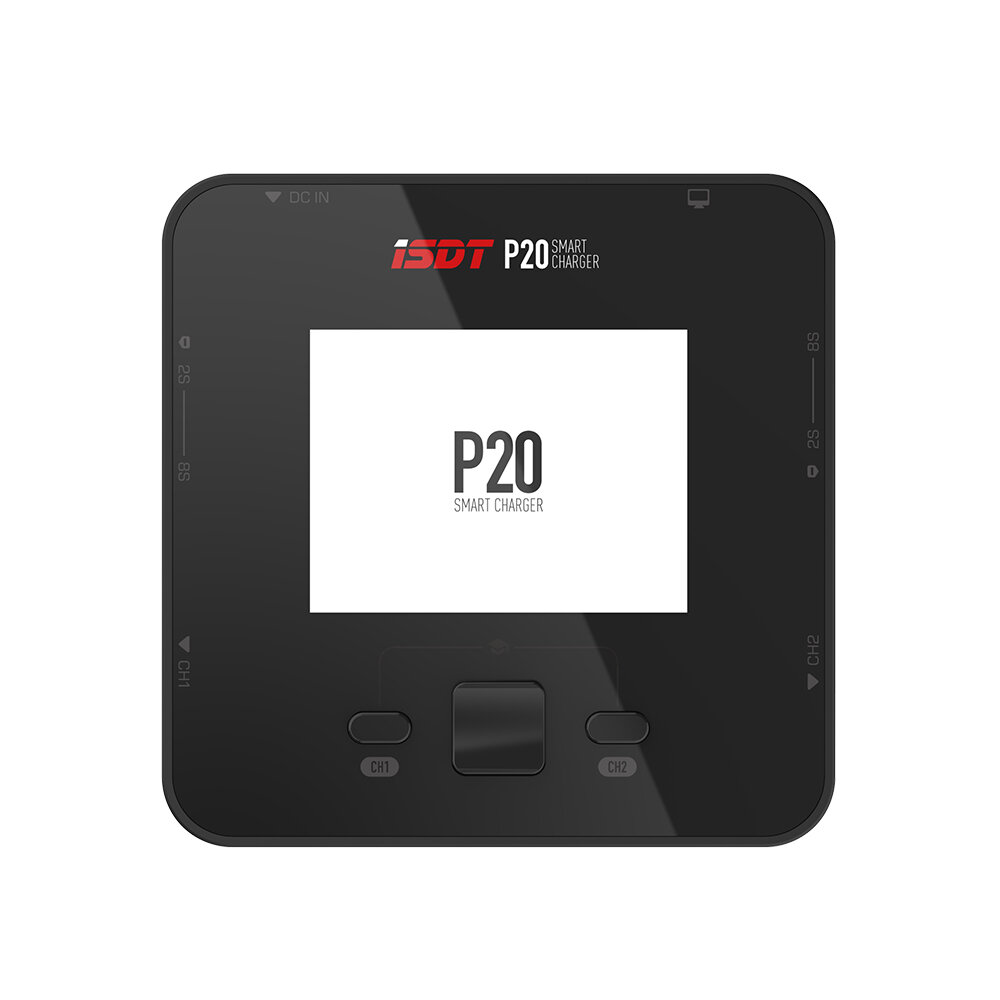

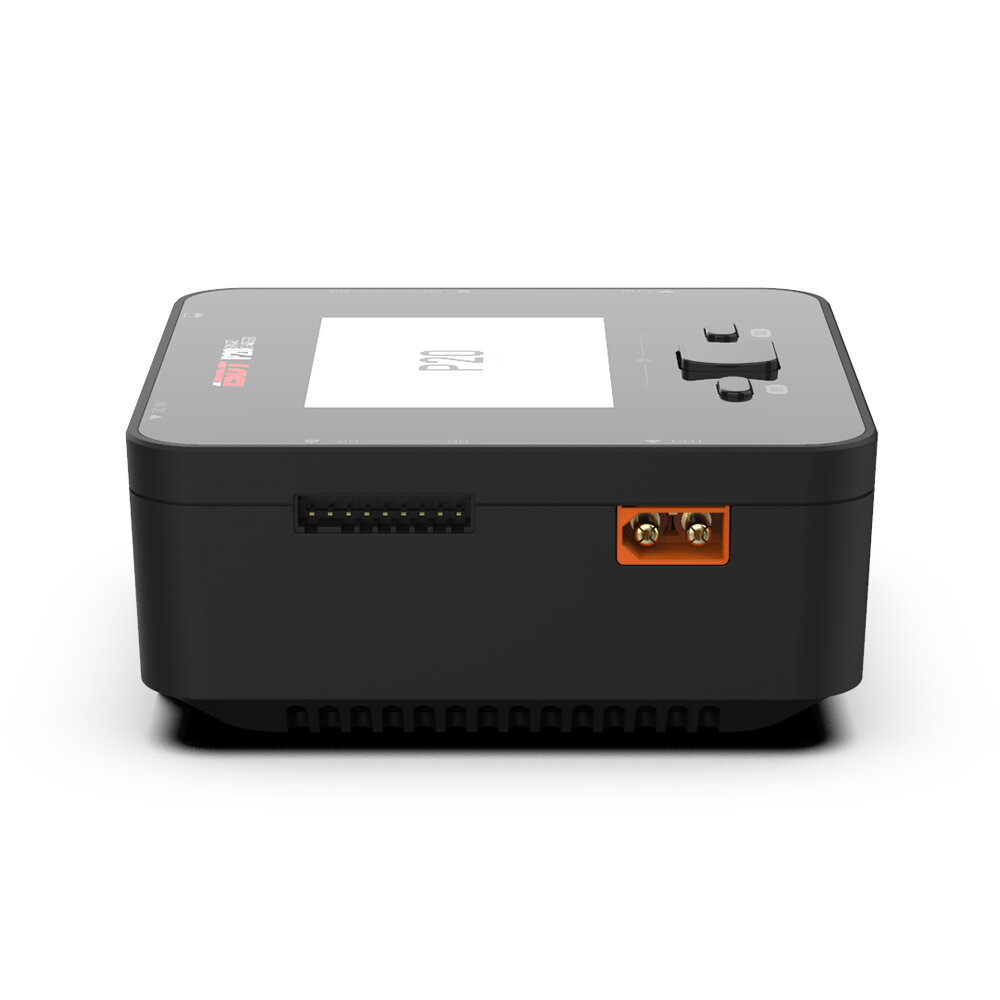

The ISDT P20 Dual Channel Battery charger supports up to 1000W total power (500W per channel). It can support charging current of up to 20A per channel. It also supports discharging mode with 30A per channel.
NOTE: ISDT P30 requires external DC power supply.
Features
- High Power Dual Channel Input and Power Distribution
- Synchronous Parallel charging
- Aluminum Housing
- 3.5” High Resolution IPS screen
- Sample Touch Swipe Interface
- OTA upgrade
- upto 8S support
Specifications
| Input voltage: | DC 10~34V |
| Output voltage: | DC 1~34V |
| Max. input current: | 35A |
| Charging current: | 0.2~20A x2 |
| Discharging current: | 0.2~1.5A x2 |
| Balance current: | 1.5A/Cell Max |
| Max. discharging power: | 15W x2, (30W 3A parallel discharge) |
| Max. charging power: | 500W x2 (1000W total) |
| Abnormal voltage alarm: | supported |
| Incorrect cell count setting alarm: | supported |
| Supported battery types and cell count: | LiFe, LiIon, LiPo 1-8S ; LiHv 1-7S ; Pb 1-12S ; NiMH/Cd 1-16S |
| Output interface: | XT60i（XT60 compatible） |
| Input interface:: | XT60i（XT60 compatible） |
| Display: | 2.8’’ 320×480 IPS LCD |
| Working temperature: | 0~40℃ |
| Storage temperature: | -20℃~60℃ |
| Dimension: | 105x105x47mm |
| Weight: | 350g |
Includes
- 1x ISDT P20 Charger
