OMPHobby M1 2025 RC Helicopter BnF

Description

OMPHobby M1 2025 is the updated version of the original M1 RC Helicopter sporting a new, brighter and more visible canopy design with updated graphics in orange and yellow and an updated larger R11-2 tail motor. M1 V1 now fits right in with OMPHOBBY’s main line models. The updated, larger R11-2 tail motor produces more torque and can reach higher RPM. Together with a new form factor and cooling concept, this ensures a cool and powerful tail drive system in any flight situation!

The OMPHobby M1 RC Helicopter BnF is a great micro (150 size) 3D Flybarless RC helicopter. Best for indoor flying during bad weather days. It can be flown outside as well. The refreshed OMP M1 Helicopter has updated canopy colors, decals and an attractive price. Available in 2 new colors Orange and Yellow.





For external ELRS receiver, OMP or S-FHSS version does not matter. You can choose S-FHSS version.



WARNING! This is not a Toy. Improper usage can result is serious injury. RC Simulator practice is recommended before attempting to fly this model. Not suitable for children.
Read more!

Features:

• Dual Brushless Motors: The dual ESCs are improved using high quality MOSFETs with lower internal resistance enhancing the flight characteristics even further.

• 290mm Main rotor diameter
• Weight:Approx 118g

• Six Core Advantages



Details:

• The built-in flight controller supports S-BUS and DSM/DSMx satellites. The flight controller has fully adjustable parameters including gyro sensitivity, rates, gain, servo center and collective pitch range.

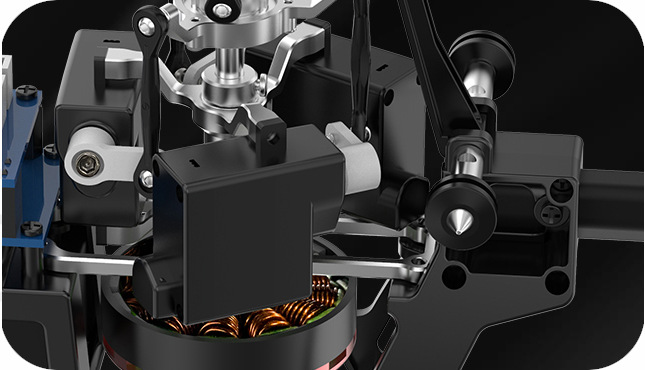

• Integrated One Piece CNC servo mount: 3 servos 120 degrees evenly distributed for balance, strength and easy maintenance.

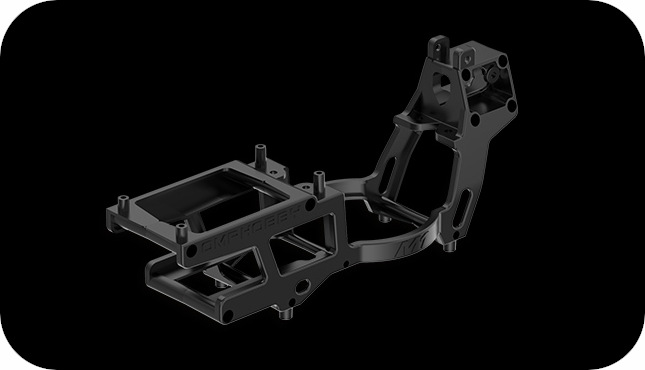

• One Piece Fuselage structure of injection molding providing strong supports for extreme 3D flights.

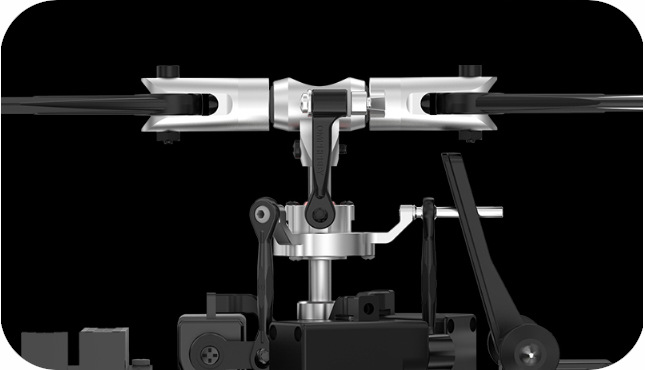

• Two bearings used for Main Rotor Grips. Larger feathering shaft makes it more durable.

• Updated Direct drive tail motor (R11-2) with injection molded tail fin.

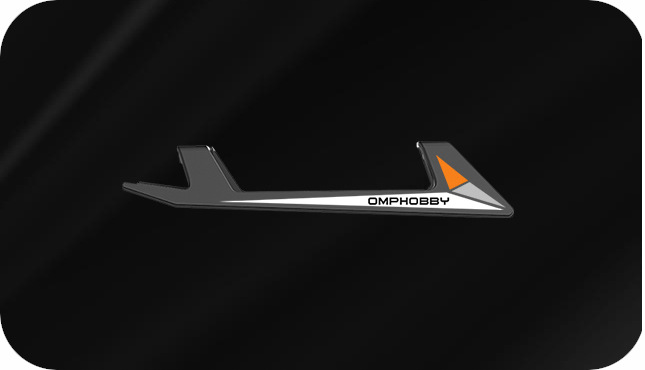

• Landing gear is made of high strength nylon that is more forgiving.

• Inverted tear drop shape allows for light weight, high strength, reliable and precise positioning.

• OMPHobby rotor blades provide precise lift control even at lower RPMs.

Videos

https://www.youtube.com/watch?v=gWdbFgHj6yk

https://www.youtube.com/watch?v=f3fgY3hRbpQ

Specifications:

• Main motor: Sunnysky R23-2
• Tail motor: Sunnysky R11-2
• Diameter of main blades: 290mm
• Diameter of tail blades: 46.5mm
• Weight: approx. 118g
• Overall size: 290*88*290 mm
• Battery: 2s 350mAh 50C (1 battery included)
• Flying time: maximum flying time 8min / extreme 3D 3min
• Servos: Digital sub micro, metal gears, poly carbonate case
• Flight controller: Adjustable parameters, governor mode
• Receiver: S-FHSS (Futaba) integrated receiver plus S-BUS & DSM ports for external Rx.

Size

• Length: 290mm
• Width: 290mm
• Height: 88mm

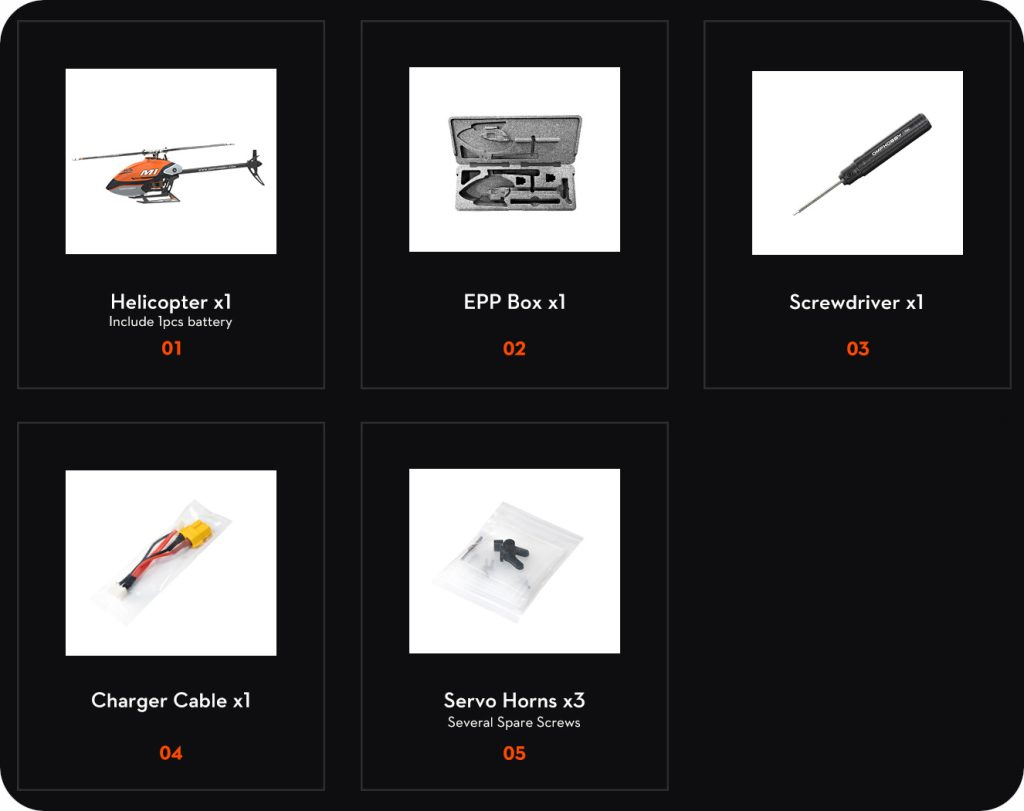

Contents:

• Helicopter
• Battery (Installed in helicopter)
• EPP Box
• 1x Hex Screw drivers
• 3x Servo Horns
• Spare Screws
• 1x Balance Charging Cable
• 1x Flight controller settings sheet
• 1x Swash leveling tool (OriginHobbies only)

Downloads:

• OriginHobbies RTF User guides
• M1 Flight Controller Manual
• OMP M1 User Manual
• Radio Setup guides (TX16S / Zorro / Futaba T18SZ)
• OMP M1 Spare Parts list
