OMP M4 Max RC Helicopter PNP Combo Kit

---

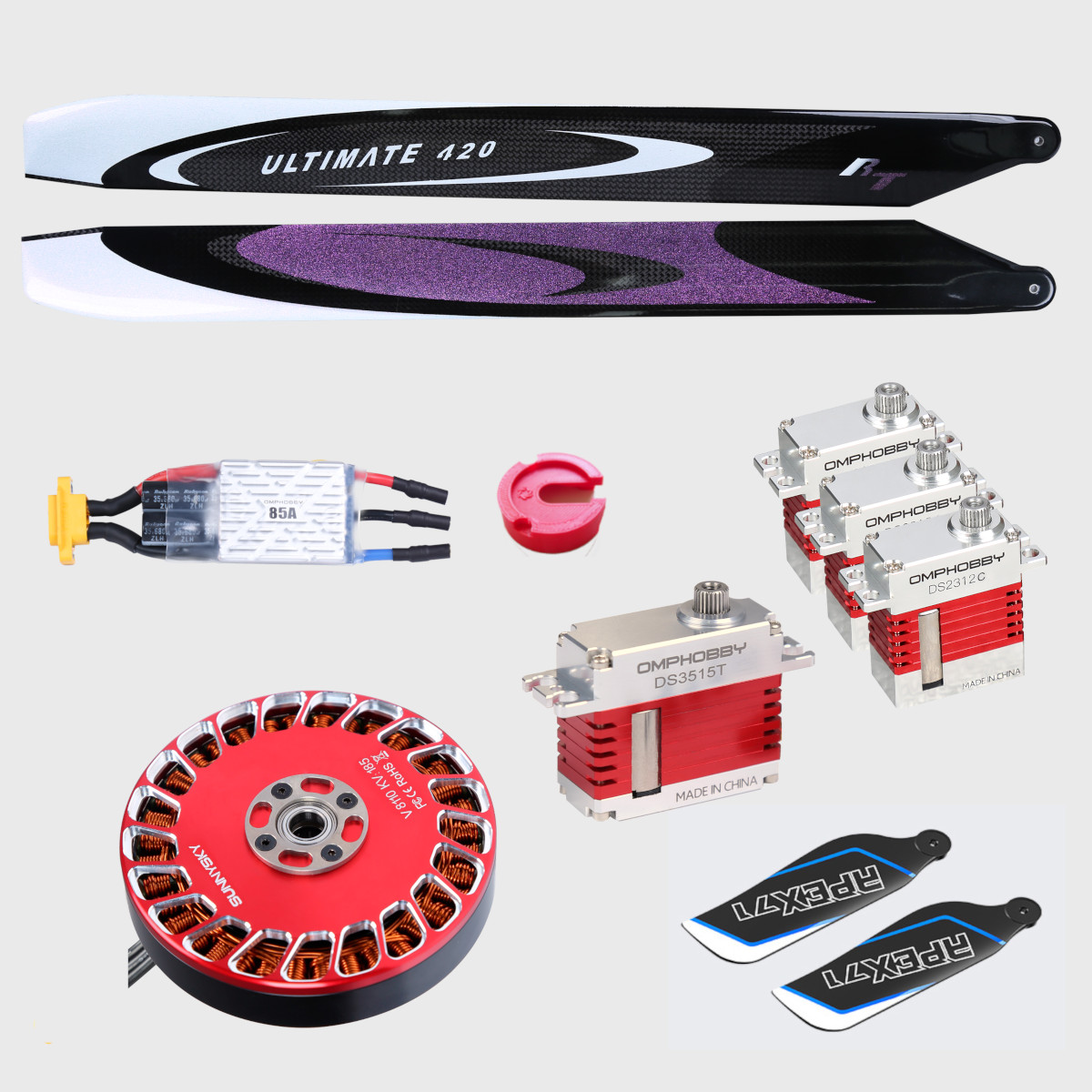

Includes

• M4 Max RC Helicopter Airframe Kit (Requires Assembly)
• Brushless Motor: Sunnysky V8110KV: 185
• 420mm RotorTech 420 Ultimate Main Rotor Blades
• 71mm Tail Rotor blades
• OMPHobby 85A ESC Supports telemetry for Vbar Control, MSH Brain2, Spirit, RotorFlight and Futaba S-BUS2.
• 3x Cyclic Servos 12mm DS2312C
• 1x Tail servo 15mm DS3515T / 12mm DS2312T
• 1x OriginHobbies swash leveling tool
• Instruction Manual


Required Components

• • 1x Flybarless controller [e.g. MSH Brain2 / Vbar EVO / Radiomaster NEXUS /BeastX / Bavarian Demon / Spirit]
  • 1x Radio Transmitter (6-channel or more) [e.g. Radiomaster TX16S / TX12 / Boxer / Zorro / Mikado VBar Control]
  • 1x Radio Receiver (6-channel or more) [e.g. Frsky R-XSR]
  • 1x LiPo Battery: 6S 1800mAh-2200mAh. Recommended battery weight: 295-325g
    • for extreme 3D: Gens Ace 2000mAh 6S1P HV
    • for sport / smooth 3D: SLS XTRON 2200mAH 6S1P

Videos

Features & Design

• Designed by Jonas Wackershauser
• Based on the proven M4 airframe with all its beloved features
• Fits up to 420mm main blades

• Three new, tri-colored, highly visible canopy designs

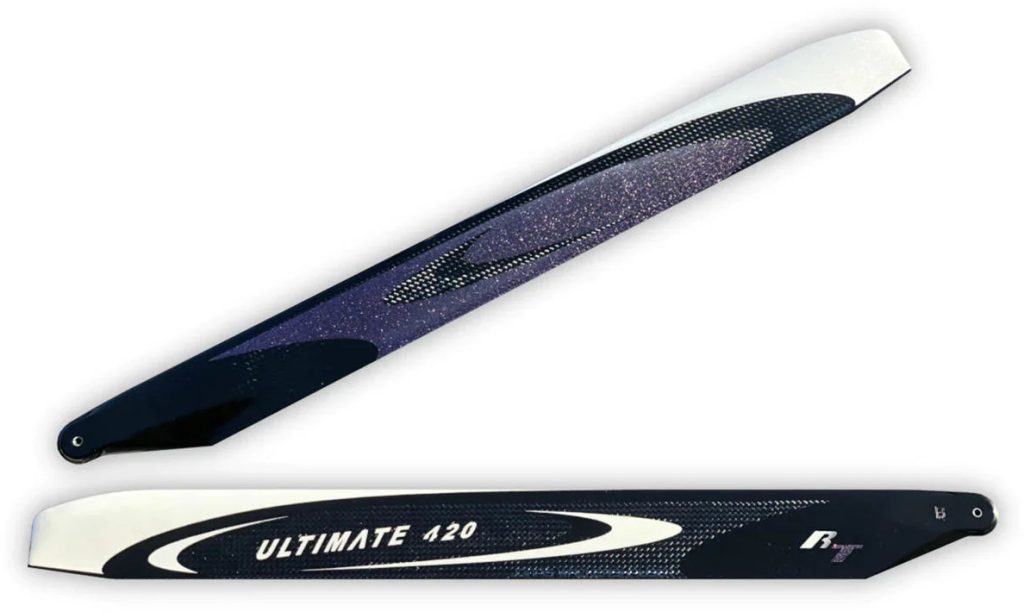

• RotorTech 420 Ultimate, the best 420 size blade available, included with Kit and PNP

• New, over 30% larger R80-7 main motor to properly drive the larger main blades

• Large 22mm diameter carbon fiber tail boom

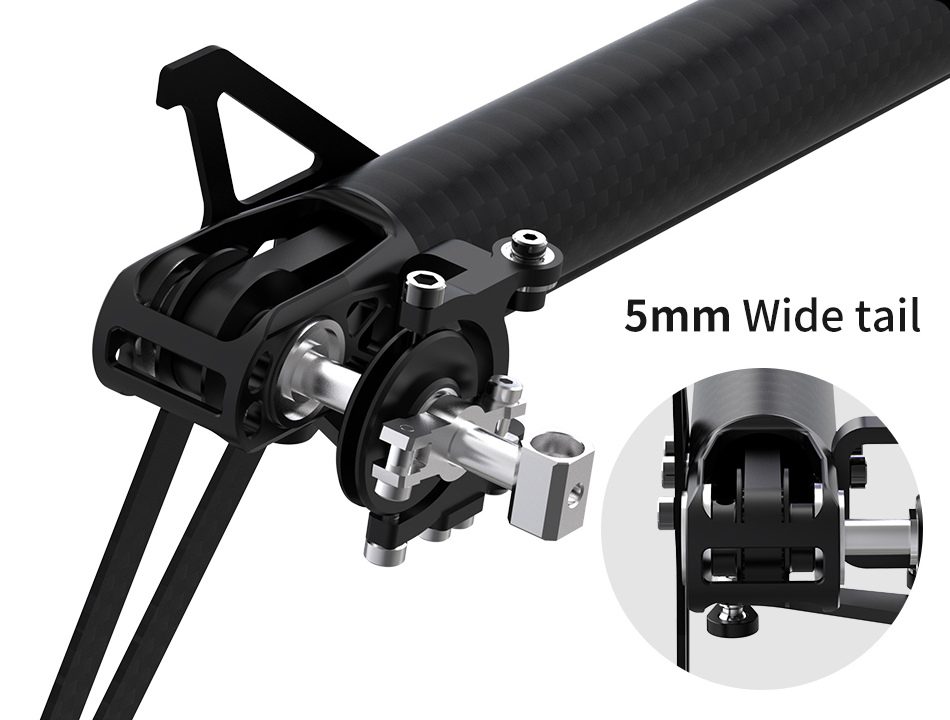

• Single-piece, lightweight CNC-machined aluminium tail rotor housing
• 5mm wide tail belt for excellent power transfer

• Tail rotor features dynamic weights to reduce yaw servo loads
• Teal accents on white landing gear, carbon boom and tail fin to match all three new canopies
• Optional OMPHOBBY DS3515T 15mm yaw servo available
• Certain battery sizes can be shared with M4 e.g. SLS Xtron 2200mAH
• Flight times 3-15 minutes on 6S 2000mAh 70C
• New OMPHOBBY 85A ESC in the PNP combo
• Flying weight appx. 1500g
