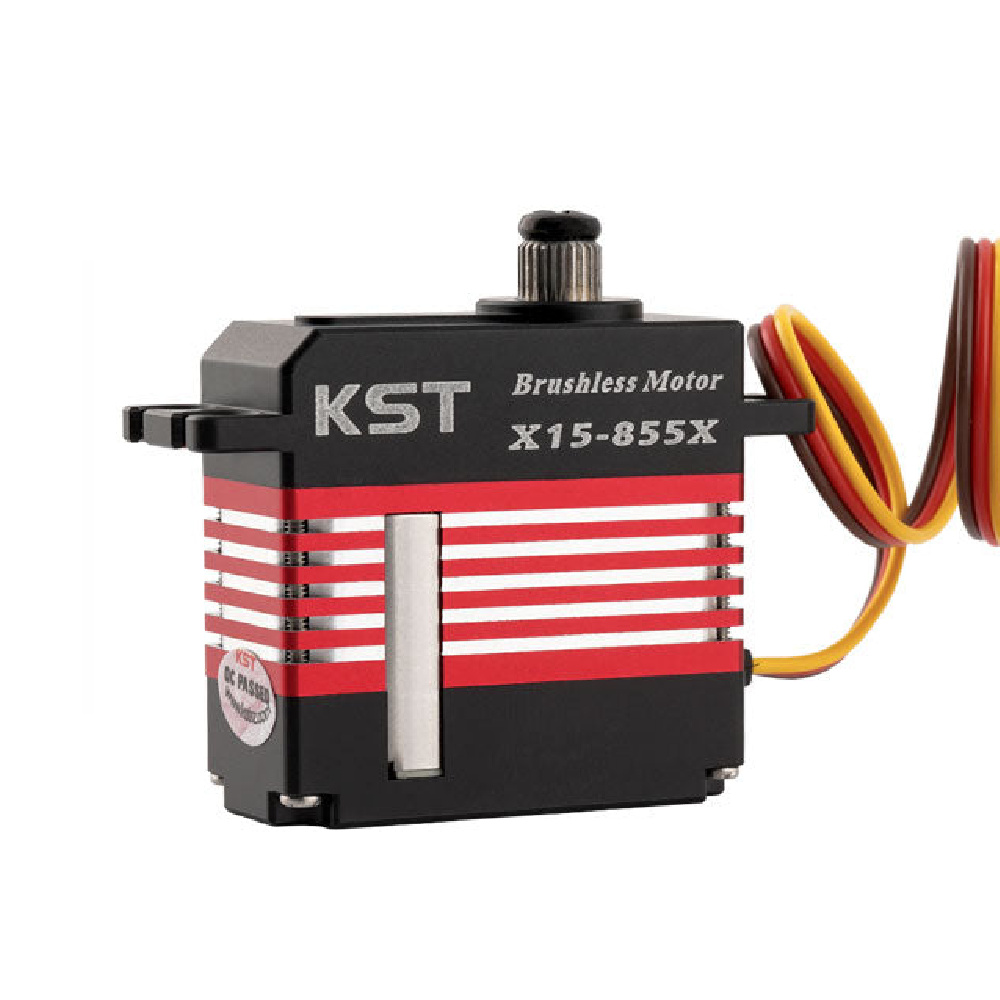

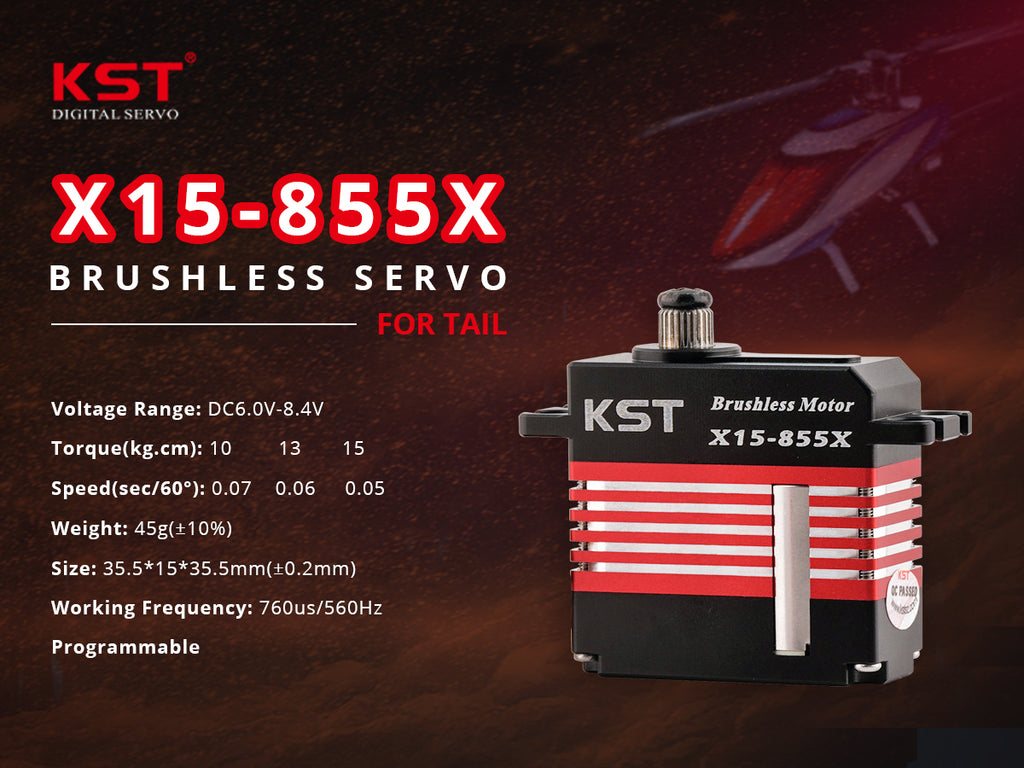

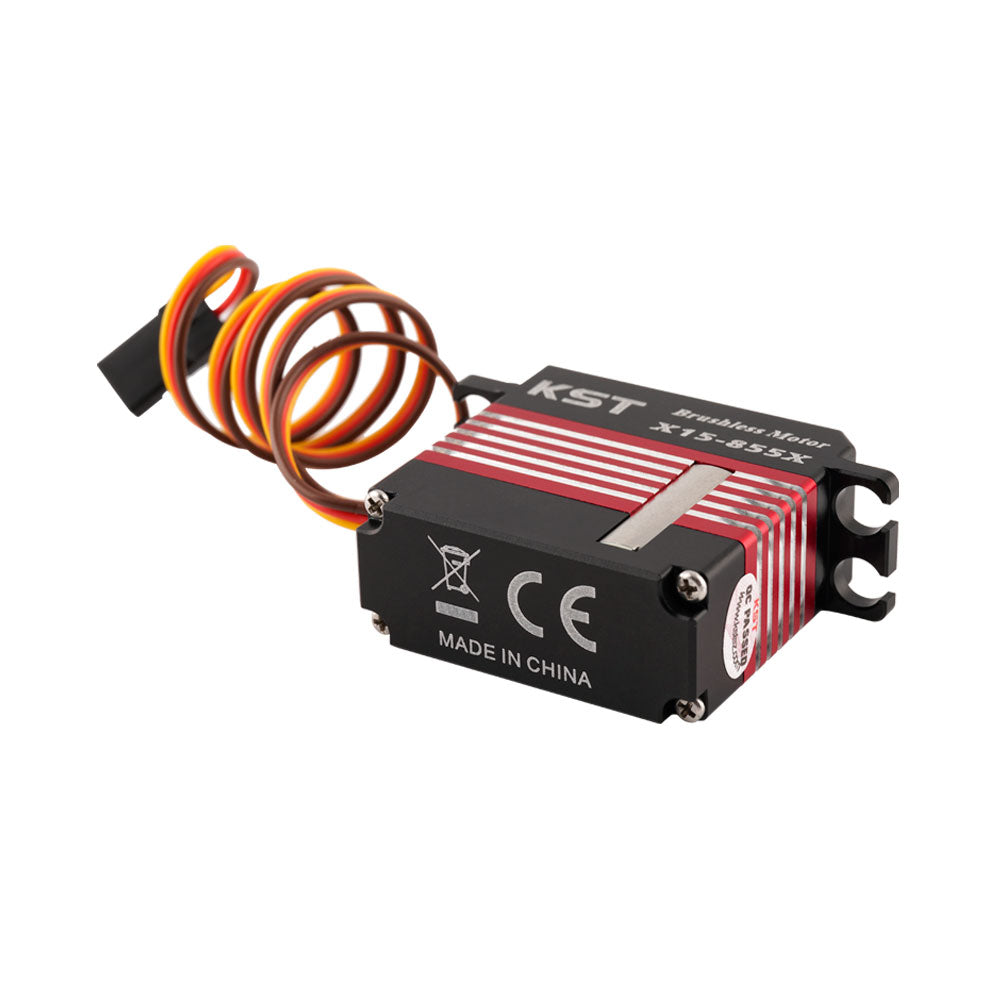

KST X15-855X Brushless HV Mini Digital Tail Servo 15Kg 0.05s 480-570 Helis

Description

The KST X15-855X Brushless HV Mini Digital tail servo is a great choice for helicopters ranging from 430mm-570mm rotor blade sizes, such as the OMPHobby M5, Align T-Rex 550, Mikado Logo 550,  XLPower Nimbus 550, and SAB Goblin 570. Features with a brilliant 15kgf.cm torque and and extremely fast 0.05sec/60° speed at 8.4V with fantastic precision and reliability.

It’s critical to ensure your gyro has the capability to operate 760μs tail servos, ensuring that the KST X15-855X operates correctly.

Ideal for helicopters of the 480 to 570 class.

Compatible Helicopters

Tail servo for: OMPHobby M5, Align T-Rex 550, Mikado Logo 550,  XLPower Nimbus 550, and SAB Goblin 570

Features

• Support High Voltage 8.4V
• Extreme Torque and Excellent Speed
• Programmable
• Dual Ball Bearings
• Brushless DC Motor
• Hardened Steel Gears
• CNC Aluminium Case

Specification

• Rated Voltage: DC7.4V
• Voltage Range: DC6.0V-8.4V
• Torque:
  10Kgf.cm@6.0V
  13Kgf.cm@7.4V,
  15Kgf.cm@8.4V
• Speed:
  0.07sec/60°@6.0V
  0.06sec/60°@7.4V
  0.05sec/60°@8.4V
• Working Frequency:  760μs/560Hz
• Temperature Range: -10℃……+65℃
• Case Material: Aluminum Alloy
• Motor Type: Brushless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Ball Bearing: 2BB
• Case Dimensions: 35.5mm*15mm*35.5mm±0.2mm
• Weight: 45g±10%

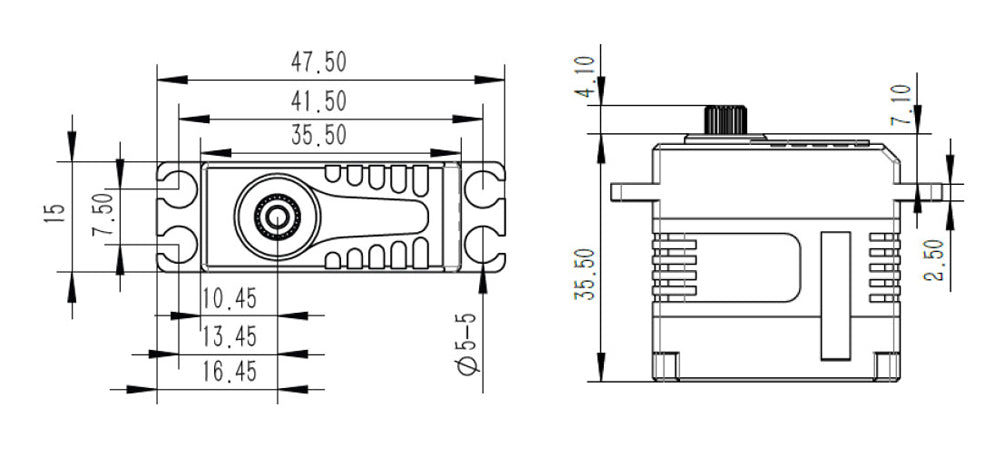

Size

Package Includes

• 1 * X15-855X Tail Servo
• 1 * CNC Servo Horn
• 1 * Plastic Servo Horn
• 1 * Servo Horn Screw
• 4 * Mounting Screw
• 4 * Rubber Grommet
• 4 * Eyelet

Download
