Xnova Lightning 3220-950kv Motor 1900W (6S) Shaft A, ILGoblin 420

Description

Xnova lightning 3220-950KV high performance outrunner motor has been specially designed for designed for extreme 3D flying in 380-420mm helicopter where highest power to weight ratio is important.

Suitable for SAB ILGoblin PRO 420, SAB Goblin 380, RAW 420 Competition, Protos 380, Oxy 4 Max

Highlights

• Improved higher efficiency with thinner stator lamination, designed with integrated cooling system resulting in lower temperature.
• Increased power output by use of thicker hand wound YY single strand copper wires, heat resistant up to 250 degrees C.
• New type of high-performance neodymium magnets, heat resistant up to 150 degrees C resulting in overall better performance.
• 100% handwound..

Specifications

Motor Kv	950KV RPM/Volt
Weight	200g
Motor Body Dimensions (no shaft)	40.5mm x 45mm

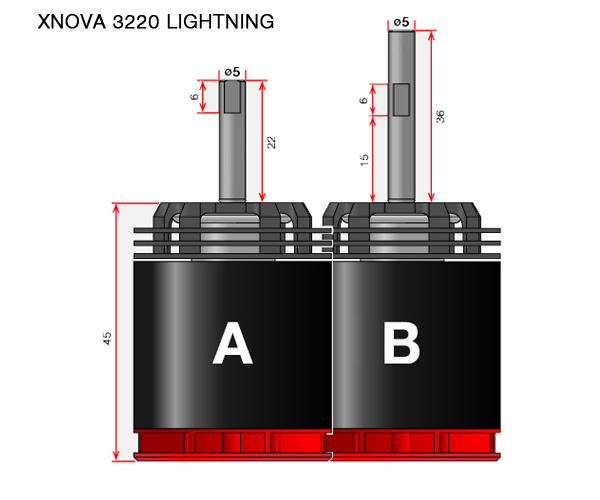

External Shaft Dimensions	5mm x 22mm
Continuous Current	60 Amps
Continuous Power	1450 Watts
Peak Power	1900 Watts (2 seconds)
Max Lipo Cell*	6s
No. of Slots	12
No. of Poles	10
Motor Wind T	YY
Mounting Screws	4*25*M3
