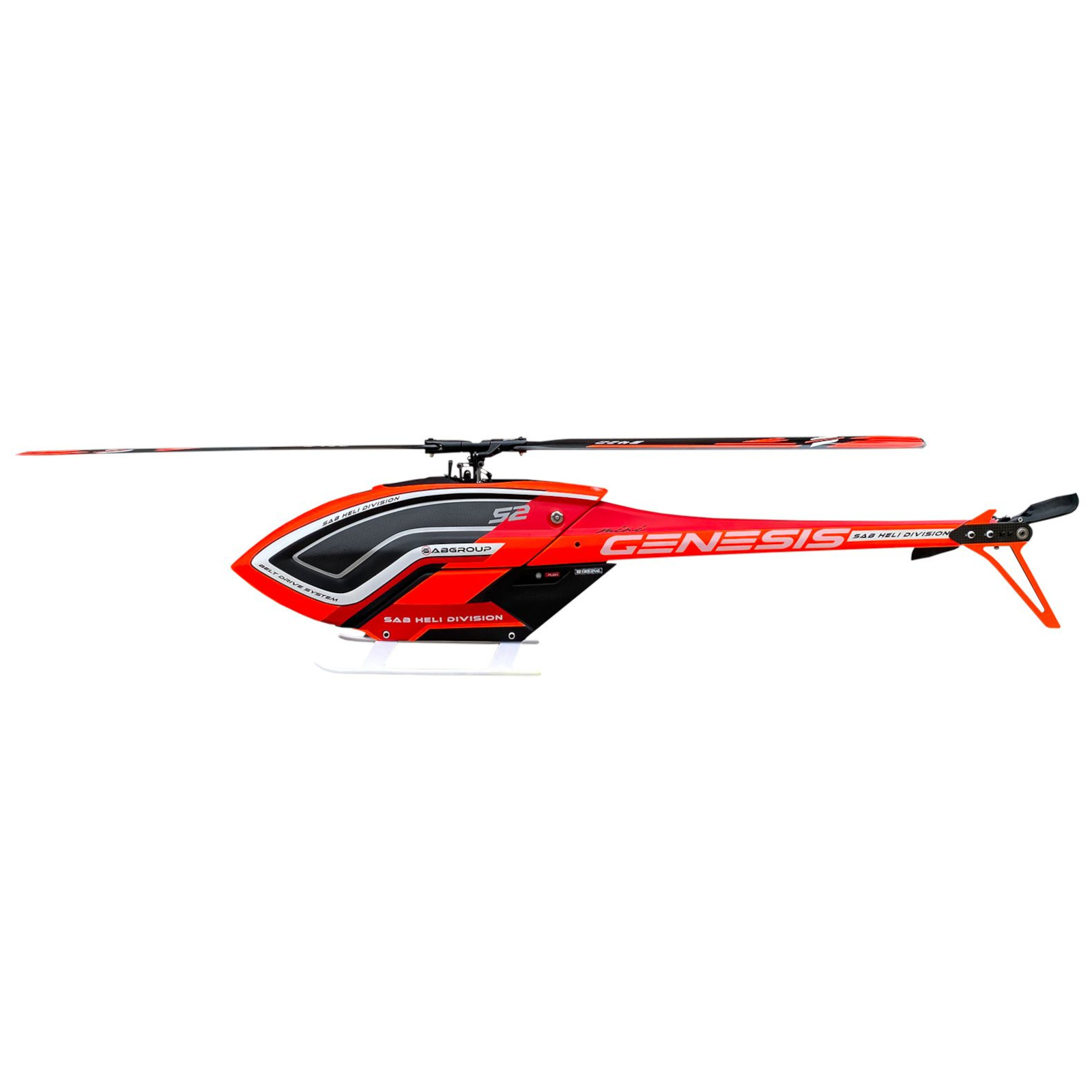

SAB Mini GENESIS Orange – SG425 #52

Description

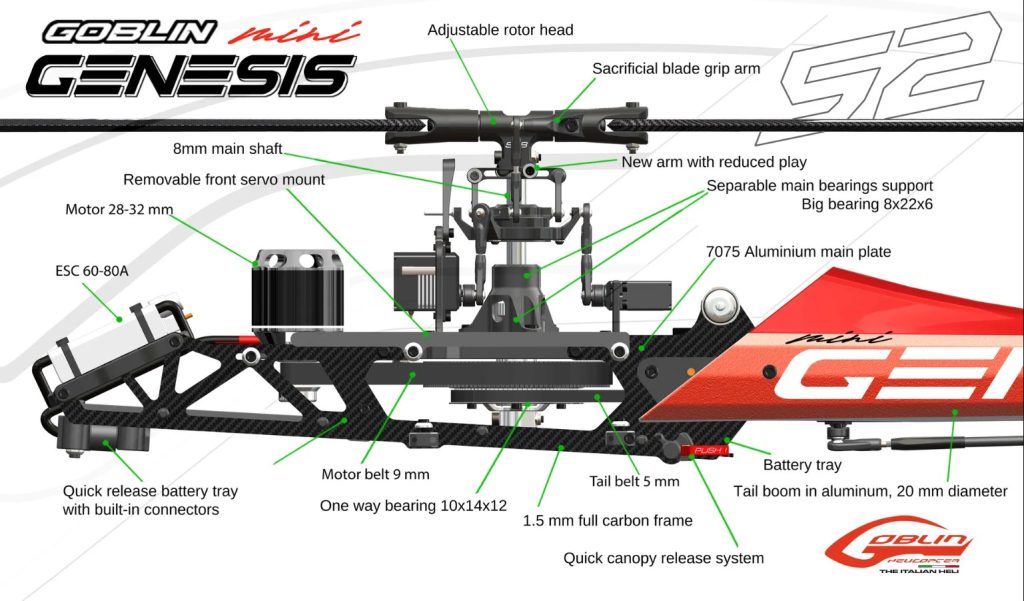

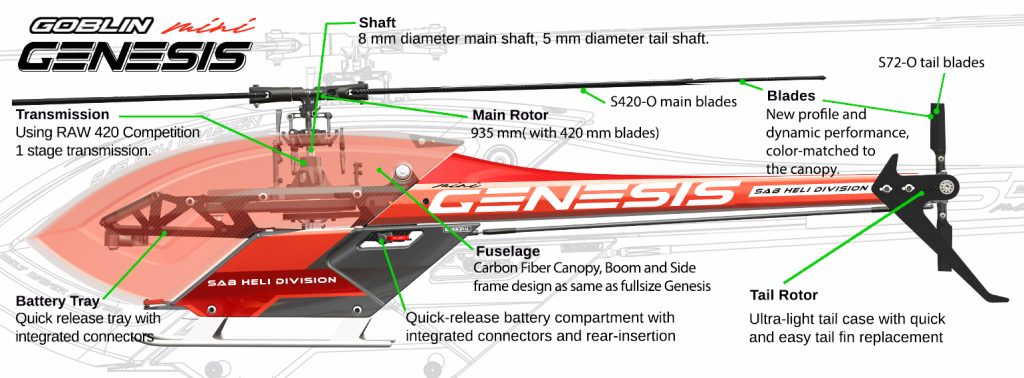

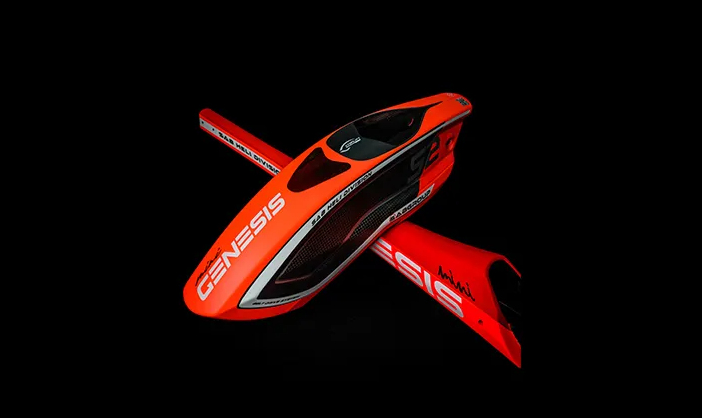

SAB Mini GENESIS Orange gives you the looks of the original GENESIS helicopter but in smaller form factor. It uses the same 1 stage transmission as the RAW 420 Competition. The Carbon Fiber Canopy. Boom and Side frame design is same as the full size Genesis.

Highlights:

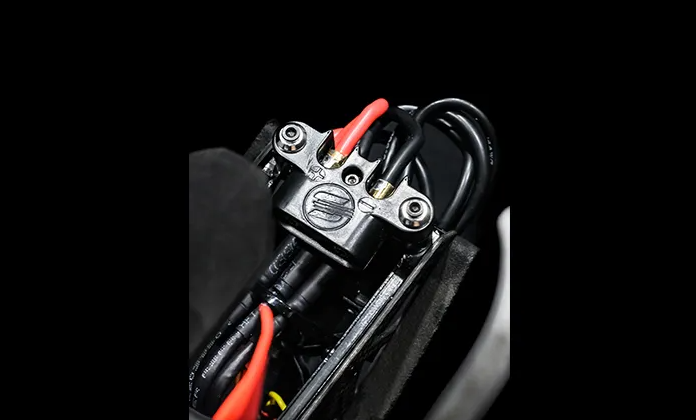

• Quick release battery tray with integrated connectors
• Zytel HTN resin blade grip arms (sacrificial)
• It is not necessary to remove the canopy to replace the batteries.
• Main ratio from 5:1 to 6:1
• Tail ratio 4:1

Features

Specifications

• Airframe weight : 1000gr (with main and tail blades, no battery and electronics)
• Main rotor diameter 935mm (with 420mm blades)
• Main blade length 380 to 420mm
• Tail rotor diameter 194mm (with 72mm tail blades)
• Tail blade length 60 to 72mm
• Micro size cyclic servos (23mm)
• Mini size tail servo (35mm)
• Maximum battery size: 140x40x50mm (max)
• Recommended battery: 6s 2200/2700 mAh
• Recommended motor: 3020 – 3215 – 3220
• Recommended KV motor: 900-1000 KV
• Recommended battery weight: 350-420 grams
• Recommended ESC: 60 (70-80A is required only for hard 3D flight with temperatures above 30°C)
• Tail rotor ratio 4:1
• 8mm main shaft
• 5mm tail shaft

Kit Includes:

• 1 Motor Pulley 20T.

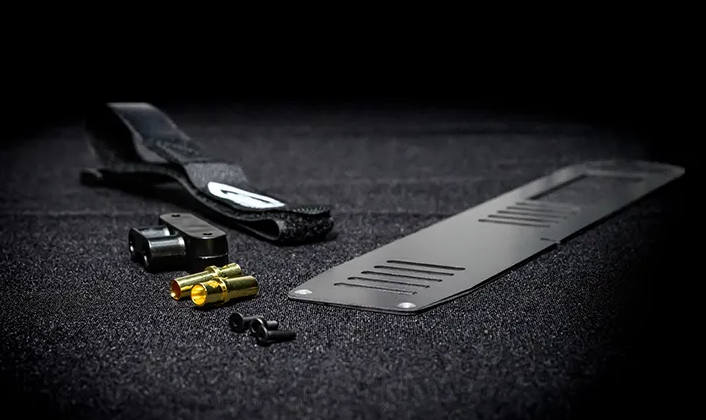

• 1 Battery Tray with straps and connectors.
• 420mm Main Blades.
• 70mm Tail Blades.

Recommended Components

• Motor: Scorpion HK5 3220-955, Xnova Tareq Edition 3215-925, Xnova Lightning 3220-950
• ESC: Scorpion Tribunus III 06-80
• 3x Micro Cyclic Servos: KST X12-508 HV
• Mini Tail Servo: KST DS565X HV or KST MS565 HV
• Battery:
  • Gens ace 2800mAH 60C 6S1P
  • Gens ace 2500mAh 80C 6S1P
  • SLS XTRON 2200mAH 60C 6S1P

Downloads

• SAB Mini GENESIS SG425 User Manual
