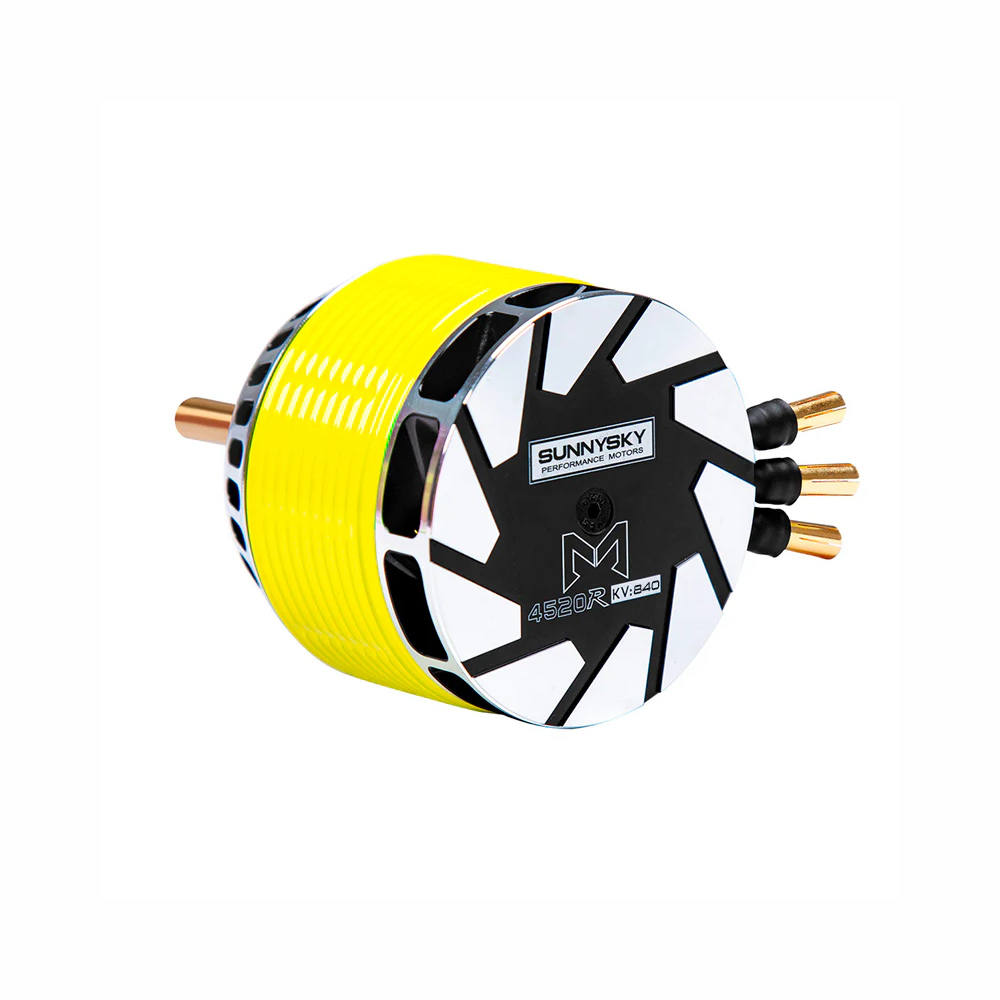

SunnySky M4520R 840kv Motor 550 Class 3600W (6S)

SunnySky M4520R 840kv Motor 550-600 Class 3600W (8S) OMP M6, Piuma, DNAMIC - Image 2

SunnySky M4520R 840kv Motor 550-600 Class 3600W (8S) OMP M6, Piuma, DNAMIC

Name: SunnySky M4520R 840kv Motor 550-600 Class 3600W (8S) OMP M6, Piuma, DNAMIC - OriginHobbies
SKU: M4520 KV840 Y-S
Price: 289.90 EUR
Availability: InStock

289.90 €

Only 2 left in stock

SKU: M4520 KV840 Y-S Categories: Motors, 550 Class Helicopter Motors, 600 / 700 Class Helicopter Motors, SunnySky Motors, OMPHobby M5 Spare Parts, OMPHobby M6 Spare Parts
GTIN: 680306450008
MPN: M4520 KV840 Y-S
Brand: OMPHobby, SunnySky

Description

SunnySky M4520R 840kv Motor is from the new line of SunnySky Master series M45 motors. This motor is designed specifically for 550 to 600 rotor blade sized helicopters. It can be used for carefully designed light weight 700 helicopter on 6S.

Alternate part#: OSHM6025

Specifications

Motor Kv	840KV RPM/Volt
Weight	393g
Motor Body Dimensions	56.3mm x 56.3mm
External Shaft Dimensions	6mm x 36mm
Continuous Current	95 Amps
Continuous Power	3200 Watts
Peak Current	115A
Peak Power	3600 Watts
Max Lipo Cell*	6s
Stator Diameter	45.5 mm
Stator Thickness	20 mm
No. of Stator Arms	12
No. of Stator Poles	10
Motor Wind	3+4 Turn Delta with thick wire
Mounting Holes and Screws	Φ30mm*4-M4
