La description

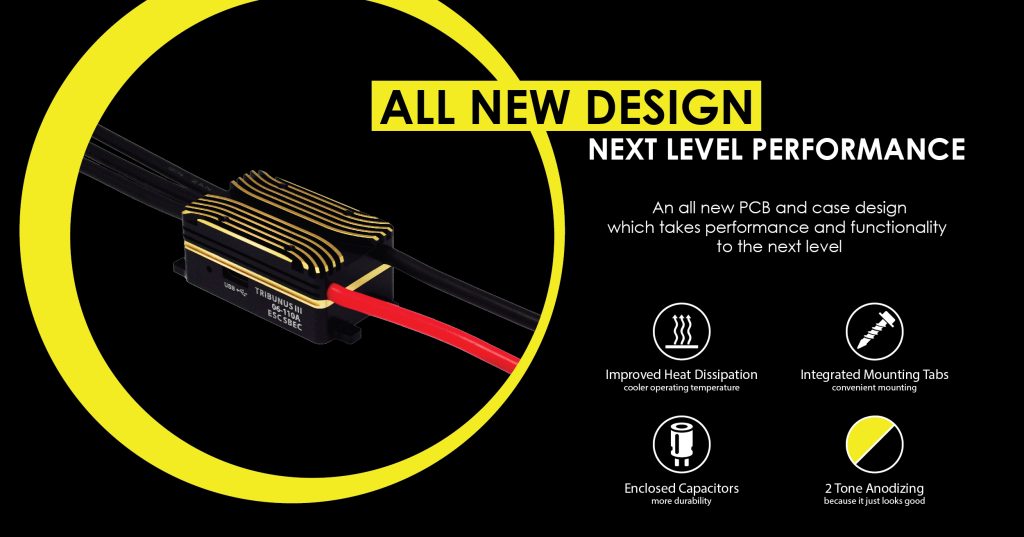

Scorpion Tribunus III series of ESCs come with all new PCB and case design which take performance and functionality to the next level. The Tribunus III comes with even more powerful BEC, active cooling fan control, more robust design and mounting pads.
Features
- High power BEC 5V to 12V adjustable. 10A Continuous, 20A peak
- USB Type-C programming port for PC and Android connectivity

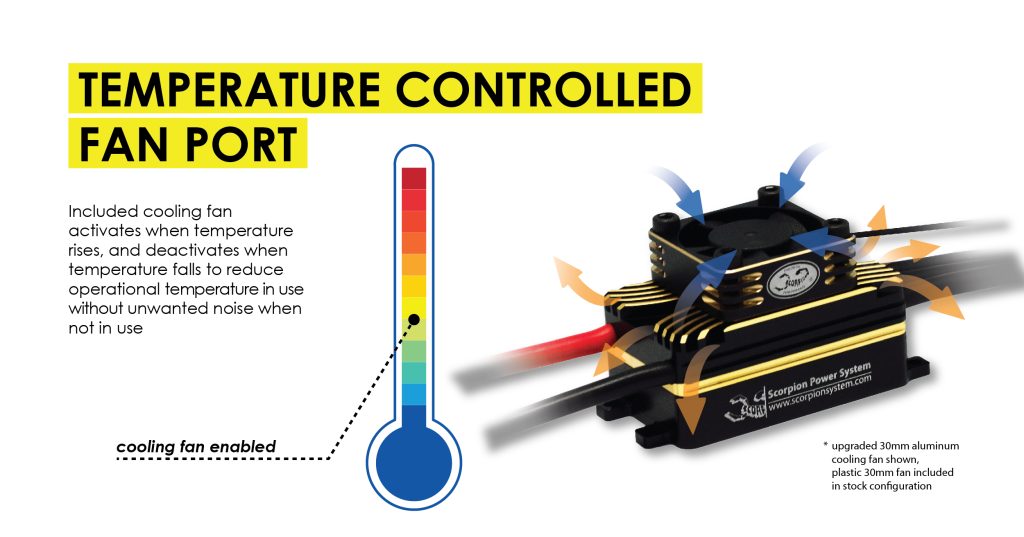

- Temperature controlled cooling fan for quieter operation
- Real time telemetry and data logging (Mikado, Futaba, Jeti, etc)
- Improved heat dissipation for cooler operation
- Integrated mounting pads for convenient mounting
- Enclosed capacitors for more durability
- 2 tone anodizing for better looks
Caractéristiques
| Max Continuous Current | 110 Amps |
| Peak Current | 150 Amps |
| Operating Voltage Range | 11-26.1 Volts |
| BEC Output voltage: | 5.1V to 12.1V adjustable |
| Max Continuous BEC Output | 10 Amps @ 8.1 V |
| Peak BEC Output | 20 Amps/1s @ 8.1 V |
| On Resistance | 0.45mohms * 2 |
| ESC Body Size | 32.0 x 52.5 x 23.1 mm (1.26 x 2.07 x 0.91 in) |
| Mounting Tab Dimensions | 16.0 (Battery Side) / 24.0mm (Phase side) x 58.0mm ( 0.63 / 0.94 x 2.28 in) / M2.5 Bolt |
| Weight (Without Connectors) | 105g ( 3.70oz) |
| Drive frequency | 8kHz – 32kHz |

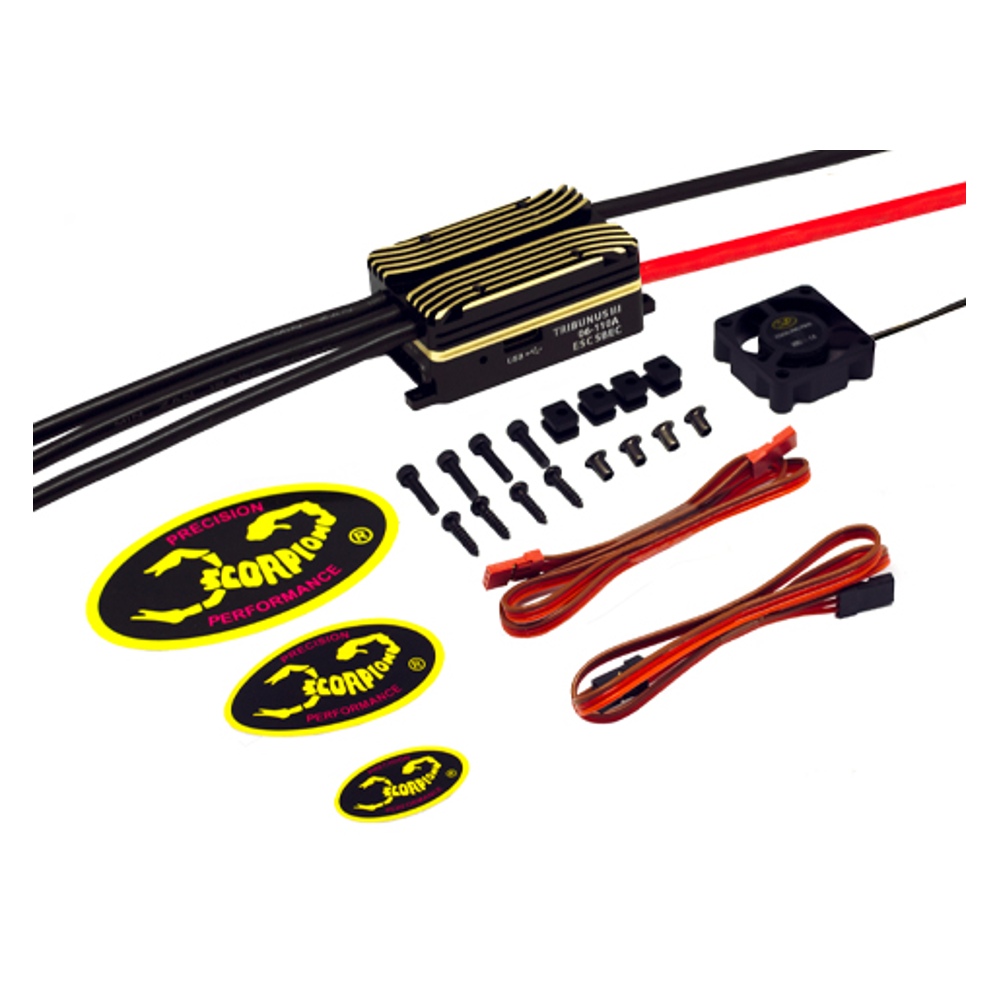

Included in the Box
1 x Tribunus III ESC
1 x 30mm Cooling Fan
2 x BEC Cables
Weight including packaging
156g
Téléchargements
Dimensions
EN
FI
SV
DA
DE
FR
Jaakko Menander (client confirmé) –
Integrated Futaba SBus telemetry is a great plus!
