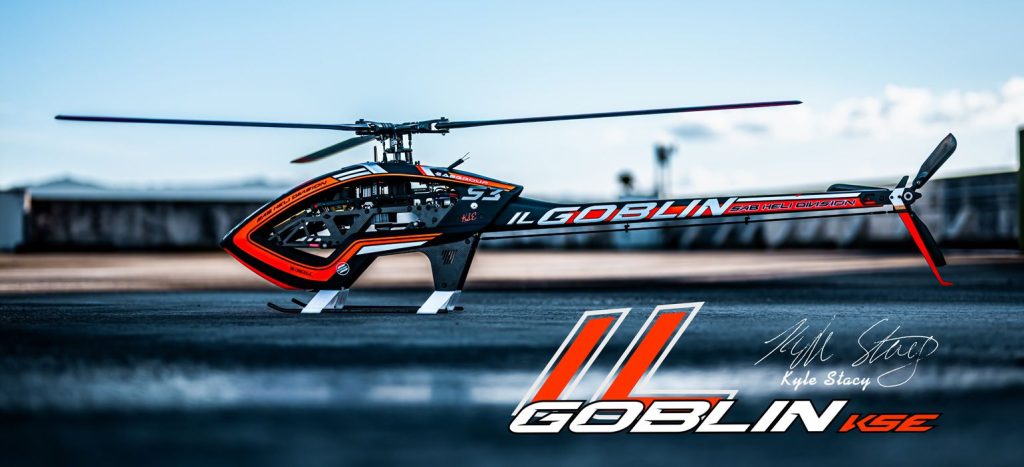

SAB The iL Goblin Pro KSE elevates 3-blade flying to a whole new level. With a more robust transmission case, redesigned tail rotor, upgraded head design, and the cutting-edge S682mm blades, it sets the standard as the strongest and most precise 3-blade helicopter available. Its striking orange carbon fiber scheme adds a distinctive touch, making it truly one of a kind.

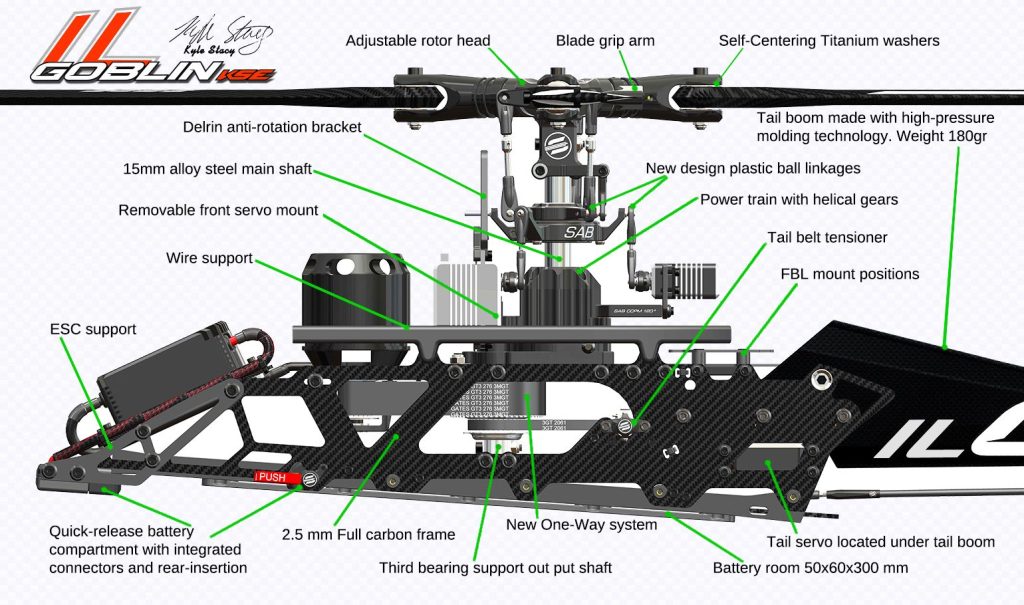

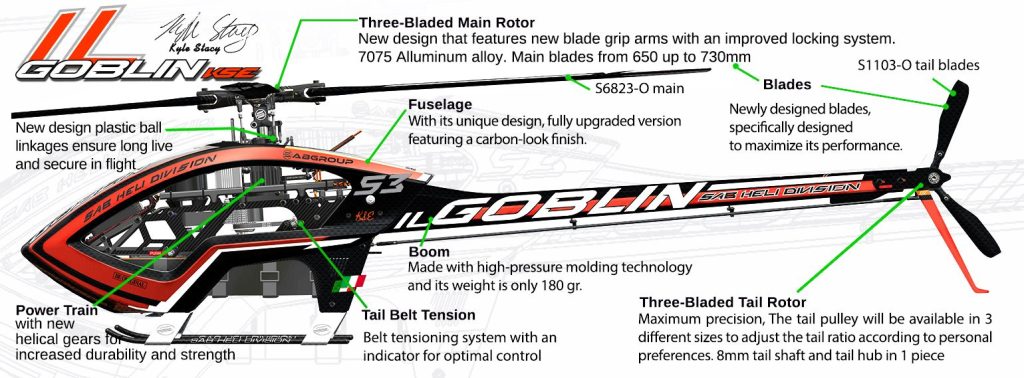

Features
15mm main shaft
The main shaft diameter has been increased to 15 mm for increased rigidity.
New gear box
The new gearbox is lighter than previous models. New helical gears for increased durability and strength.

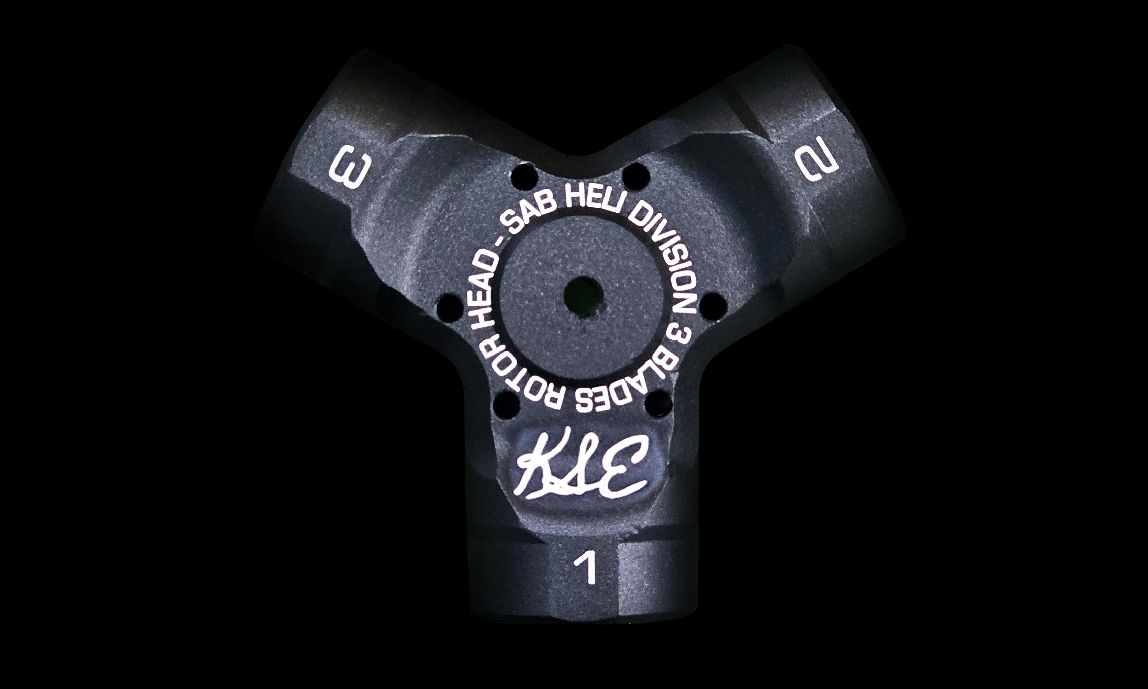

New design HPS3 center hub
The new HPS3 D15 center hub builds on the renowned SAB HPS3 system, featuring an updated design expertly optimized by Kyle Stacy for enhanced performance and aesthetics.
New design HPS3 center hub
Using the trust worthy spindle shaft that SAB been using on all 3 blades models, never an issue.

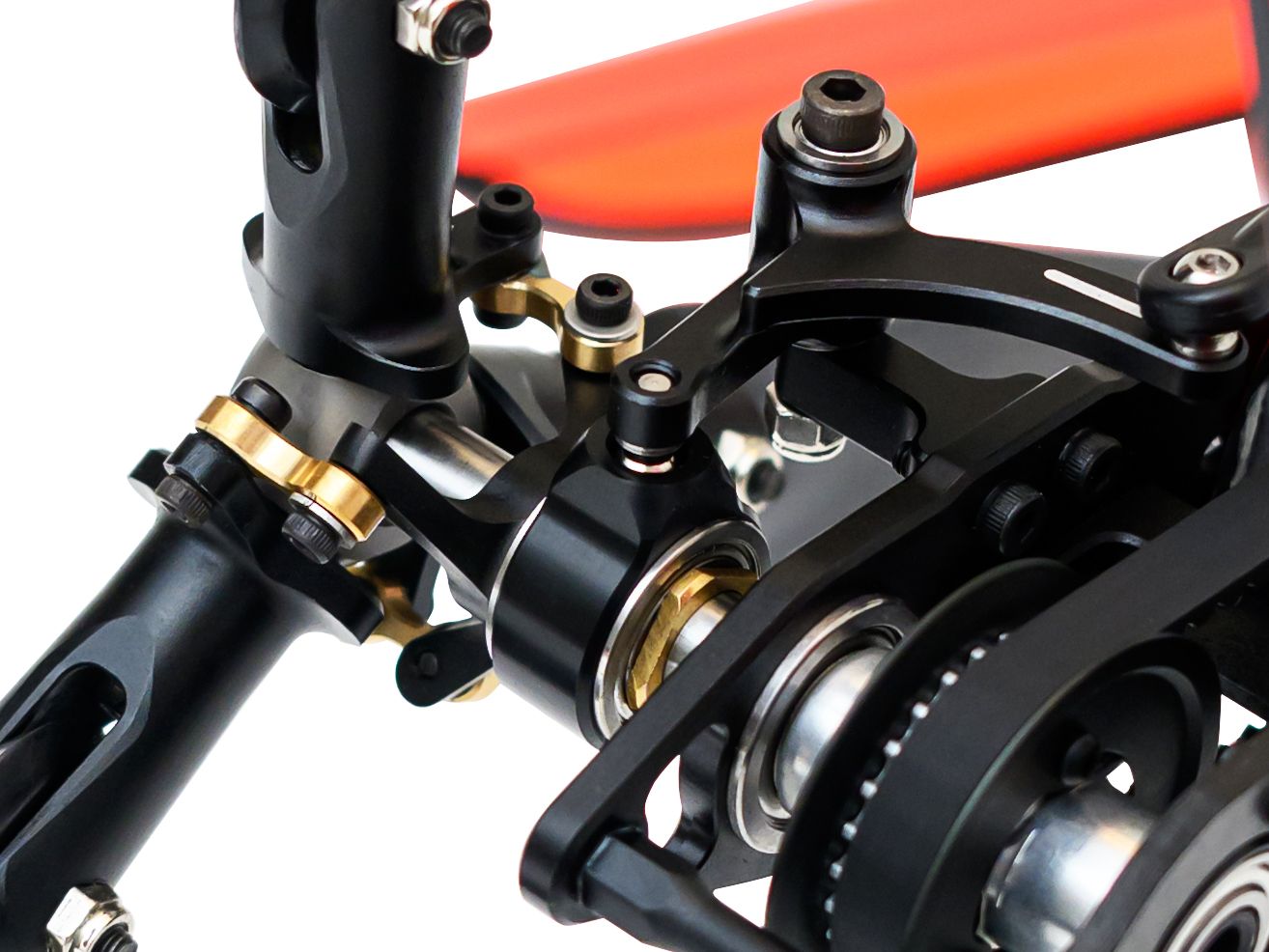

HPS3 tail system with 8mm tail shaft
Maximize the tail authority even at very low head speed
S1103-O tail blades
The tail blades using now is 110mm- 3 blades, with newest profile design which make the tail more silent
Special painting scheme canopy and boom
ILGOBLIN PRO KSE boom and canopy in very special painting scheme in Orange, which make the model very unique and super visible

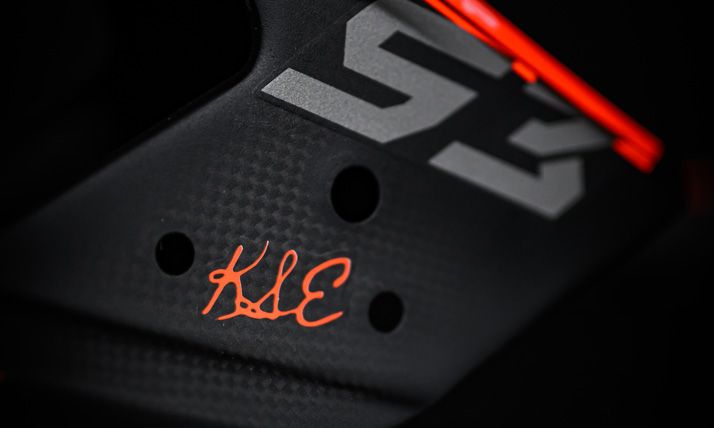

Carbon fiber all around
Canopy and boom is made with very high grade Carbon Fiber, which helps to reduce weight but more strength.

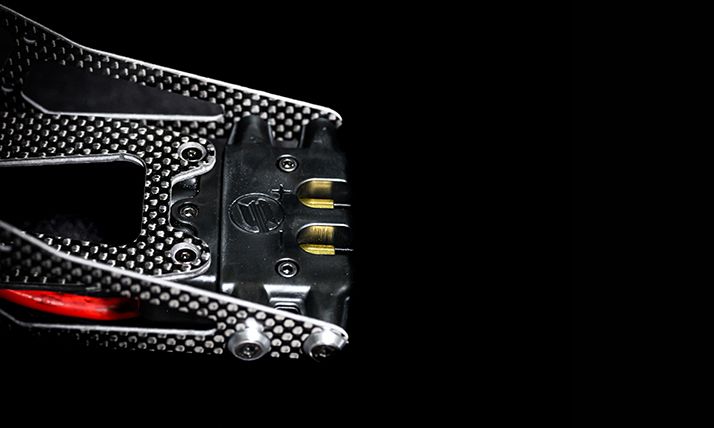

Quick connect battery
With its unique design, you do not have to remove the canopy to change the batteries, they can be inserted from the rear with integrated connectors.
Self center titanium blades washers
Self-Centering Titanium washers that ensure automatic centering for greater precision.
Tekniset tiedot
- AIRFRAME weight: 2272 gr (no blades, no battery, no electronics)
- Main rotor diameter: 1560 mm (with 682 mm main blades)
- Main blades length: 682 mm (3 Blades)
- Tail rotor diameter: 296 mm (with 110 mm tail blades)
- Tail blades length: 110 mm (3 Blades)
- Cyclic Servos: Standard size 40 mm
- Tail Servo: Standard size 40 mm
- Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1)
- Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1)
- Main shaft: 15 mm, Tail shaft: 8 mm
- Molded carbon tail boom
- Typical motor: 12S, 480/560 KV
- Battery room: 50x60x300 mm
Kit Includes:
- 21T motor pulley (other pulley sizes available).
- 2 battery trays with integrated connectors.
- S6823-O Orange (682 mm main blades).
- S1103-O Orange (110 mm tail blades).
Recommended Components
- Moottori: Scorpion HK5-5024-535kV
- ESC: Scorpion Tribunus III 14-220A HV
- 3x Cyclic Servos: KST BLS915 V8 HV
- Tail Servo: KST BLS905X V2 HV
- Akku:
