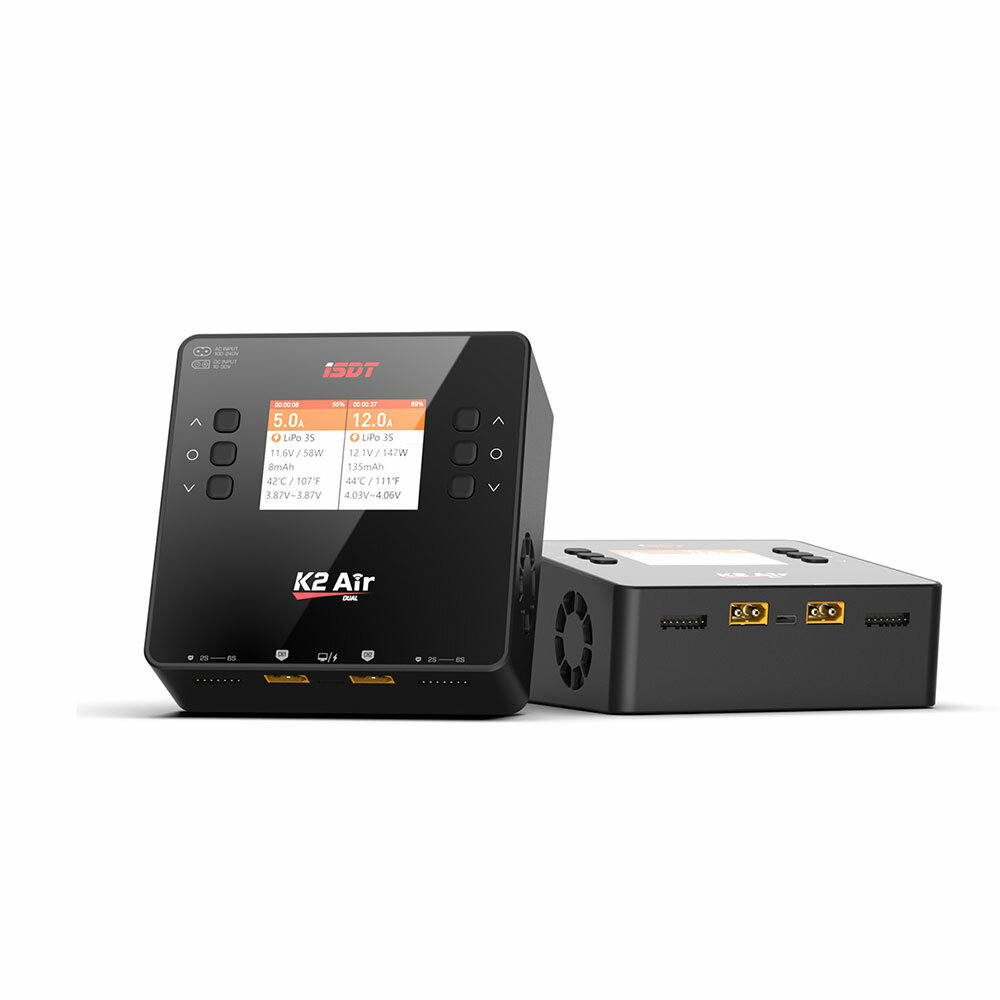

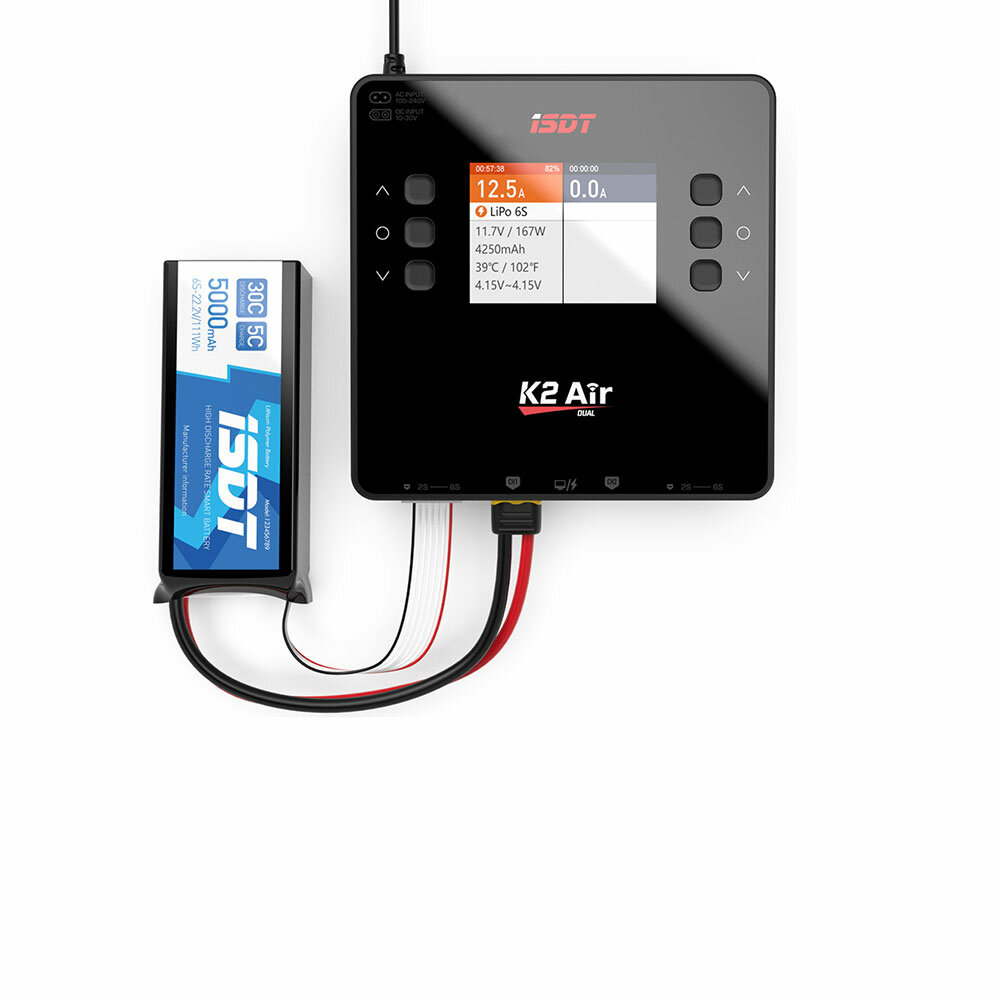

ISDT K2 Air Dual Channel Battery charger 200W AC / 1000W DC

Kuvaus

The ISDT K2 Air charger is a Dual channel smart balance battery charger. It supports up to 200Watts of power with AC Input. With DC Input it can support 1000W (500Watts per channel). It can support charging current of up to 20A per channel.

Features

• Supports 152 National and Regional Languages
• Fool-proof input interface design
• Two-way USB interface
• 2.8” IPS Color LCD screen
• Dual Fast Charging
• AC/DC dual mode
• Parallel Charging

STRONG PERFORMANCE, HIGH-POWER DUAL-CHANNEL

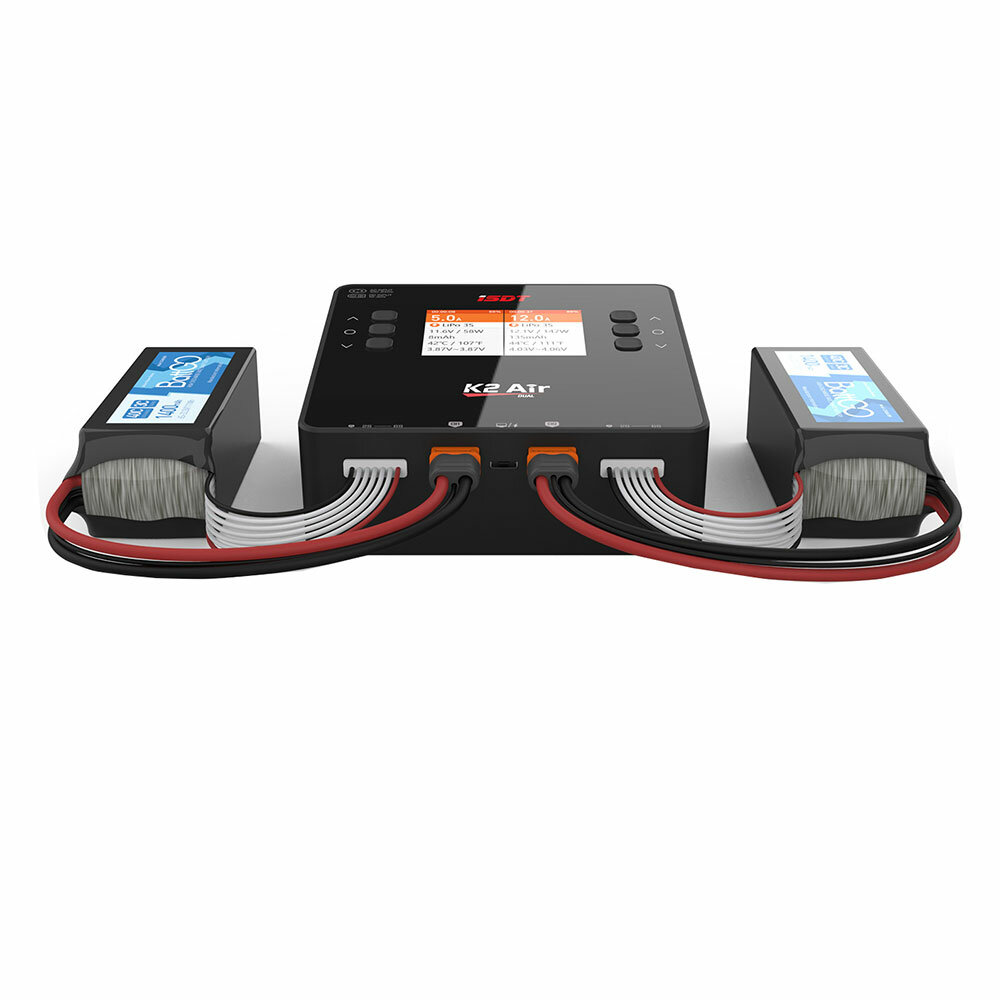

High-power dual-channel, the two channels are independent and do not interfere with each other. The maximum charging power of a single channel is up to 500W. A two-pronged approach, one step faster.

TWO-WAY USB INTERFACE

It can be connected to a computer through the USB Type-C interface to upgrade the firmware. It can also output 5V/2A power through the USB Type-C interface for charging mobile devices.

2.8” IPS Color LCD SCREEN

Low-power 2.8-inch Color IPS sunlight screen, 178° viewing angle, without fear of the field environment and tricky angles, the display effect is still clear and delicate under the sun.

AC/DC DUAL MODE

You can choose AC input or DC input to meet the needs of different scenarios. The output power in AC mode is 200W, and the output power in DC mode is 500Wx2.

SECURE ACCESS

Fool-proof input interface design. Through the clever arrangement, the DC input port and AC input port are mutually exclusive. Only one input method can be selected at the same time to ensure the safety of operation.

Tekniset tiedot

Input voltage:	AC 100~240V / DC 10~30V
Output voltage:	DC 1~30V
Max. input current:	DC 35A
Charging current:	0.2~20A x2
Discharging current:	0.2~1.5A x2
Balance current:	1.5A/Cell Max
Max. discharging power:	15W x2
Max. charging power:	AC 200W / DC 500W x2
Abnormal voltage alarm:	Tuki
Incorrect cell count setting alarm:	Tuki
Supported battery types and cell count:	LiFe, Lilon, LiPo 1~6S, LiHv 1-6S, Pb 1-12S, NiMH/Cd 1-16S
Parallel charging power and current:	800W/35A
Parallel discharge power and current:	30W/3A
Working temperature:	0~40℃
Storage temperature:	-20℃~60℃
Dimension:	135x135x64mm
Paino:	About 700g

Sisältää

• 1x iSDT K2 Air Smart Dual Charger AC200W / DC500W x2
• AC power cord (EU Plug)

Lataukset

• ISDT K2 User Manual
