AG01 color CNC Hall Gimbals Set for TX16S / Boxer (Red)

Beschreibung

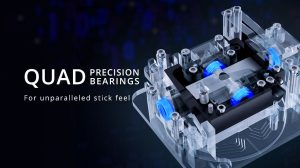

The AG01 CNC Hall Gimbals set is fully CNC milled for ultimate precision with quad ball bearings for a smooth and precise feel. Featuring front-accessible tension and travel adjustment for easy fine-tuning. The AG01 will take your TX16S / Boxer to the next level.

Designed and tested for over a year, the AG01 gimbals have been in development with our engineers and champion pro pilots such as MCK, Alex Campell, Noical, and Veysi.FPV, AZFPV, Xiao Zheng, and Long XL meet the demanding requirements of the world’s most competitive racing events.



The Red AG01 gimbals are shipped with preinstalled Sticky360 Gimbal Sticks Ends.

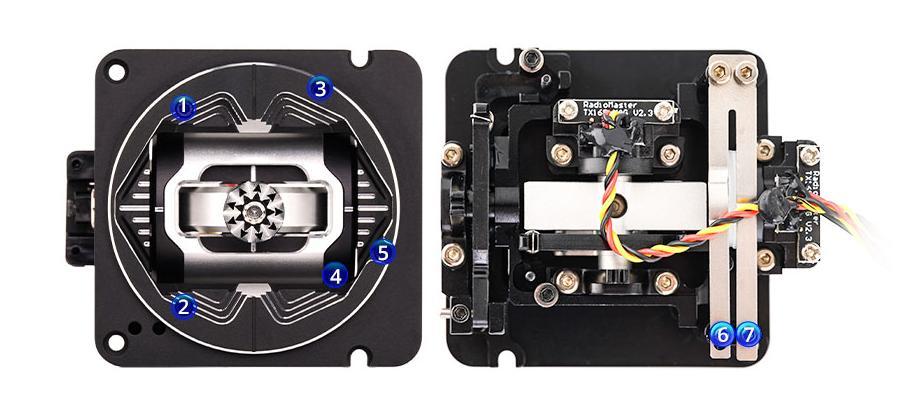

Fully Adjustable

• ① Sets the lower travel limit: Turn the screw clockwise to reduce the travel. Turn the screw counterclockwise to increase the travel. Travel range (38-54°)
• ② Sets the upper travel limit: Turn the screw clockwise to reduce the travel. Turn the screw counterclockwise to increase the travel. Travel range (38-54°)
• ③ Sets the Up and down spring tension: Turn the screw clockwise to increase the up and down spring tension. Turn the screw counterclockwise to reduce the up and down spring tension.
• ④ Centering and Mode adjustment: When the screw is turned clockwise to its lowest point, this gimbal will not center in its up and down axis when the stick is released. When the screw is turned counter-clockwise to its highest point, this gimbal will center its up and down axis when the stick is released.
• ⑤ Left and right spring tension: Turn the screw clockwise to increase the left and spring tension. Turn the screw counterclockwise to reduce the left and right spring tension.
• Throttle Friction and Ratchet adjustment: ⑥ screw adjusts the friction (loose or tight feel), ⑦ screw adjusts the Ratchet tightness.

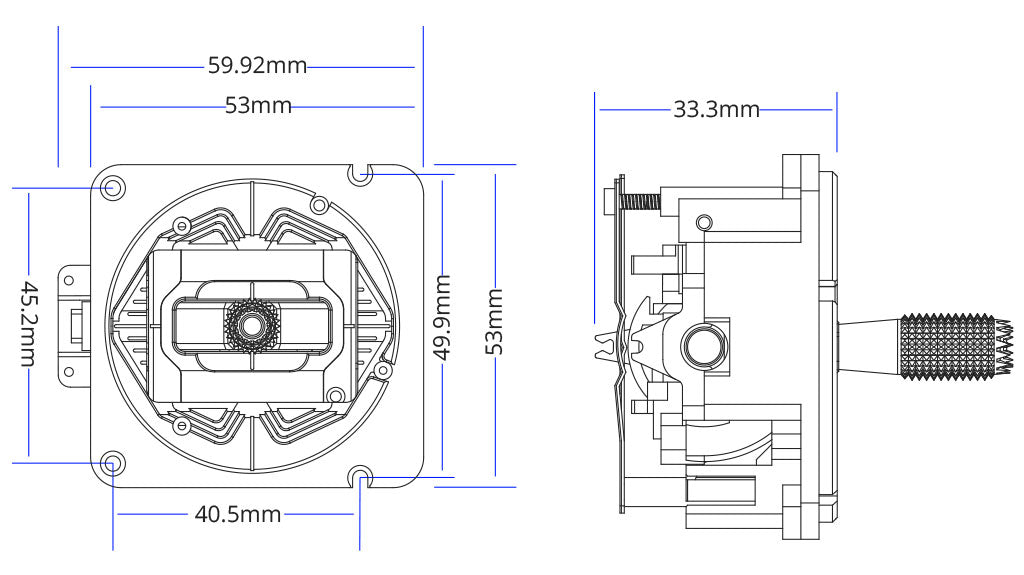

Size

Packaging



Inhalt:

• 1 * AG01 CNC Hall Gimbal (Throttle)
• 1 * AG01 CNC Hall Gimbal (Centering)
• 2 * TX16S Softer Tension Spring Set
• 2 * Hexagon socket screwdriver
• 1 * Instruction Manual
