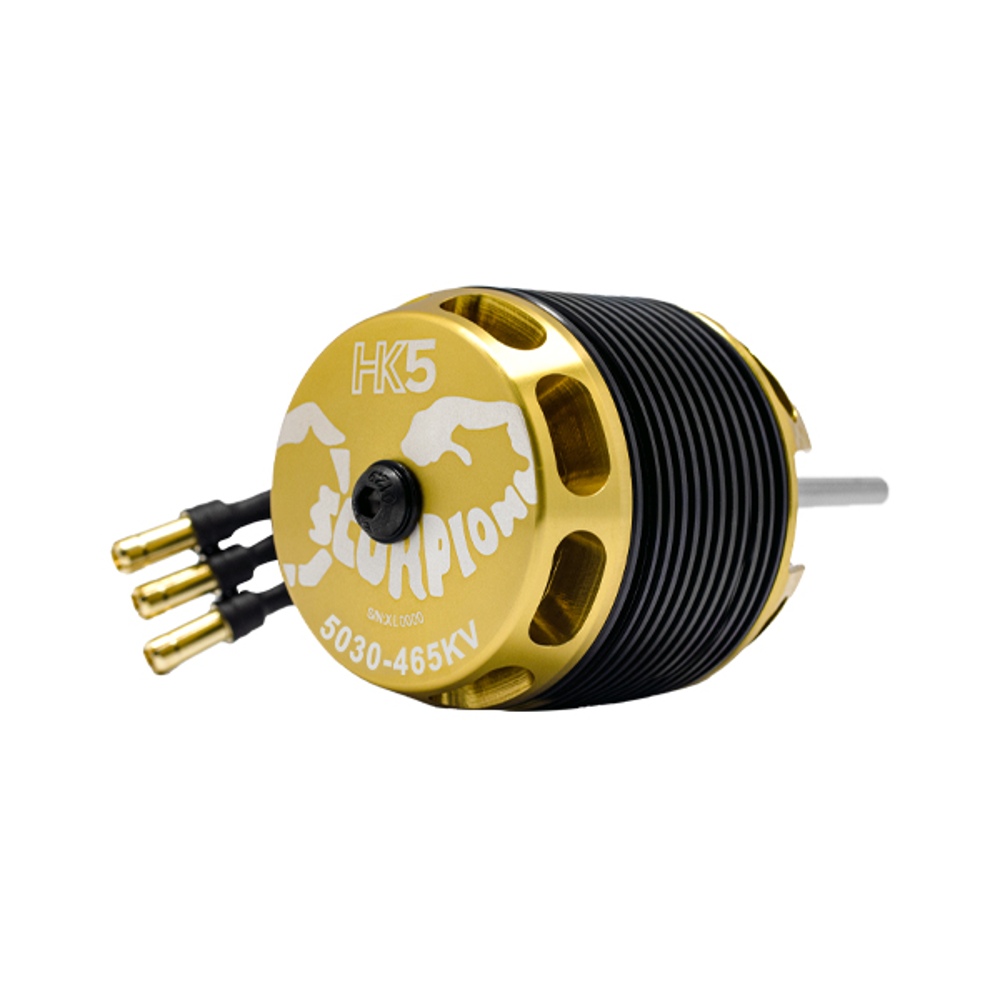

Scorpion HK5-5030-465kv Motor 700-800 Class 13000W (12S-14S)

Beschreibung

The HK5-5030-465kv Motor is designed primarily for 12s 800mm class 3D helicopters, or 12s operation with 700mm – 800mm UAV helicopter application.

We introduce the fifth generation of Scorpion’s renowned and award winning “HK – Series” motors. The Scorpion “HK5 – Series”

The HK5 Series lives up to and exceeds our standards of the most Powerful and Efficient motors, with market leading Torque per Amp capabilities. In addition, on the HK5 series we focused specifically on motor cooling and motor temperature. With an all new Internal Fan design, combined with our proven external centrifugal fan, we have nearly doubled the amount of airflow passing through the motor. The result is much improved cooling, and cooler operating temperatures.

Spezifikationen

Motor Kv	465KV RPM/Volt
Weight	734.0g Grams (25.89oz)
Motor Body Dimensions	62.8mm x 67.40mm (2.47″ x 2.65″)

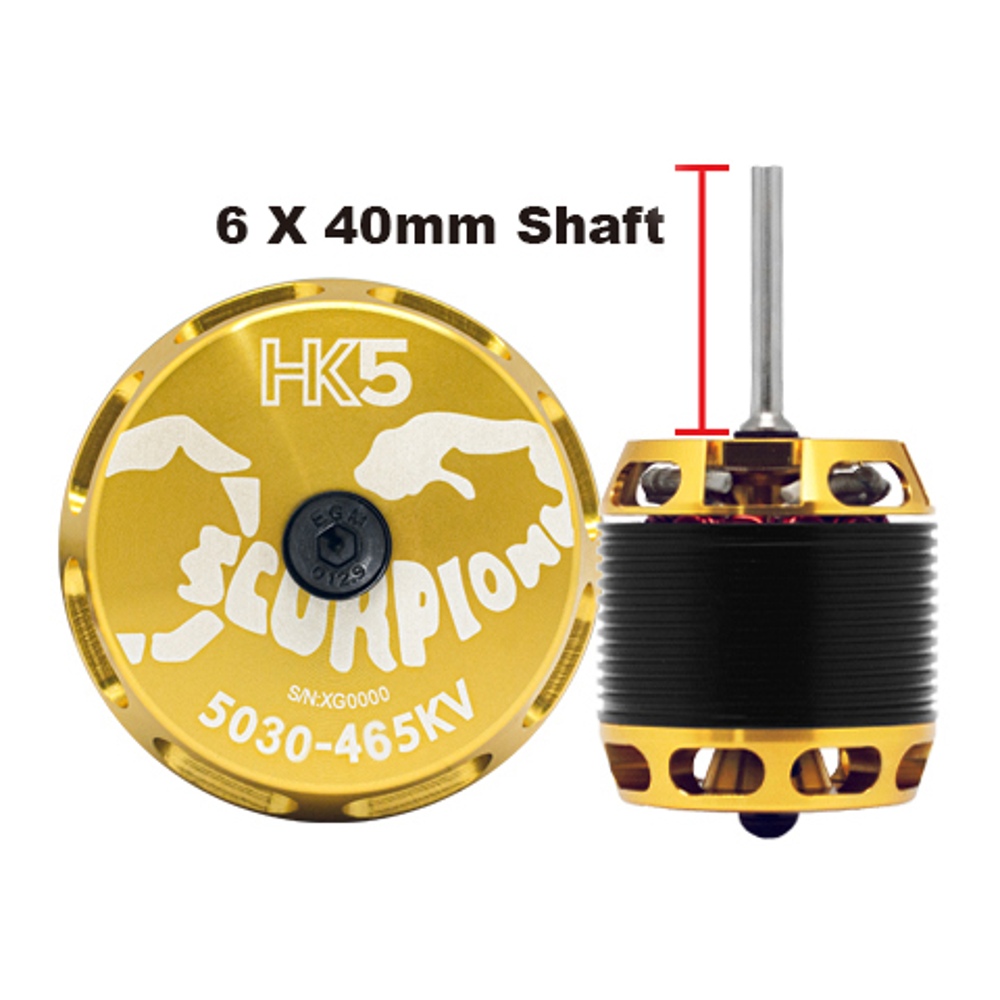

External Shaft Dimensions	5.98mm x 40mm (0.235″ x 1.57″)
Continuous Current	135 Amps
Continuous Power	7200 Watts
Peak Current	260A (2 seconds)
Peak Power	13000 Watts (2 seconds)
Max Lipo Cell*	12s – 14s
Stator Diameter	50 mm (1.97 in)
Stator Thickness	30 mm (1.18 in)
No. of Stator Arms	12
No. of Stator Poles	10
Motor Wind	5T 2Y
Motor Wire	1.6mm
*Higher Cell Count possible with appropriate gear ratio adjustment

Included in the Box

1 X HK5-5024 BLDC Motor
3 x 6mm Female Bullet Connectors
3 x Heat Shrink
1 x Accessory bag / Mounting Hardware

Weight including packaging

864g

Full Dimension
