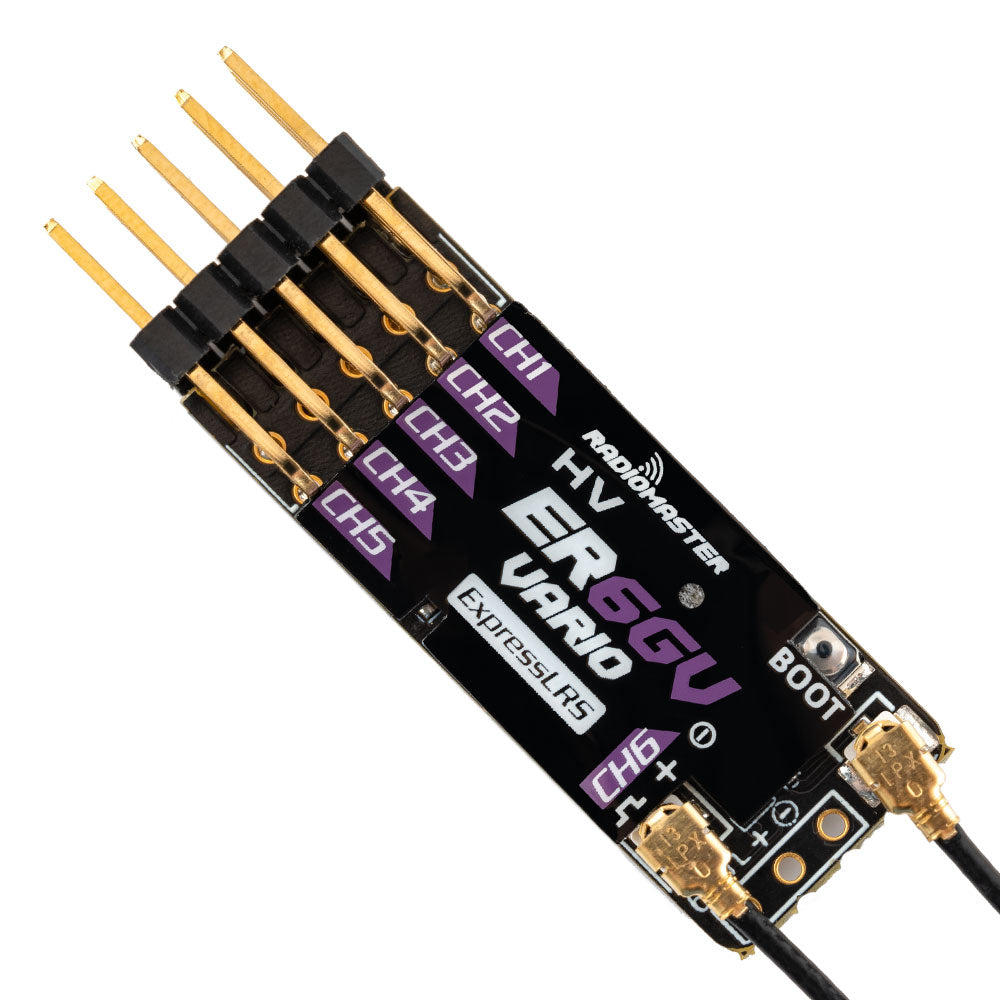

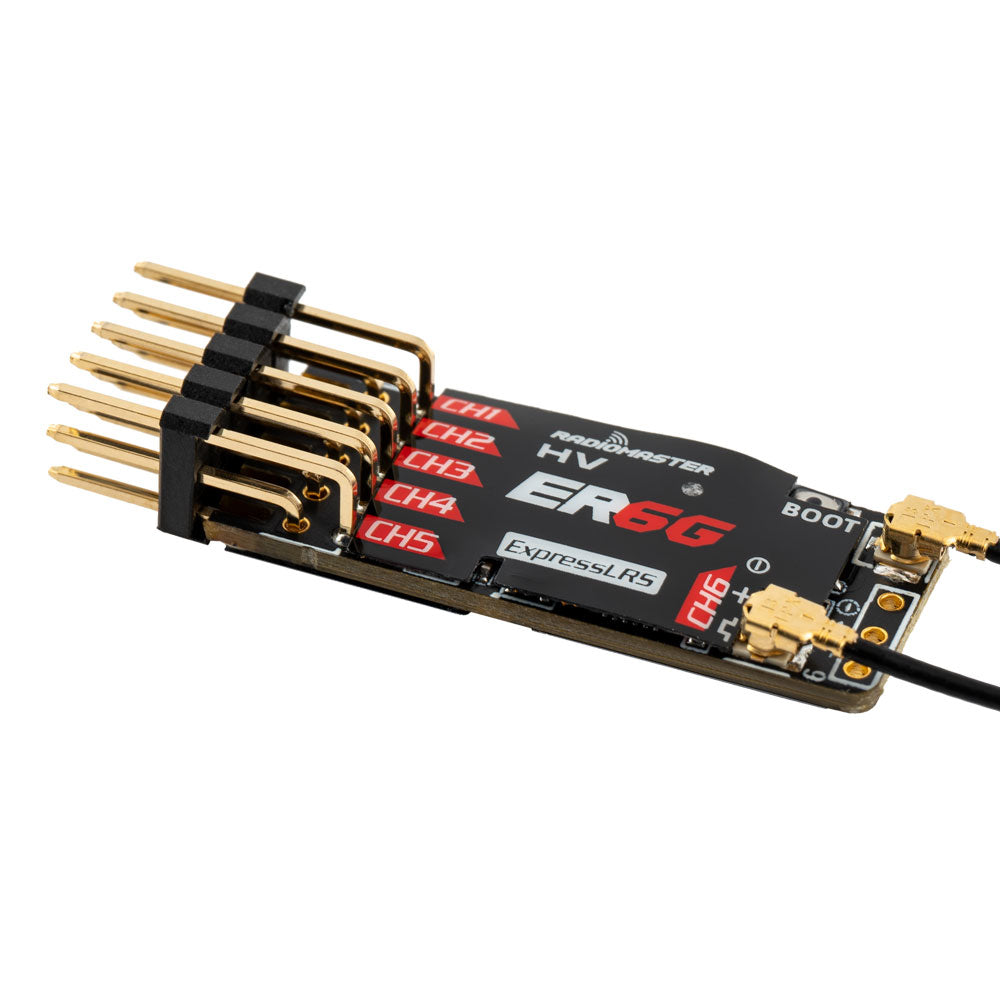

Radiomaster ER6G ER6GV 2.4GHz ELRS PWM Receiver Glider LBT

Beskrivelse

Radiomaster ER6G / ER6GV LBT receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. Both ER6G & ER6GV feature a dual-antenna with telemetry power up to 50mw and can work stably with a 1S Lipo receiver battery.

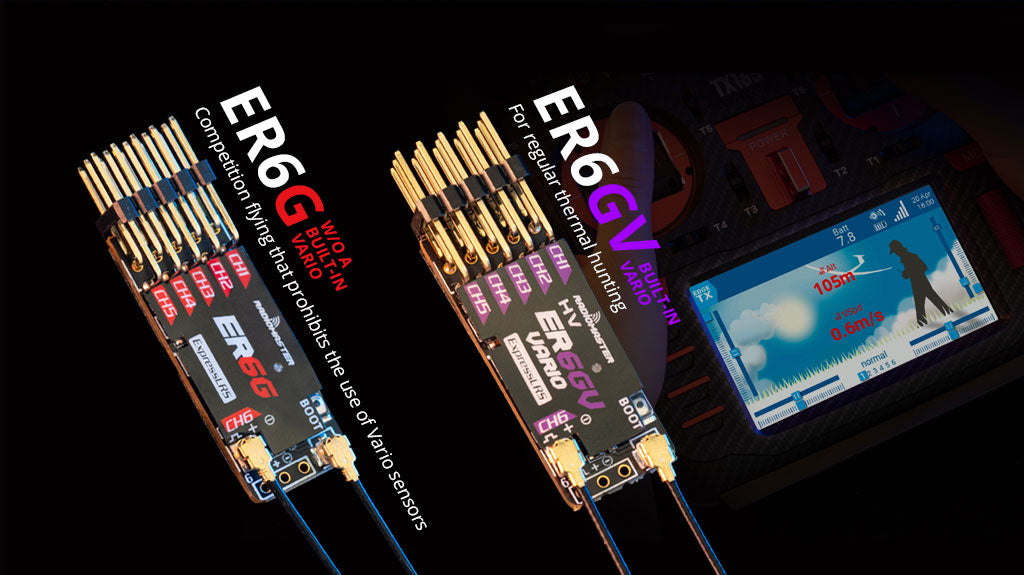

• ER6G LBT – No Vario (For competitions that prohibit Vario)
• ER6GV LBT – Includes Vario Sensor

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

Features

• For fixed-wing aircraft and gliders

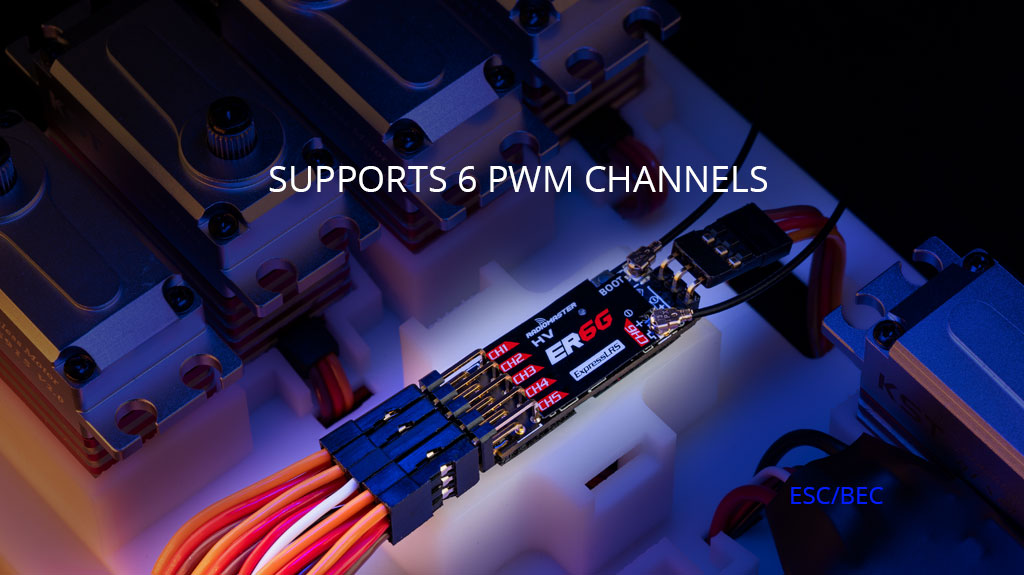

• Support 6 PWM Channels

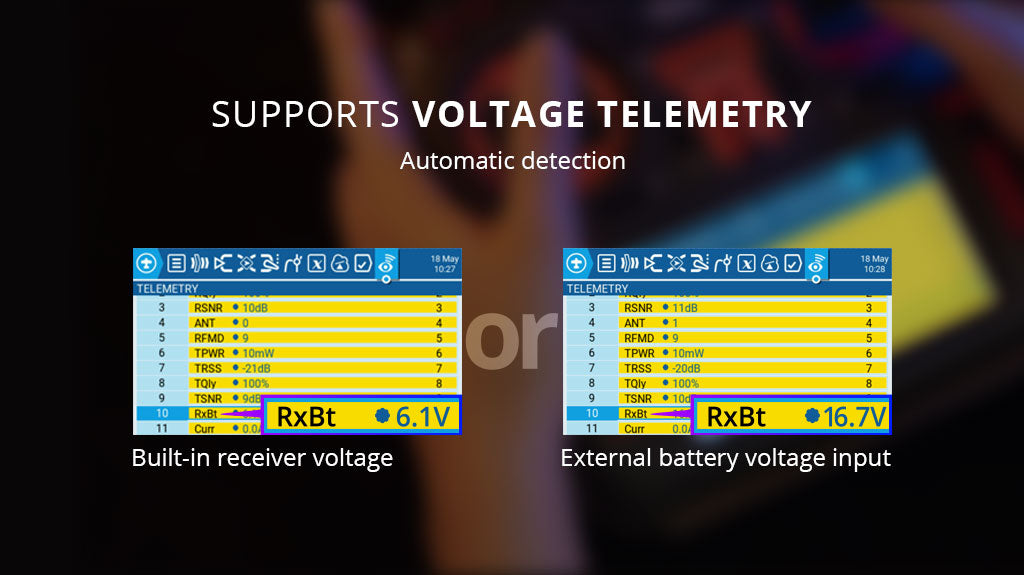

• Automatically voltage telemetry of external battery voltage or built-in receiver voltage

• ER6GV Receiver is built-in high-precision air pressure sensor (Vario)

• Supports Wi-Fi updates and WEBUI configuration

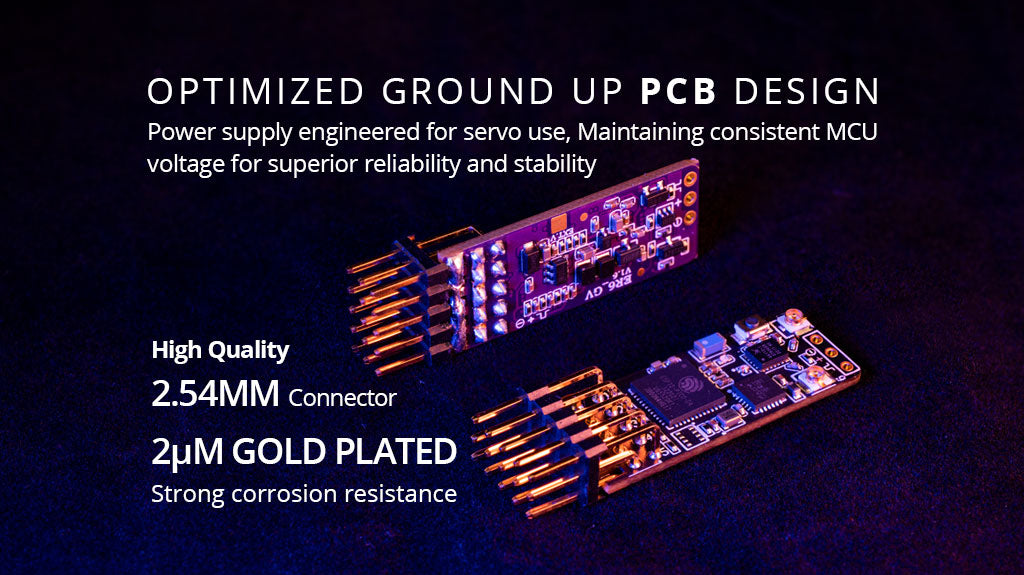

• Optimized ground up PCB design

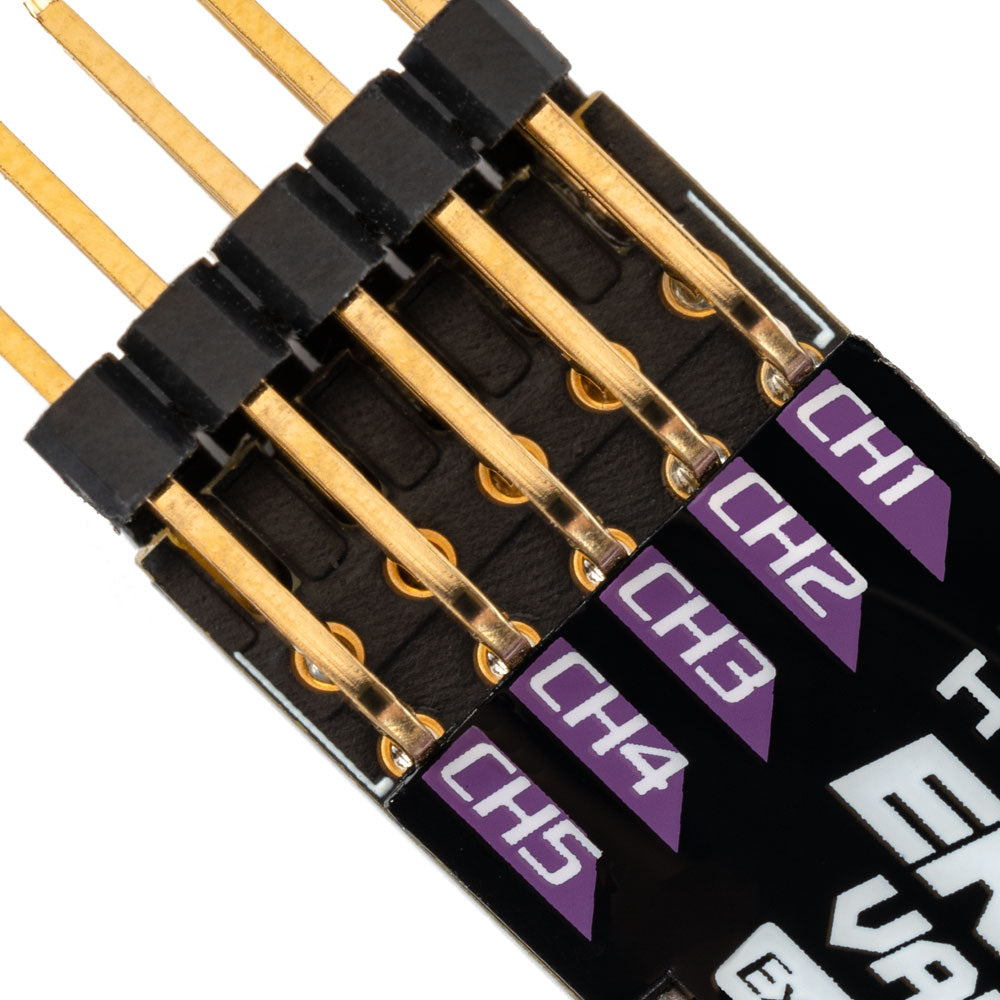

• High quality 2.54 mm connector

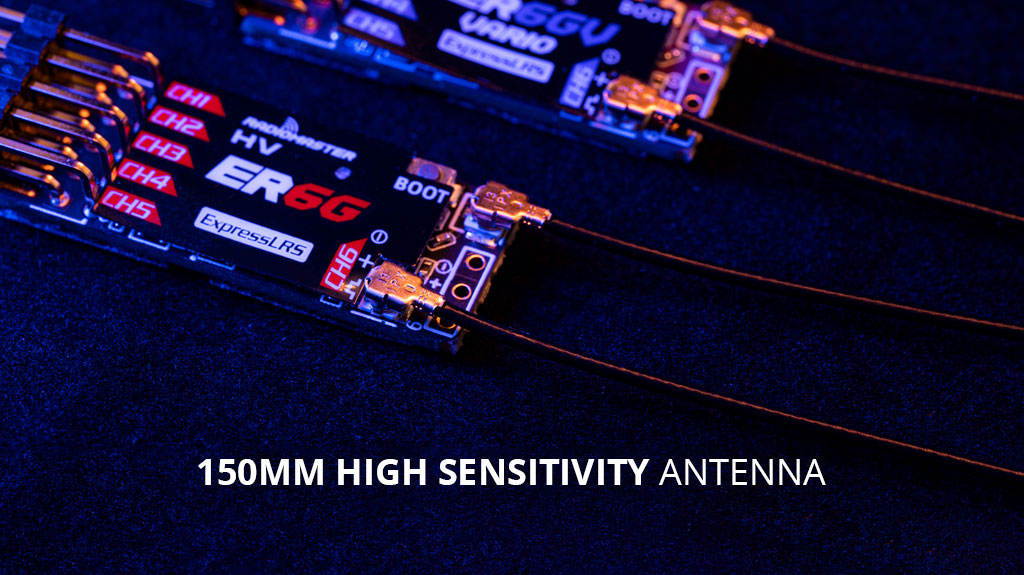

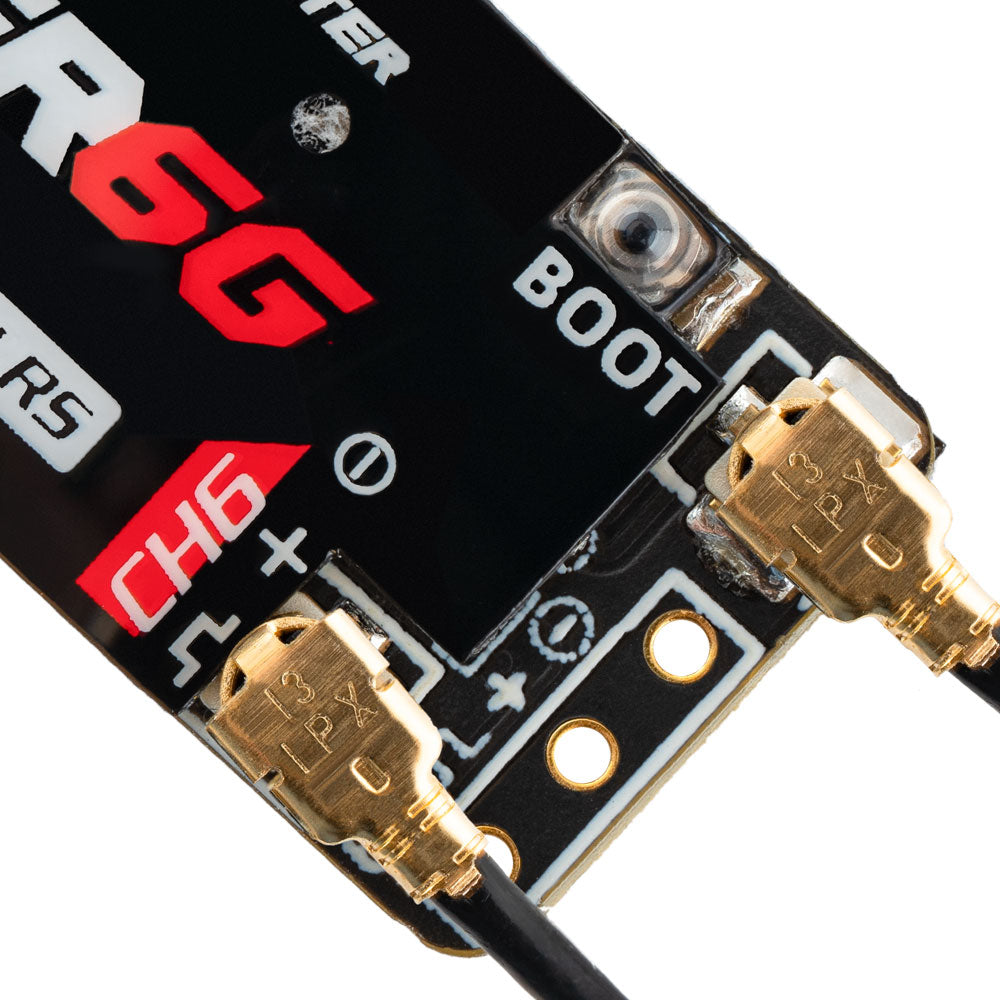

• Standard 15 cm High Sensitivity Antenna

• Based on the Revolutionary ExpressLRS System
• High performance, high reliability, flexible configuration, fast response speed and ultra-long range
• Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specifications (ER6G)

• Item: ER6G 2.4GHz ELRS PWM Receiver
• Power supply: DC 3.5 – 8.4V
• Antenna type: 15cm high sensitivity antenna
• Wireless protocol: ExpressLRS 3.3.0 pre-installed
• Output channel: 6CH PWM
• Telemetry power: maximum 50mw (LUA Adjustable)
• Battery voltage detection range: DC 3.0 – 26V
• Weight: 5.0 grams
• Dimensions: 42*13*8mm
• Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER6-G 2.4GHz Diversity+6xPWM RX

Specifications (ER6GV)

• Item: ER6GV 2.4GHz ELRS PWM Receiver
• Power supply: DC 3.5 – 8.4V
• Antenna type: 15cm high sensitivity antenna
• Wireless protocol: ExpressLRS 3.2 pre-installed
• Output channel: 6CH PWM
• Return power: maximum 50mw (LUA Adjustable)
• Built-in high-precision air pressure sensor (Vario)
• Battery voltage detection range: DC 3.0 – 26V
• Weight: 5.0 grams
• Dimensions: 42*13*8mm
• Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER6-GV 2.4GHz Diversity+6xPWM+Vario RX

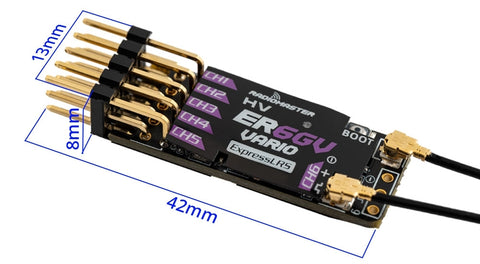

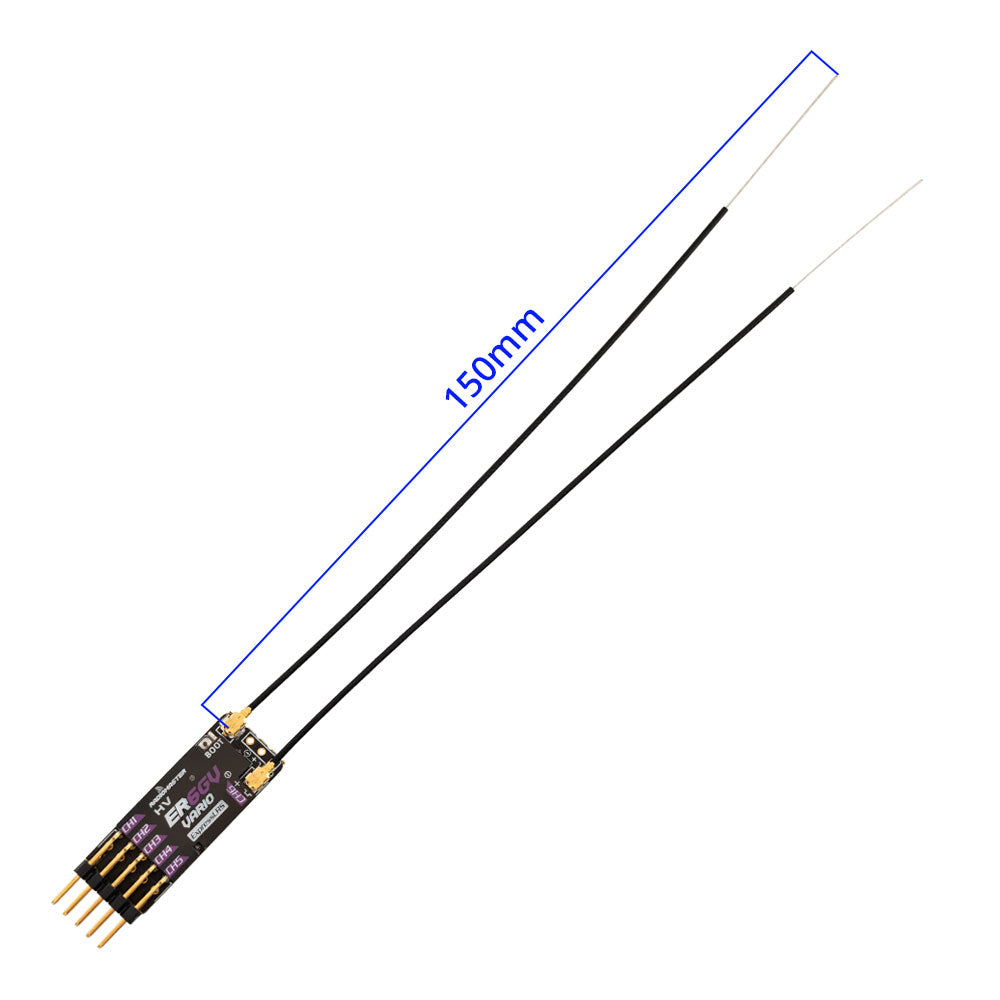

Size

Package Includes

• 1 * ER6G or ER6GV 2.4GHz ELRS PWM Receiver
• 1 * Voltage telemetry wire (Type-A)
• 2 * Heat-shrink tube
• 1 * User Card

Downloads

• ER6G User Manual
• ER6GV User Manual
