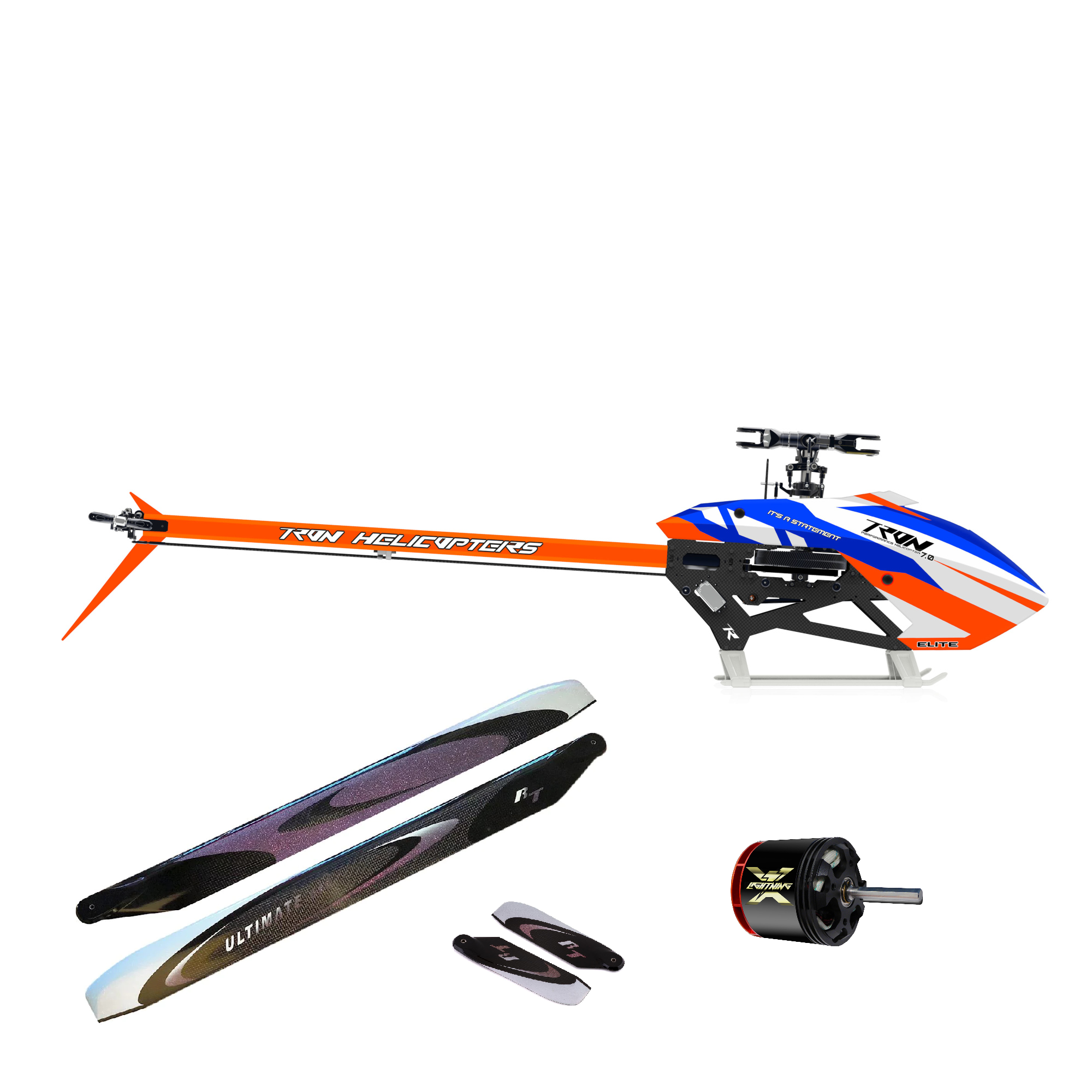

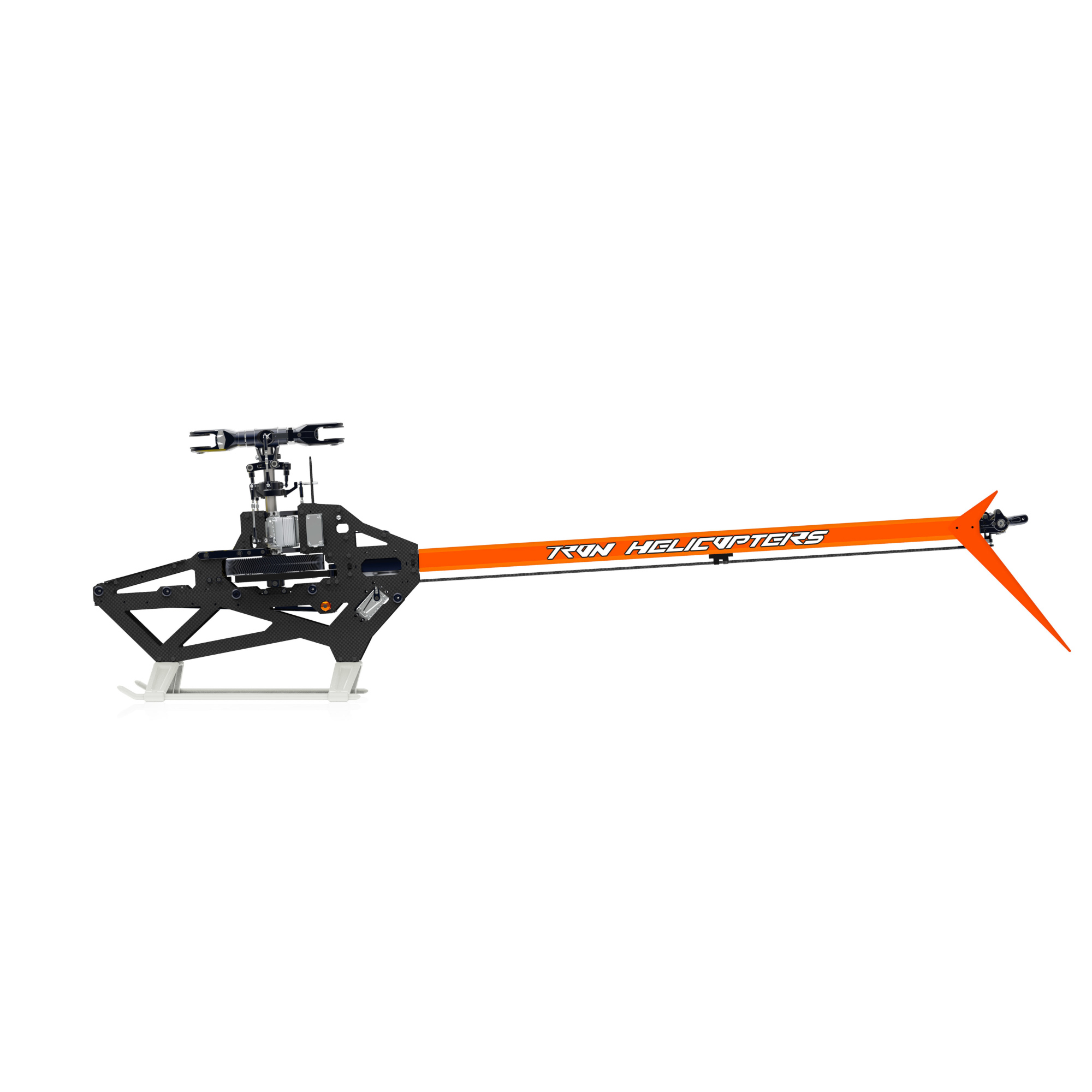

Tron 7.0 Elite Helicopter Combo

Beskrivning

Tron 7.0 ELITE is here — built to dominate. This isn’t just a machine. It’s a statement.“

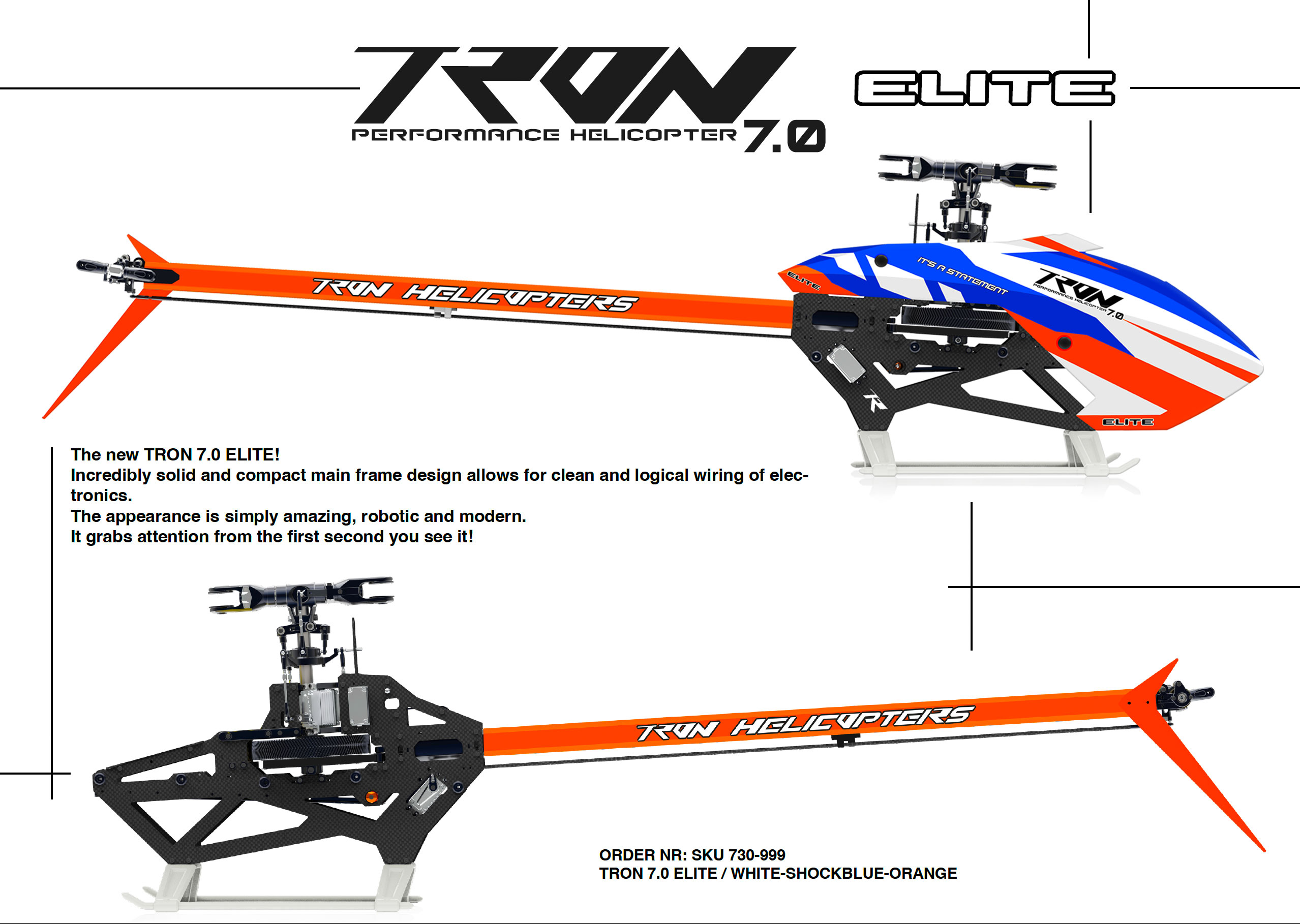

The new TRON 7.0 ELITE!
Incredibly solid and compact main frame design allows for clean and logical wiring of electronics.
The appearance is simply amazing, robotic and modern.
It grabs attention from the first second you see it!

Frame Layout

• New tail servo mounting position with aluminum adapters for full size servos
• Redesigned battery compartment layout allows for easier battery insertion and removal
• Higher boom mounting position for improved CG allowing for more axial rolling maneuvers
• Design incorporates additional room for electronics allowing for perfect fore/aft CG location

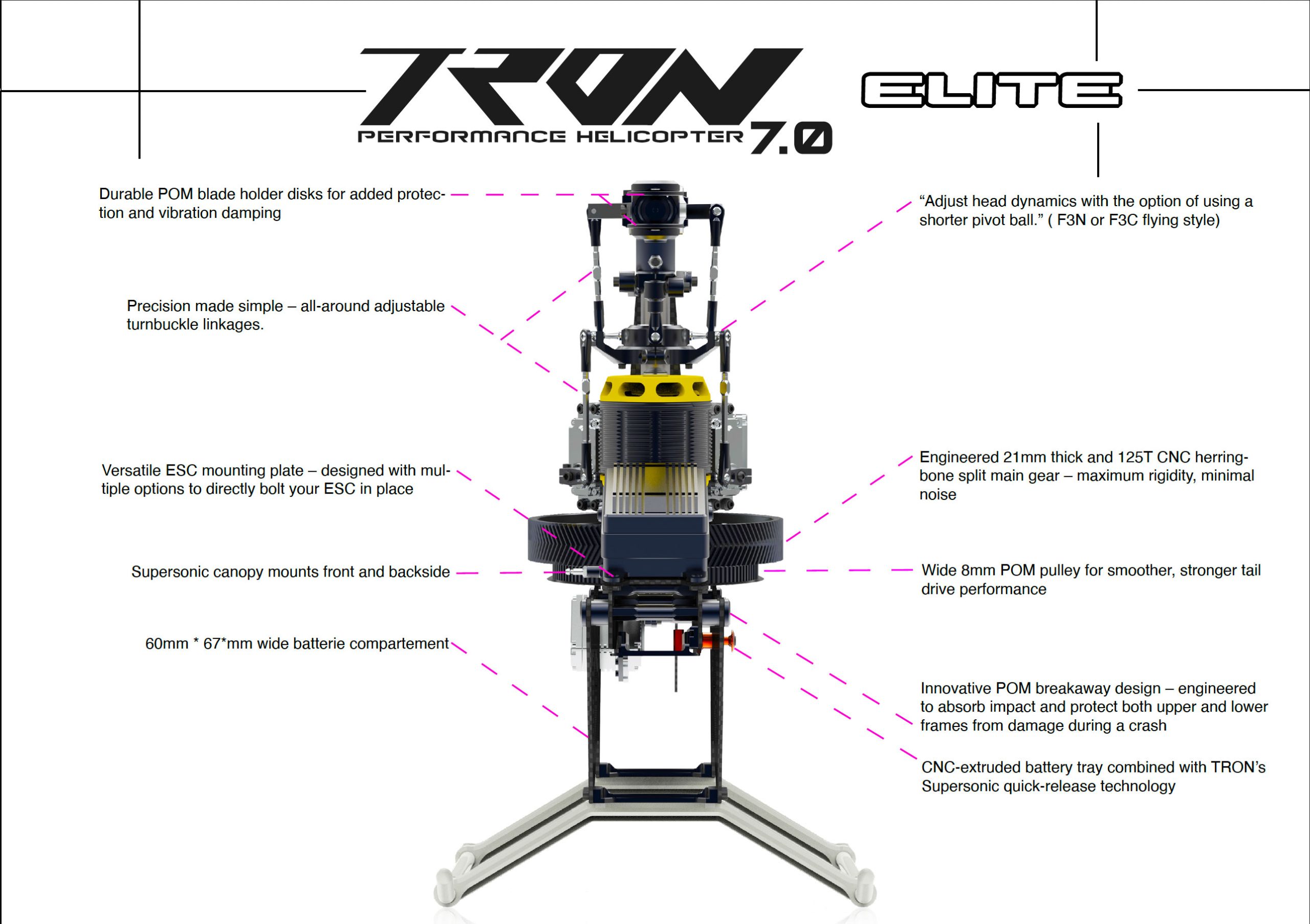

Details

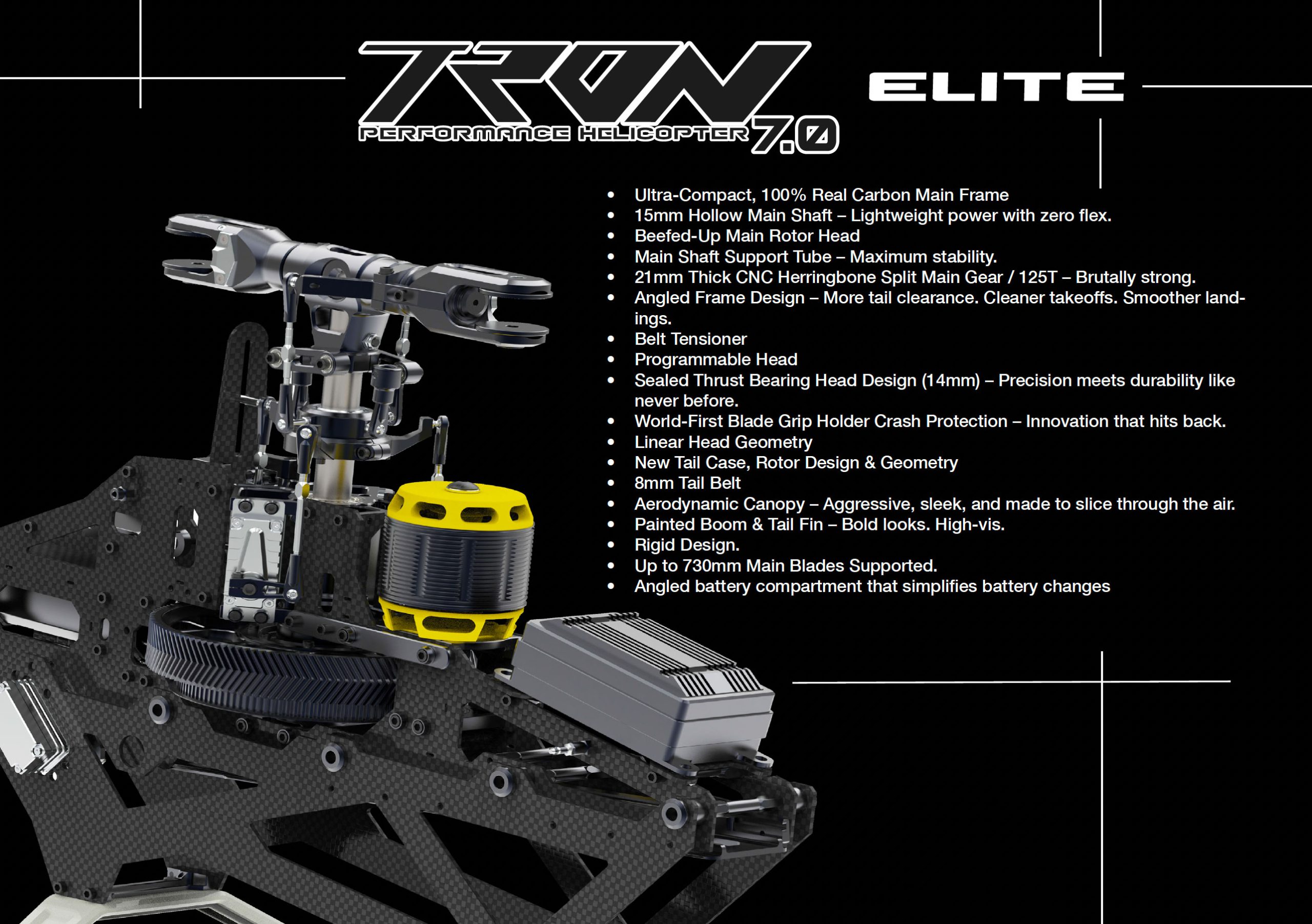

• Ultra-Compact, 100% Real Carbon Main Frame
• 15mm Hollow Main Shaft – Lightweight power with zero flflex.
• Beefed-Up Main Rotor Head
• Main Shaft Support Tube – Maximum stability.
• 21mm Thick CNC Herringbone Split Main Gear / 125T – Brutally strong.
• Angled Frame Design – More tail clearance. Cleaner takeoffffs. Smoother landings.
• Belt Tensioner
• Programmable Head
• Sealed Thrust Bearing Head Design (14mm) – Precision meets durability like never before.
• World-First Blade Grip Holder Crash Protection – Innovation that hits back.
• Linear Head Geometry
• New Tail Case, Rotor Design & Geometry
• 8mm Tail Belt
• Aerodynamic Canopy – Aggressive, sleek, and made to slice through the air.
• Painted Boom & Tail Fin – Bold looks. High-vis.
• Rigid Design.
• Up to 730mm Main Blades Supported.
• Angled battery compartment that simplififies battery changes

Features

21mm CNC herringbone main gear (125T).

Extreme durable.
Quiet.
CNC Machined.

Extruded Aluminum Battery Tray

Safe and easy lock or unlock of the tray.
Great attention was paid to weight reduction in every detail.
Torsion resistance solid design.

Supersonic Canopy Mounts

Supersonic canopy mounts for backside and frontside are included in kit.
Locked and Secured in a second.

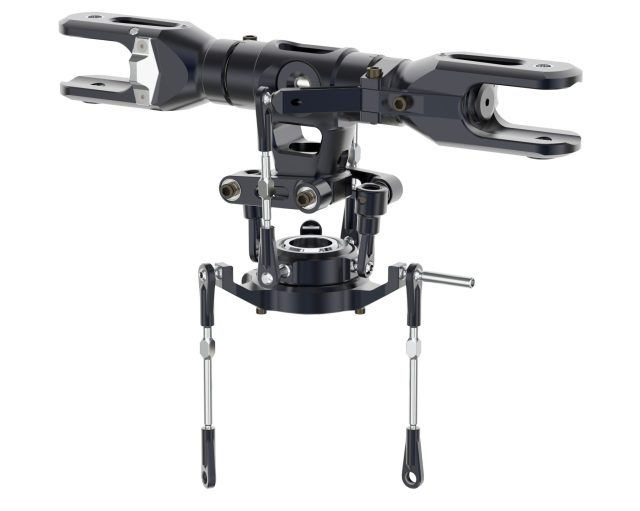

State of the Art Rotor Head

Made out of high grade aluminium.
Provides a ultra precise feeling at any headspeed.
Redesigned all metal swash plate, programmable to increase or decrease flight response.
Redesigned center hub and head dampeners.
New redesigned larger main blade grips

High Strength custom Screw

Stainless steel crash protector — prevents blade holder and thrust bearing
damage in hard impacts.
Precision stainless steel inlets deliver uncompromising
strength.
High Strength Custom Screw for maximum safety.

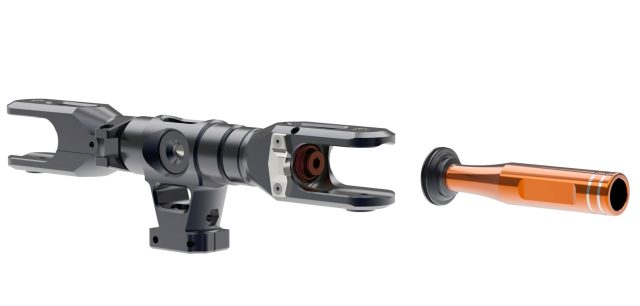

Easy-access lubrication ports

Easy-access lubrication ports, allowing the 14
mm thrust bearings to be greased with precision and sealed with a set screw.
POM seal cap to retain grease inside the thrust bearings.

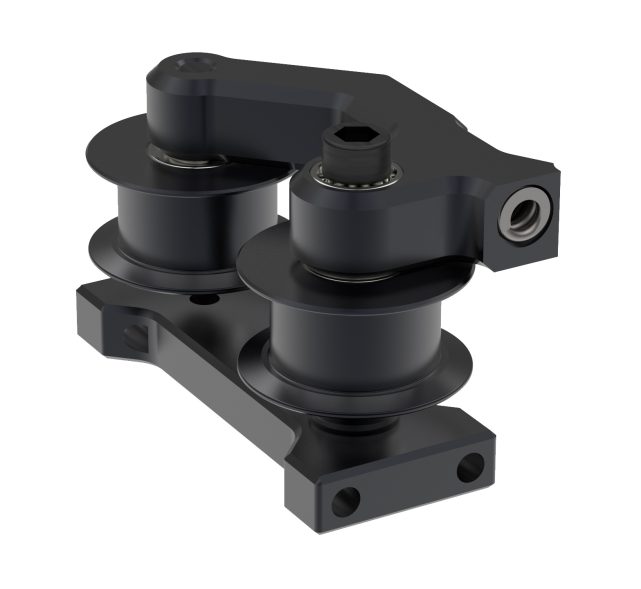

Belt tensioner

The Tron belt tensioner. 100% tail perfomance in any situation..

Belt tensioner

Once the tail belt tensioner is set, no further adjustments are required.
And the best? The tail response and performance has gotten even better!

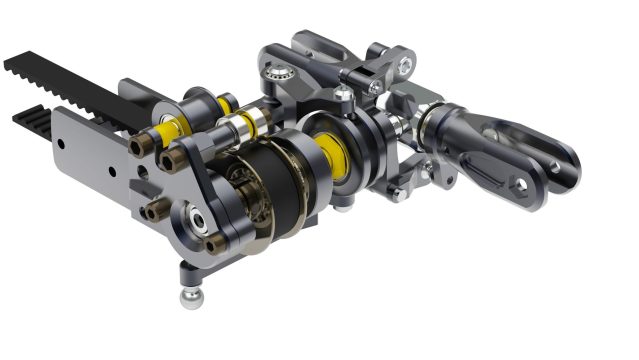

Full CNC precision tail rotor system

With an incredibly strong and durable tail drive unit, the Tron 7.0 ELITE provides an ultimate feel during any maneuver, while featuring unique design elements.

Simply style, also without a canopy

The Tron 7.0 ELITE  frame design allows for simplicity during assembly and maintenance. The servos, motor, ESC, and flybarless gyro are all easily accessible while maintaining incredible detail and elegance.

Specifikationer

• Height: 368 mm
• Width: 213 mm
• Length: 1396 mm
• Max. main blade length: 730 mm
• Max. tail blade length: 115 mm
• Battery compartment space: 60 × 67 mm (height)
• Main gear tooth count: 125T
• Motor pinions available: 13T / 14T / 15T / 16T / 17T (13T included in kit)
• Tail ratio: 5.16 (default)
• Dry weight: 2290 g (incl. battery tray and canopy)

Kit Includes:

• 13T/6mm motor pinion gear TR731-013 (other pinion gear sizes available)
• 1 battery tray

Recommended Components

• 4520 to 5050 size Motor
• 6S 180A to 12S 300A ESC
• 3 Full size cyclic servos
• 1 Full size tail servo
• Main Rotor Blade (700mm) Rotor Tech RT-700-U
• Tail Rotor Blade (106mm) Rotor Tech RT-106-U
• Batteri: 12S 5600mAh

Nedladdningar

• Tron 7.0 Elite User manual
