Beskrivning

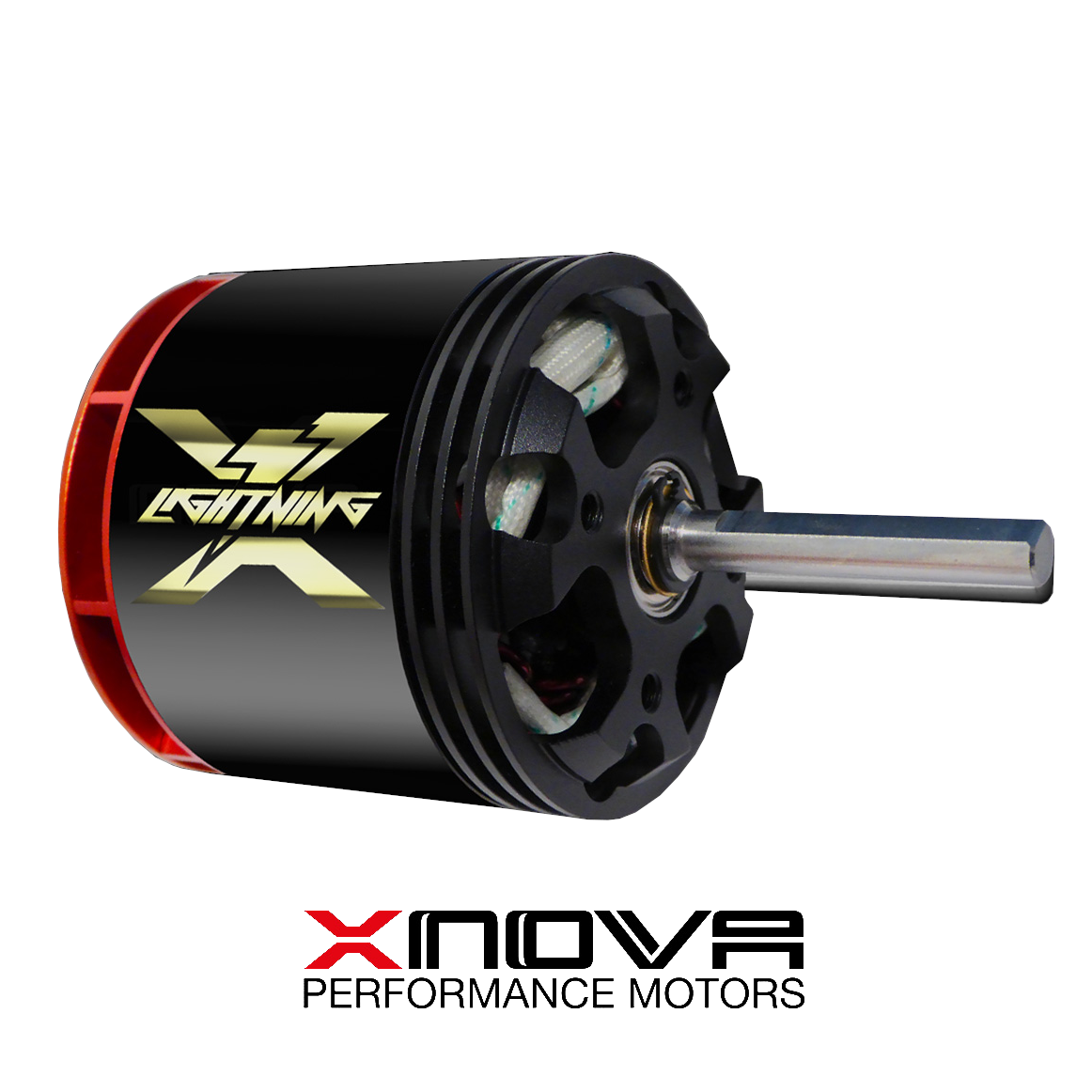

Xnova lightning 4025-1120KV high performance outrunner motor has been specially designed for designed for extreme 3D flying in 520-600mm helicopter where highest power to weight ratio is important. This B shaft type motor is recommended for 6S setup on SAB RAW 580 and RAW 700 Piuma.
The Xnova V3 lightning series is the highest level of motor performance money can buy nowadays.
Highlights
- Improved higher efficiency with thinner stator lamination, resulting in lower temperature.
- Optimized and unique design, hand wound to perfection
- Smooth running, low cogging torque.
- New type of higher degree magnets.
- All other features same as performance series.
Specifikationer
| Motor Kv | 1120KV RPM/Volt |
| Weight | 395g |
| Motor Body Dimensions (no shaft) | 49.5mm x 56.2mm |
| External Shaft Dimensions | 6mm x 28mm |
| Continuous Current | 110 Amps |
| Continuous Power | 3000 Watts |
| Peak Power | 4000 Watts (5 seconds) |
| Max Lipo Cell* | 6s |
| No. of Slots | 24 |
| No. of Poles | 8 |
| Motor Wind T | 1.5Y |
| Mounting Screws | 4*30*M4 |
