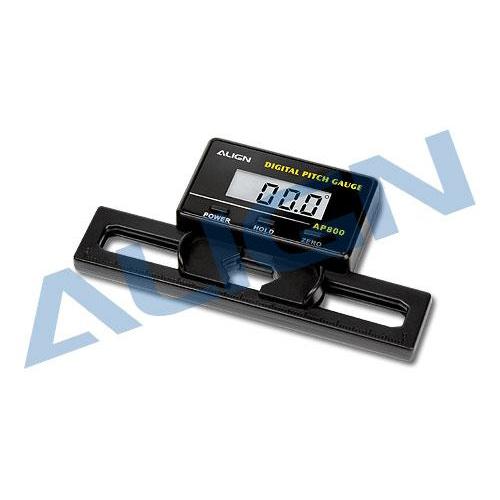

Align Digital Pitch Gauge AP800

Description

Align Digital Pitch Gauge AP800 is suitable for flybar and flybarless helicopters.
Auto-detecting Horizontal level, with result displayed through high contrast LCD screen, providing a simple and precise way of measuring pitch angle.

Features

• Auto-detecting Horizontal level
• Uses backlighting LCD monitor
• Zero and Lock function
• Detectable pitch range: -90°C ~ 90°C
• Automatic screen rotation
• Suitable for 200 ~ 800mm main blades
• Build-in energy saving function. Power shuts down after 3 mins without any movement

Caractéristiques

• Body Dimension: 108×53.9x16mm
• Suitable blade width: 20mm ~ 74mm
• Detectable pitch range: +/- 90°
• Resolution: 0.1°
• Battery: 2x CR 2032 Lithium
• Weight: 38g (including battery)
