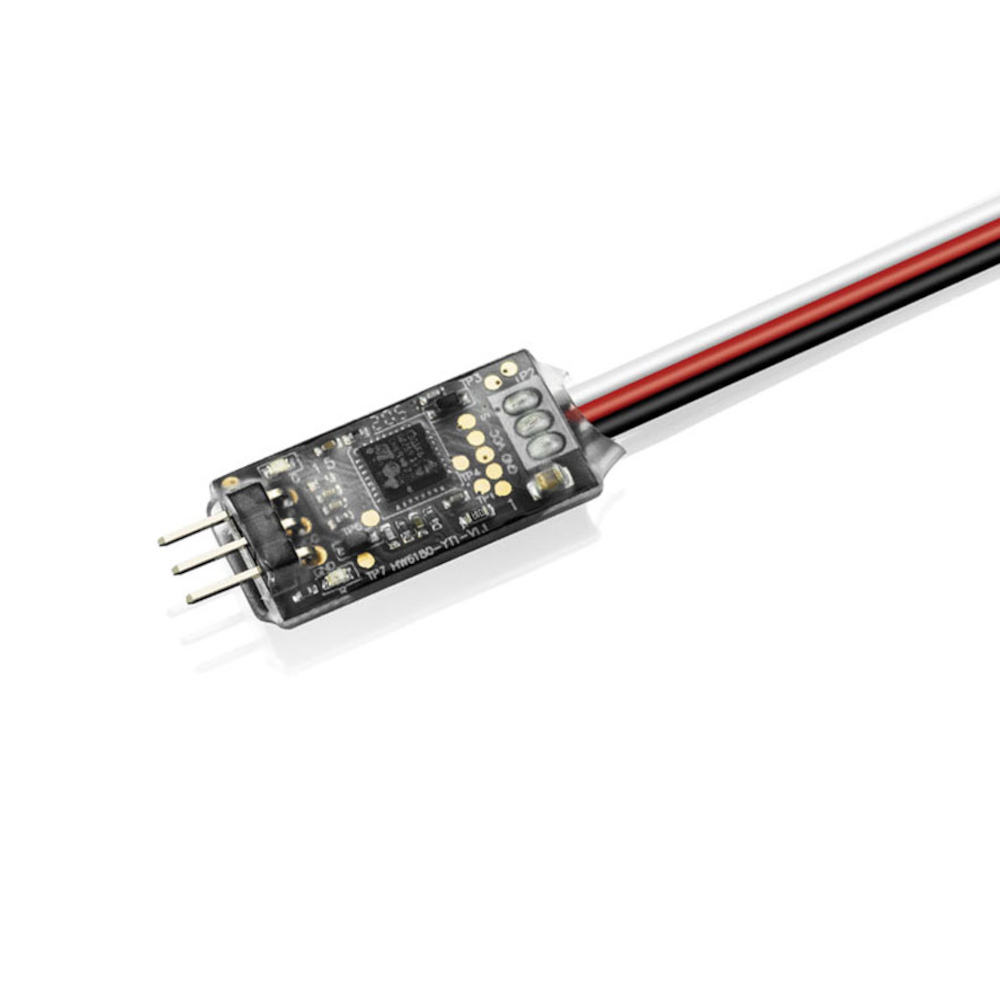

Hobbywing Telemetry adapter (Futaba, Frsky, JETI)

La description

Hobbywing Telemetry adapter is compatible with HOBBYWING’s Platinum V4, V4.1, and V5 series ESCs, as well as XERUN and EZRUN series ESCs that support telemetry feedback. By connecting this adapter between the ESC and a telemetry-capable receiver (such as those from Futaba, FrSky, or JETI), you can enable real-time transmission of ESC status data to your compatible transmitter, allowing for on-screen display of information like current, voltage, and RPM.

Features

• Supports telemetry over Futaba, Frsky And JETI protocol receivers.
• Simple connection between ESC and receiver to enable telemetry readout on your Transmitter Radio.
• Programmable via Hobbywing LCD Program box

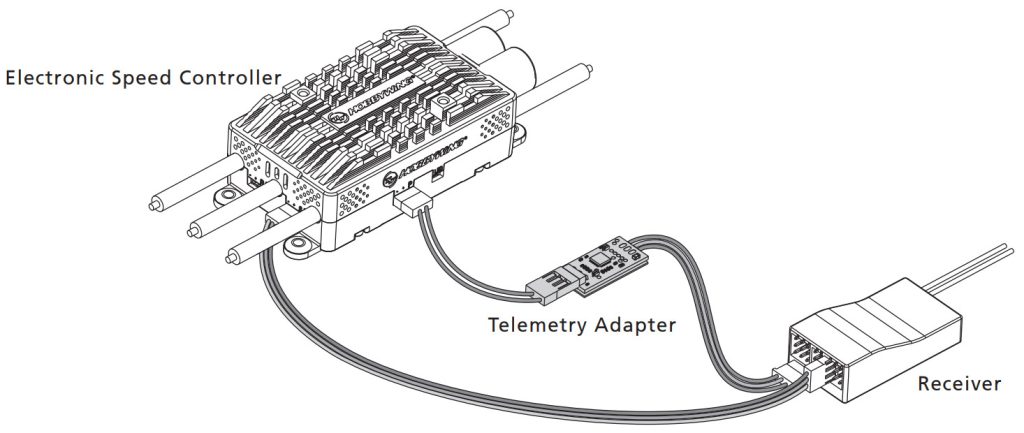

Connection Diagram

• Connect “-P” side of telemetry adapter to the the ESC’s program port (usually identified as “-+ P”)
• Connect “-+T” side of telemetry adapter the telemetry channel of a receiver supporting Futaba, FrSky, or JETI telemetry
• Connect the throttle signal wire of the ESC to the throttle channel of the receiver.

Note: The input Voltage of the adapter is 5-9V; The “-P” port does not provide power to the adapter.

Caractéristiques

Part#	HW30850503
Working Voltage:	5-9V
Supported Bluetooth Version	≥ 4.0
Effective Range	0-5m (Open Field)
Size	21x13x6mm (LxWxH)
Weight	3.5g

Supported ESCs:

Support Telemetry Adapter Air ESC list:
Platinum 25A V4（No Current data）
Platinum 60A V4（No Current data）
Platinum 80A V4
Platinum 120A V4
Platinum HV 130A V4
Platinum HV 130A V4 OPTO
Platinum HV 200A V4.1 SBEC
Platinum HV 200A V4.1 OPTO
Platinum 150A V5
Platinum HV 260A V5
Support Telemetry Adapter Car ESC list:

XERUN XR8 PRO G3
XERUN XR8 PULS G2S
XERUN XR8 PRO G2
XERUN XR10 PRO G3/G3X
XERUN XR10 PRO DR
XERUN XR10 PRO WP
XERUN XR10 Stock Spec G2
XERUN XR10 Justock G3S
XERUN XR10 PRO G2S
XERUN XD10 PRO
XERUN XR14
EZRUN MAX4 HV
EZRUN MAX5 HV PLUS G2
EZRUN MAX5 HV G2
EZRUN MAX8 G2
EZRUN MAX10 G2

Téléchargements

• Hobbywing Telemetry Adapter User Manual

Comprend

1x Telemetry adapter
2x JR extension cables
1x Manual
