Description

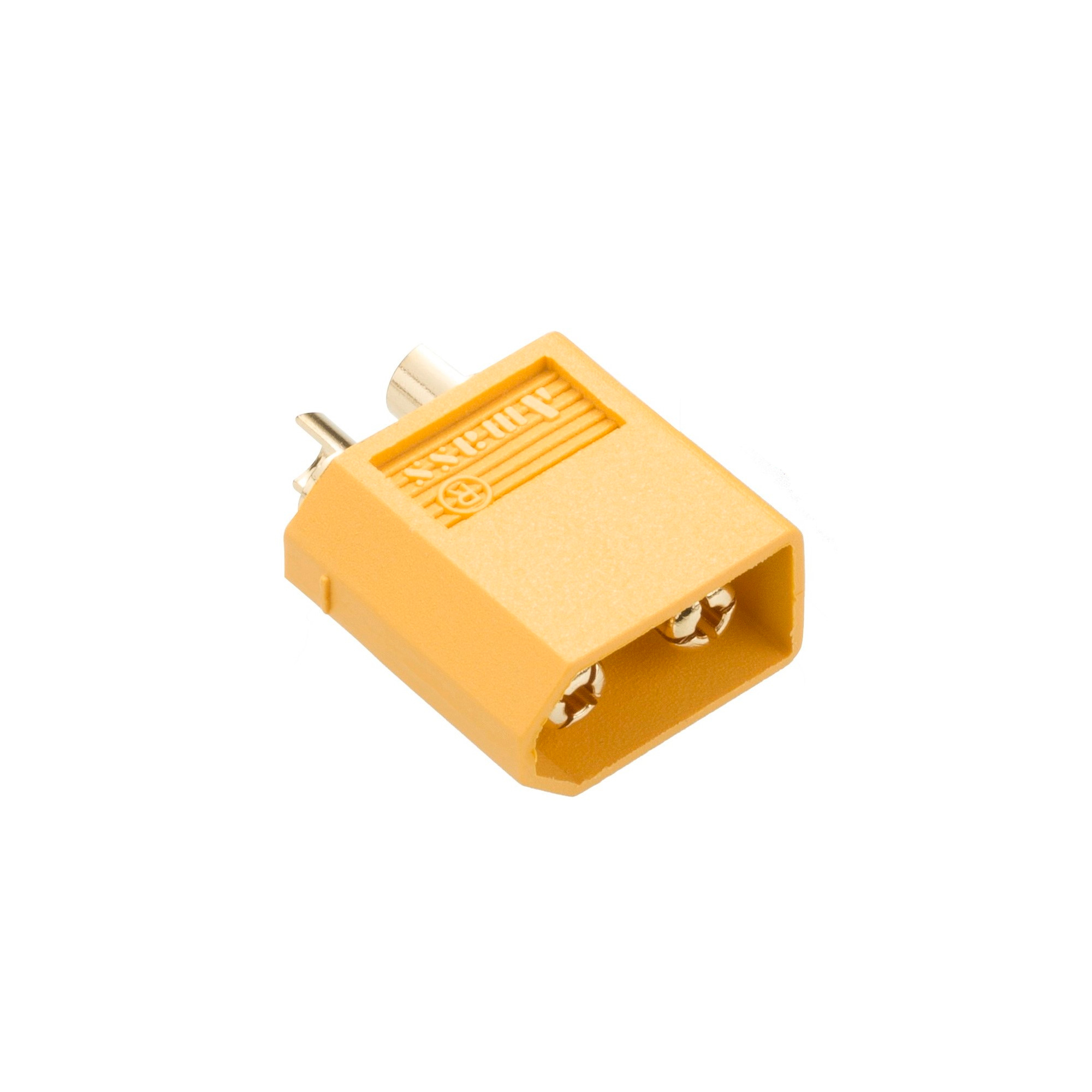

Amass XT60 connectors manufactured from high temperature nylon, housed in a compact package designed to prevent a short-circuit. The connectors include a cap to protect the terminals and create a neater termination.
Caractéristiques:
- Manufactured by AMASS
- Current rating: 35A
- Contact material: gold plated brass
- Insulator material: nylon
Caractéristiques:
|
Manufacturer
|
AMASS | |
|
Type of connector
|
DC supply | |
|
Connector
|
plug | |
|
Kind of connector
|
male | |
|
Manufacturer series
|
XT60 | |
|
Current rating
|
30A | |
|
Rated voltage
|
0.5kV | |
|
Number of pins
|
2 | |
|
Spatial orientation
|
straight | |
|
Mechanical mounting
|
for cable | |
|
Electrical mounting
|
soldering | |
|
Contact material
|
brass | |
|
Contact plating
|
gold flash | |
|
Colour
|
yellow | |
|
Flammability rating
|
UL94V-0 | |
|
Body material
|
polyamide | |
|
Wire size
|
12AWG | |
|
Mechanical durability
|
1000 cycles | |
|
Operating temperature
|
-20…120°C |
