Kuvaus

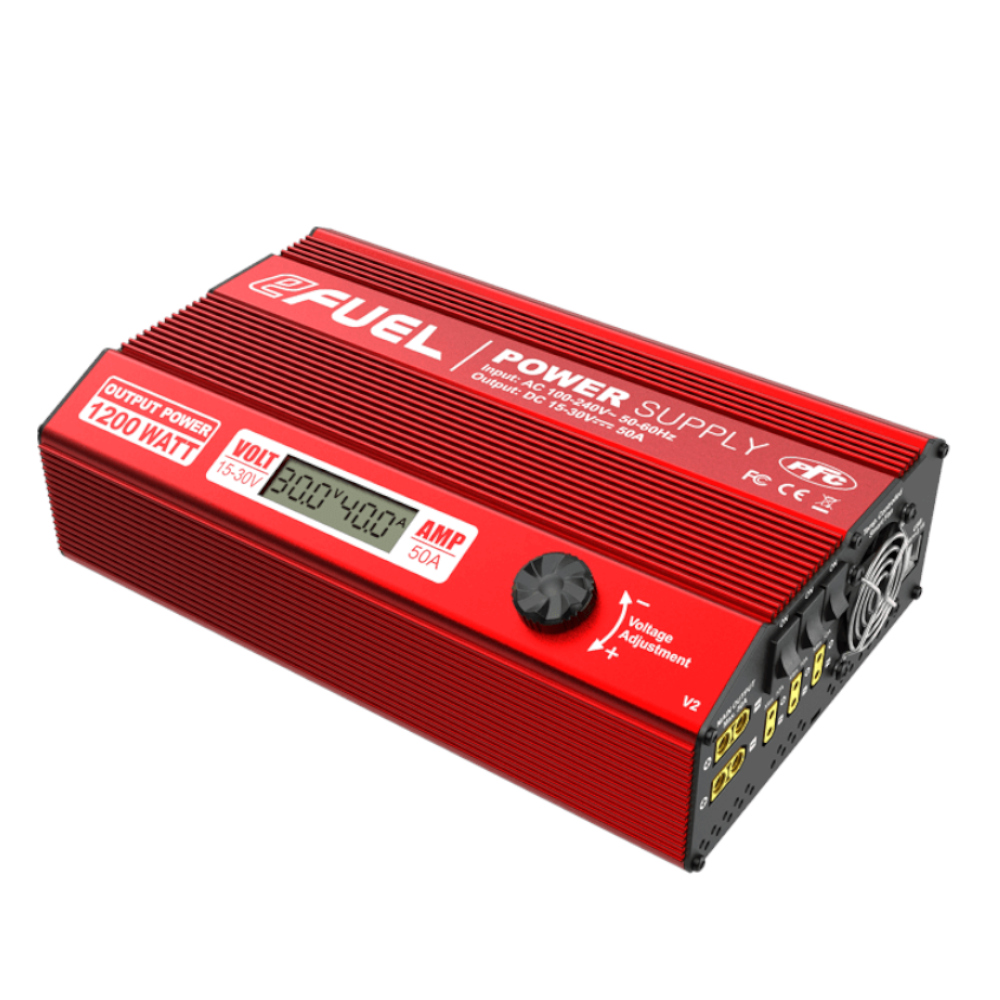

SkyRC eFUEL 1200W 50A Regulated Power Supply is a High Power High Output Power supply with Protection features. It is an ideal companion for DC Battery Chargers.
Features
Multiple Output Ports
The maximum output of the two main ports is 50A, while each of other three deputy outlets provides up to 10A output with a switch to control respectively.
1200W output with 5 outlets to power your charger, you deserve to have one such power supply. It also supports 2 USB Power Ports with 2.1A current.
Intelligent Air Cooling System
Adopting the cooling system, the fan will be initiated automatically when the operating temperature reaches 50 degrees C.
Active PFC
Active PFC (Power Factor Correction) is integrated into SkyRC 1200W/50A regulated power supply, can provide higher power utilization. Active PFC is the use of power electronics to change the waveform of current drawn by a load to improve the power factor, thus achieving the purpose of higher efficiency. It’s capable of correction on AC input voltage and universal on a global basis.
Protection features
Tekniset tiedot
- Input Voltage: 100-240V AC
- Output Current: 50A±1A
- Cooling Method: Cooling Fan
- Input AC Frequency: 50-60Hz
- Input Fuse: 20A Fuse
- Operating Temperature: 0-40℃
- Output Voltage Ripple: < 1200mV
- Over Temperature Protection: < 65℃
- Power Efficiency: 89%
- Power Factor: > 0.98
- LCD Display: Voltage Precision ±0.3V, Current Precision ±0.5A
- Size: 268 x 165 x 74 mm
- Weight: 3.08 Kg

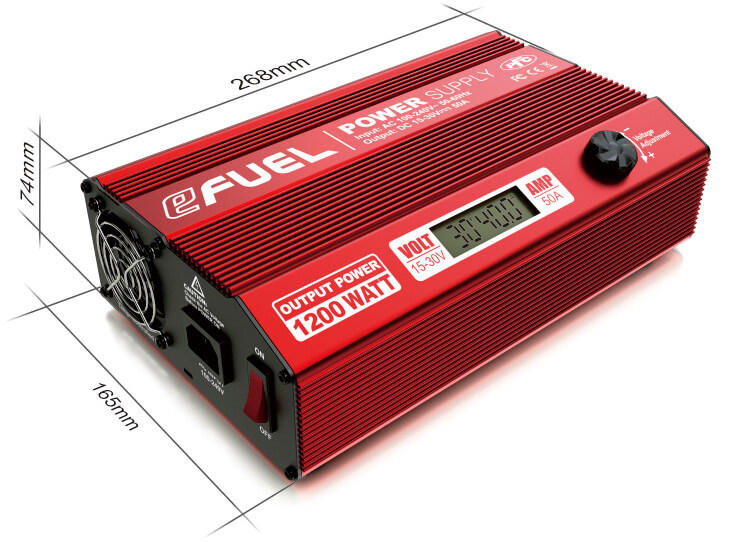

Dimensions
268 x 165 x 74 mm
Lataukset
Sisältää
- Power Supply PSU 50A
- AC Power Cord (EU)
- Instruction Manual
