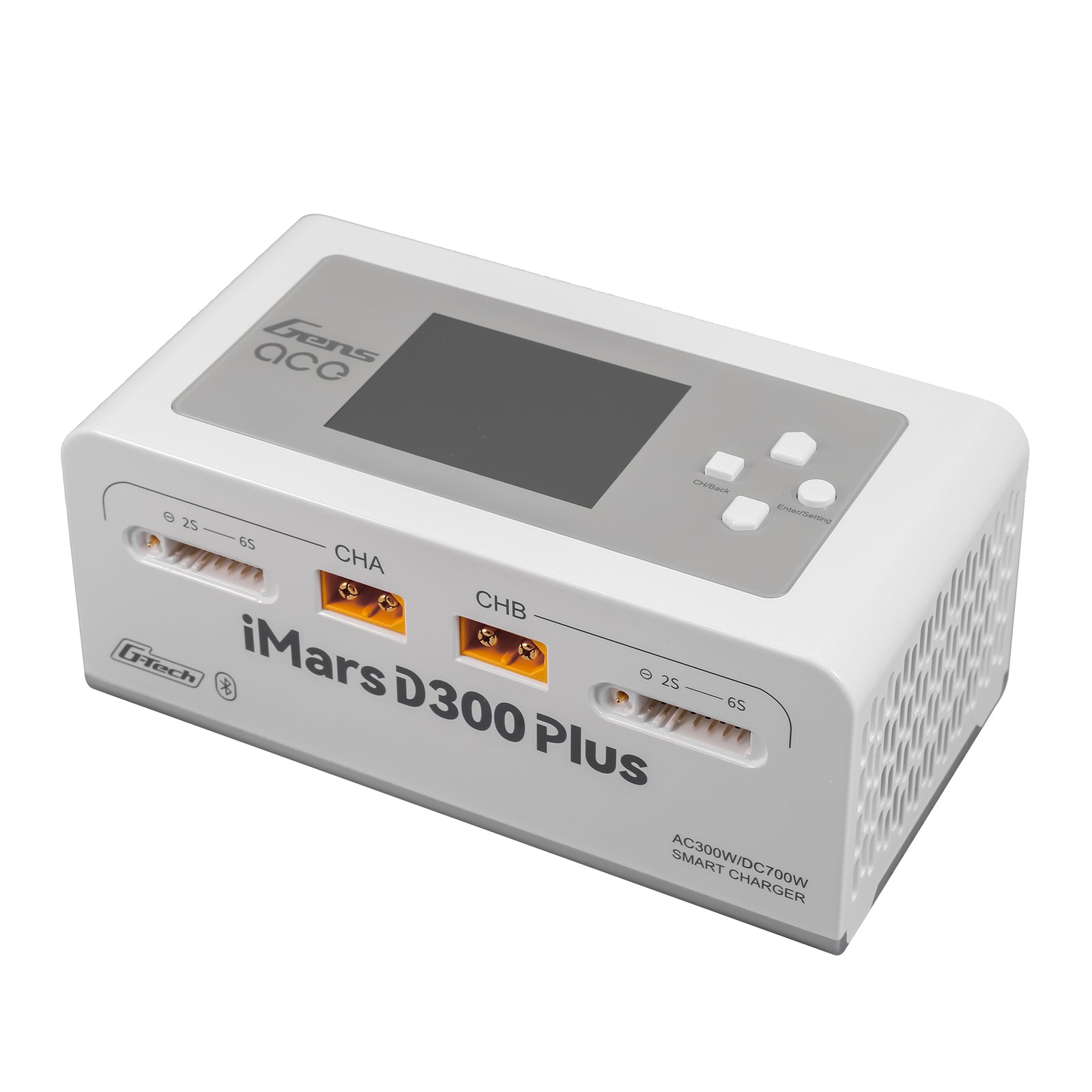

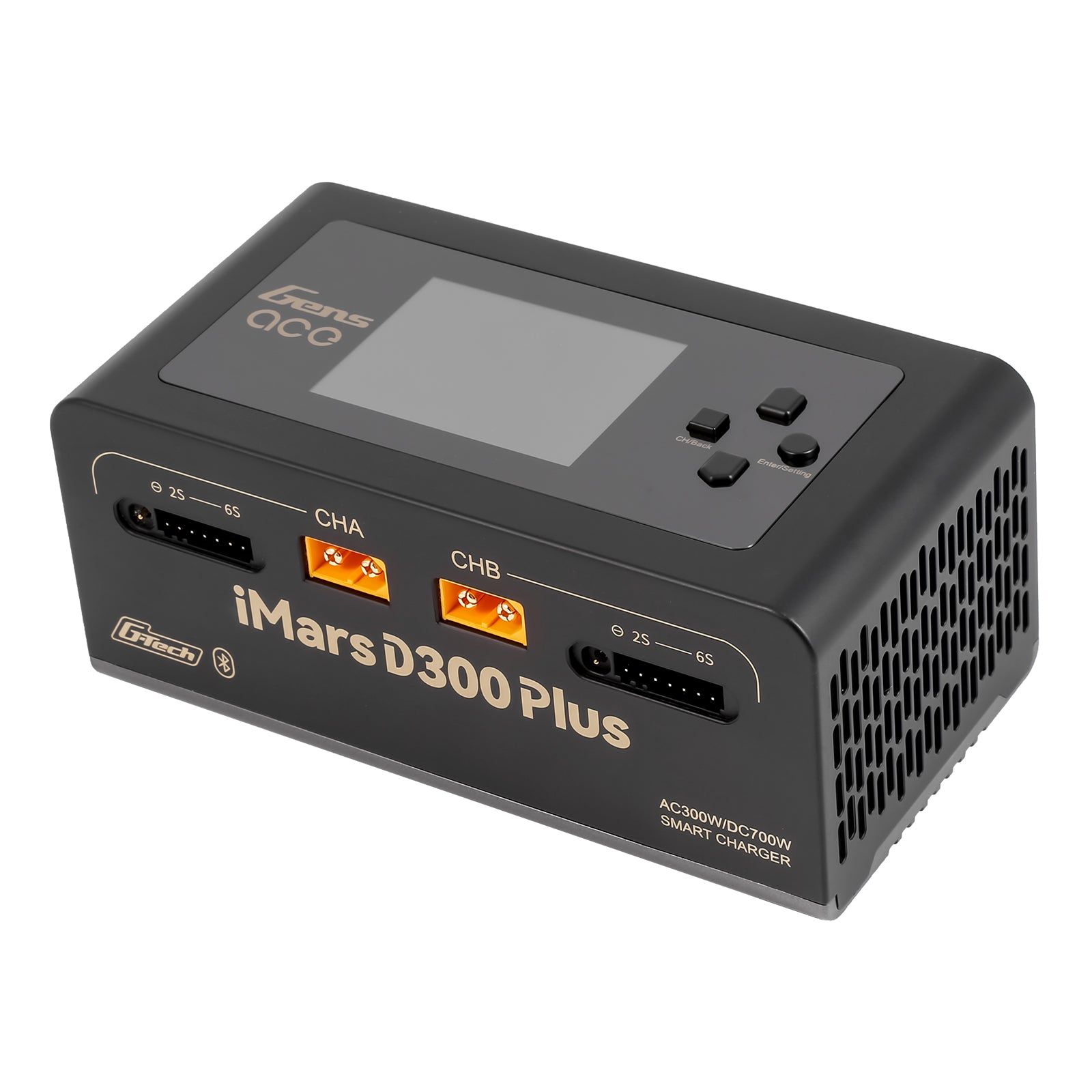

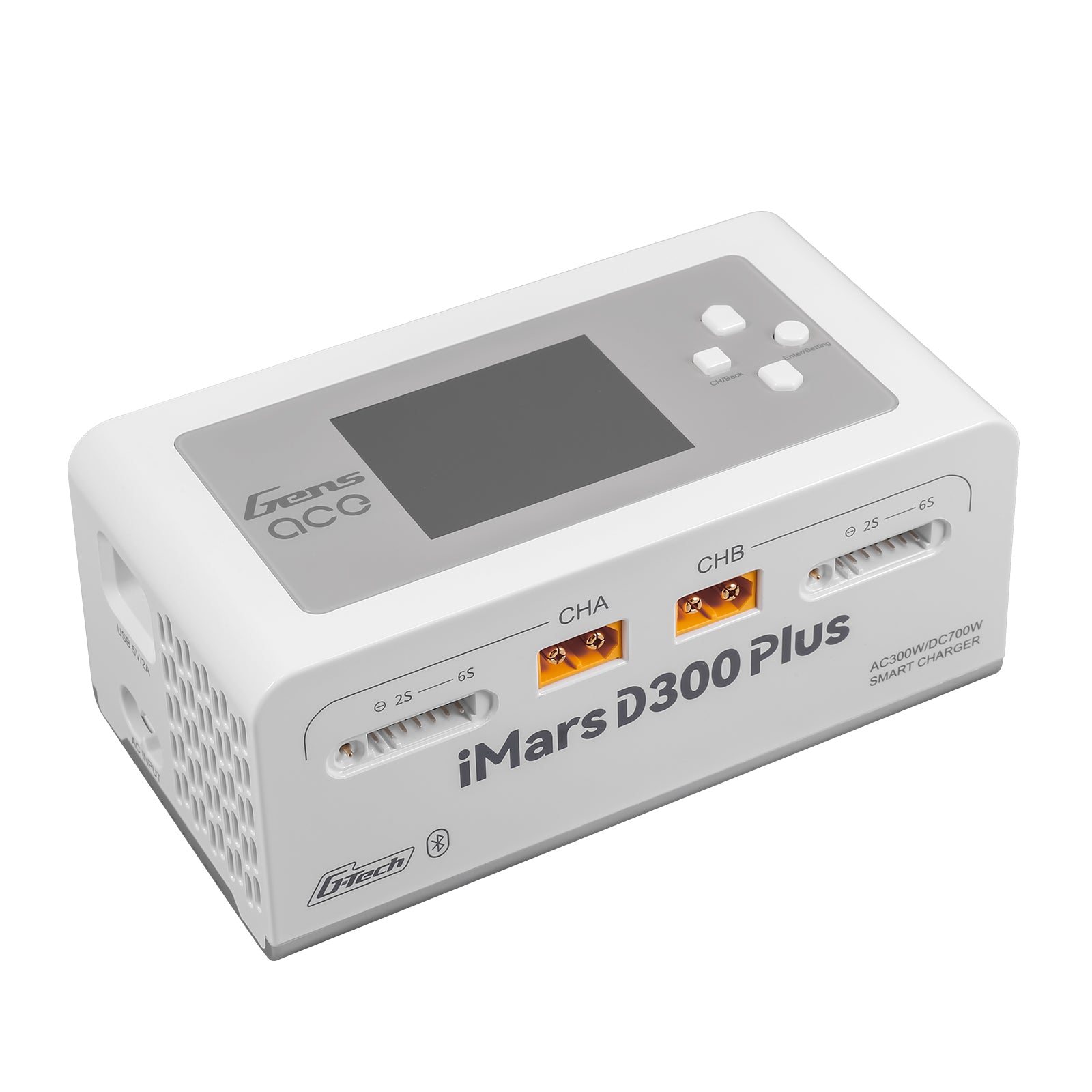

Gens Ace IMARS D300 Plus Smart Dual Charger G-Tech 300W / 700W

Kuvaus

The Gens Ace iMars D300 Plus is a new dual-channel smart charger based on the D300. It keeps the core features of the G-Tech system and adds Bluetooth remote control. RC enthusiasts can now use the Gens Ace app to manage and view more real-time data and historical records, making the experience simpler, more efficient, and safer.

Gens Ace Imars D300 Plus Smart Dual Charger G-Tech supports 2 channel charging and discharging: With DC power, the charger supports 350W charging per port (700W total). With AC power it supports a total of 300W charging  in total for both channels together. The maximum charging current is 16A per port (32A total). It also has a USB output port (5V/2.4A) for charging your Phone or GoPro while at the field or at your desk.

Ominaisuudet:

Control via App

• Android App
• iOS App

The Gens Ace App goes beyond remote control of the D300 Plus—it seamlessly integrates with the G-Tech Smart System. Users can access detailed real-time data and historical records anytime, ensuring simpler operation and full visibility of battery health.

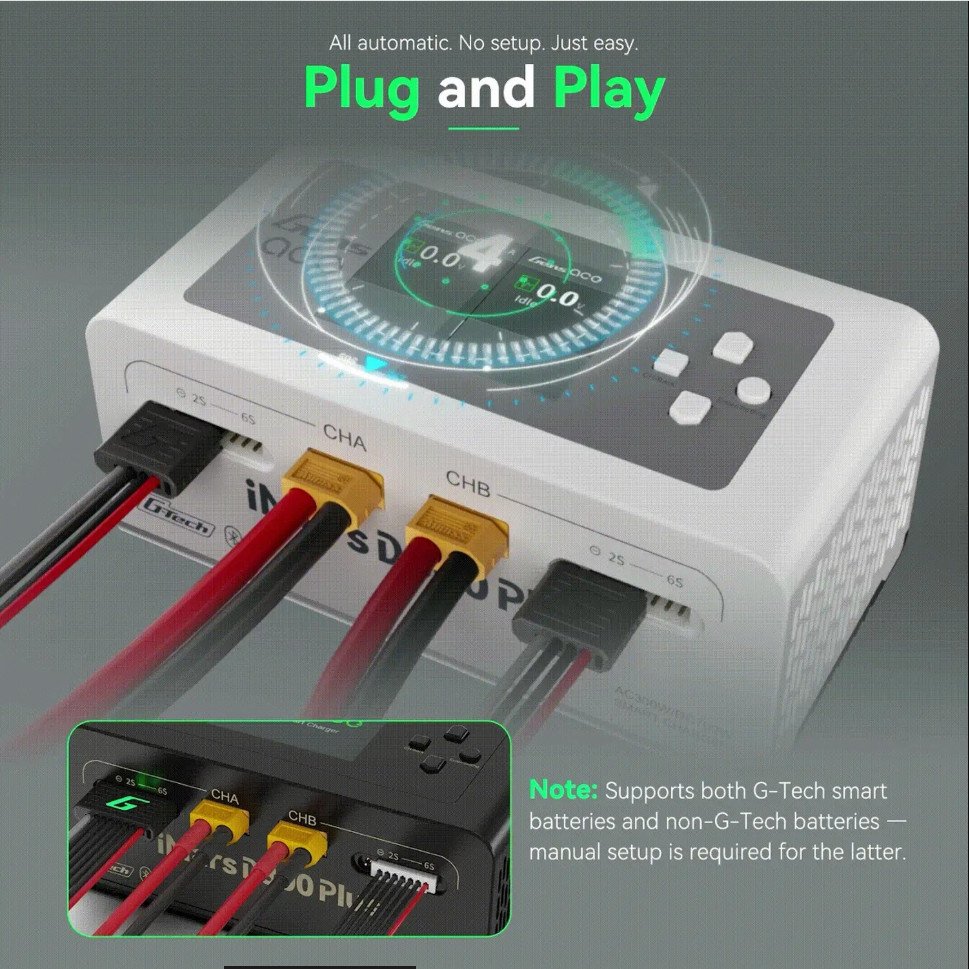

G-Tech Plug and Play

• Plug and Play – Automatically detects battery type and parameters—starts charging instantly with no setup required.
• Automatically identifies battery parameters to avoid setup errors and achieve smarter, more efficient management.

Note: Supports both G-Tech smart batteries and non-G-Tech batteries — manual setup is required for the latter.

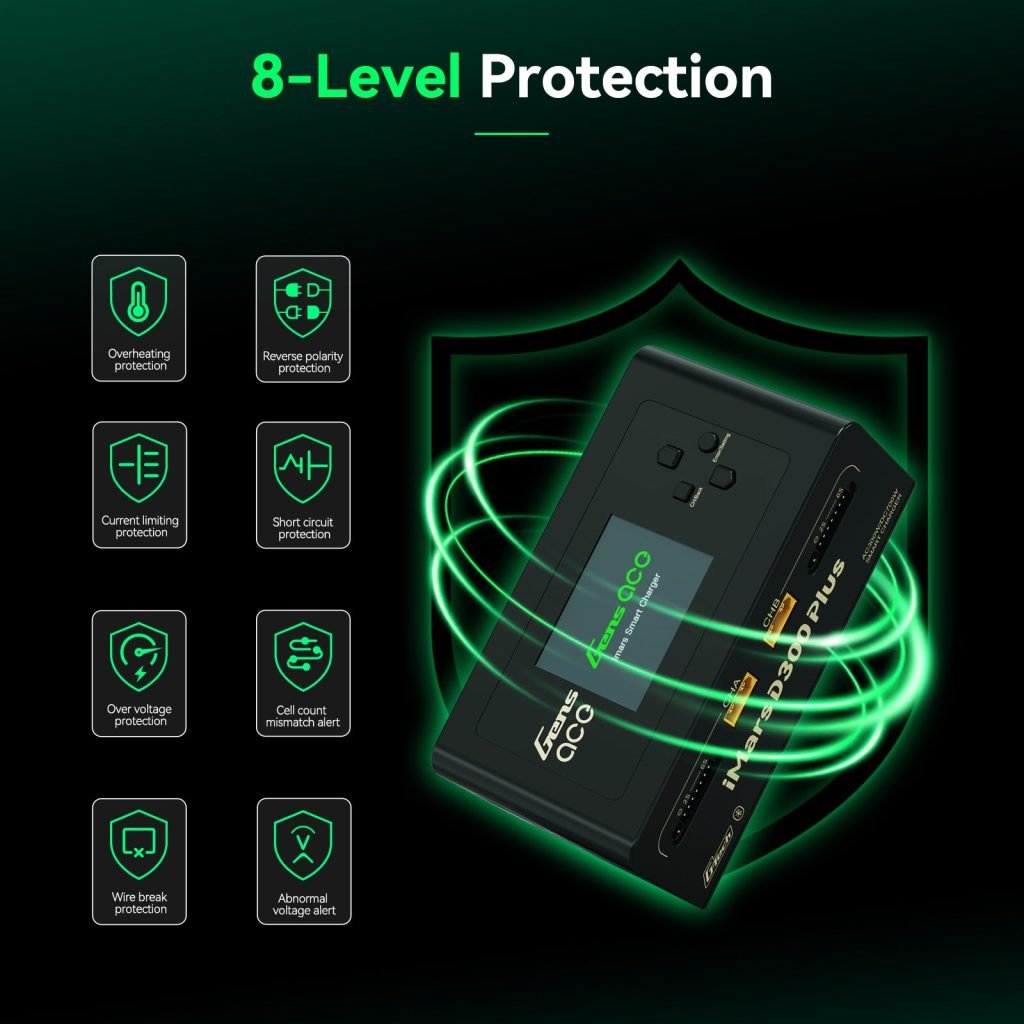

8-Level Protection

• Overheating Protection
• Current Limiting Protection
• Over Voltage Protection
• Wire Break Protection
• Reverse Polarity Protection
• Short Circuit Protection
• Cell Count Mismatch Alert
• Abnormal Voltage Alert

Compact and light weight

Small & Lightweight Portable Design with wide-view IPS Display.
Built-in DC power source for different devices.

Versatile Operating Modes

• Charge
• Discharge
• Storage
• Balance
• 2-in-1 Fast Charge
• External Discharge
• Digital Power

Tekniset tiedot:

• Input Voltage: AC 100-240V; DC 7-30V
• Output Voltage: DC 1~30V
• Max. Input Current: DC 34A
• Max. Discharging Power: 15W*2
• Maximum Charging Power: AC 300W; DC 350W*2
• Charge Current: 0.1-16A x2
• Balance Current: 1.2A/cell x2
• Discharge Current: 0.1~3A x2
• Cell Balancing: 1~6s
• USB Output: 5V / 2.4A
• Display Type: 2.4 inch IPS LCD Display
• Supported Battery Chemistry: LiPo / LiHV / LiFe 1~6S; NiMH  1~16S
• Mitat: 145x76x62 mm
• Product Net Weight: 530g
• Languages: English, German, French, Chinese, Simplified Chinese
• Accessories Included: AC Input Cable / XT60-T adapter / XT60-EC5 adapter / XT60-EC3 adapter

Lataukset:

• GensAce IMARS D300 Plus Charger Instruction Manual

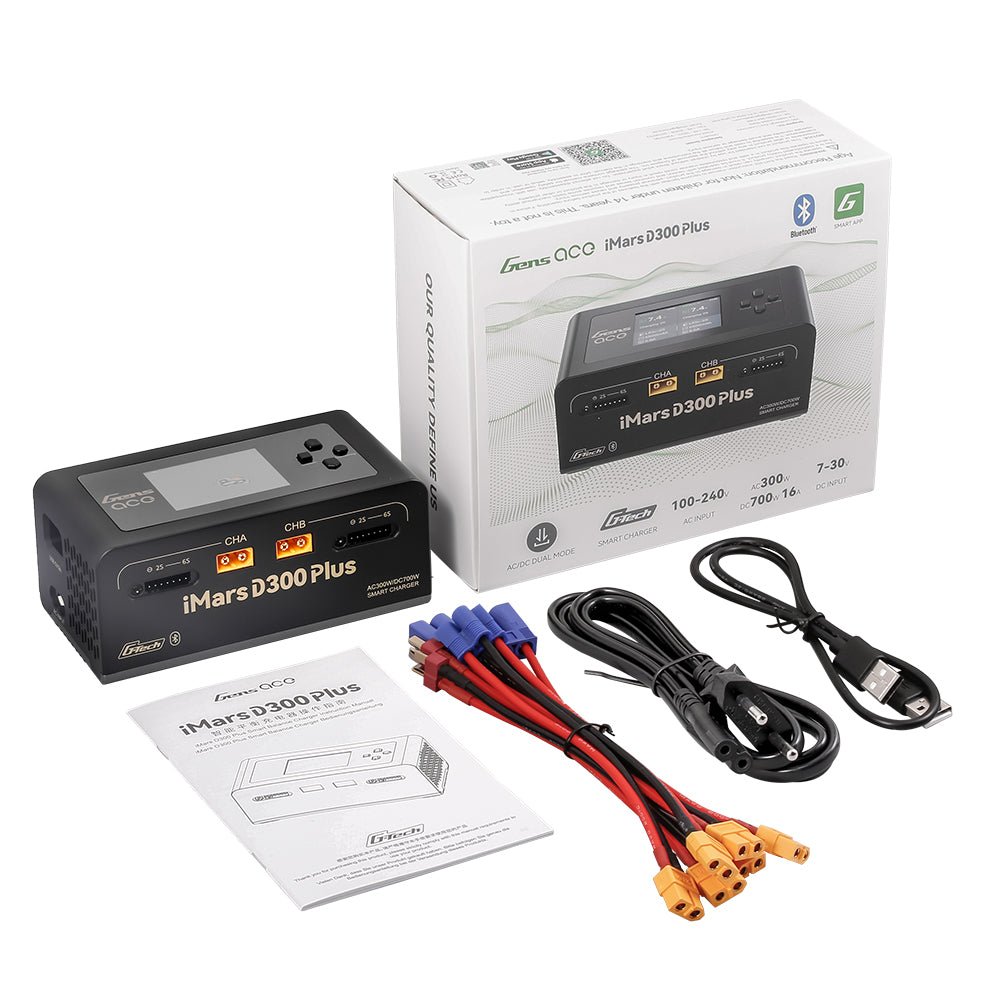

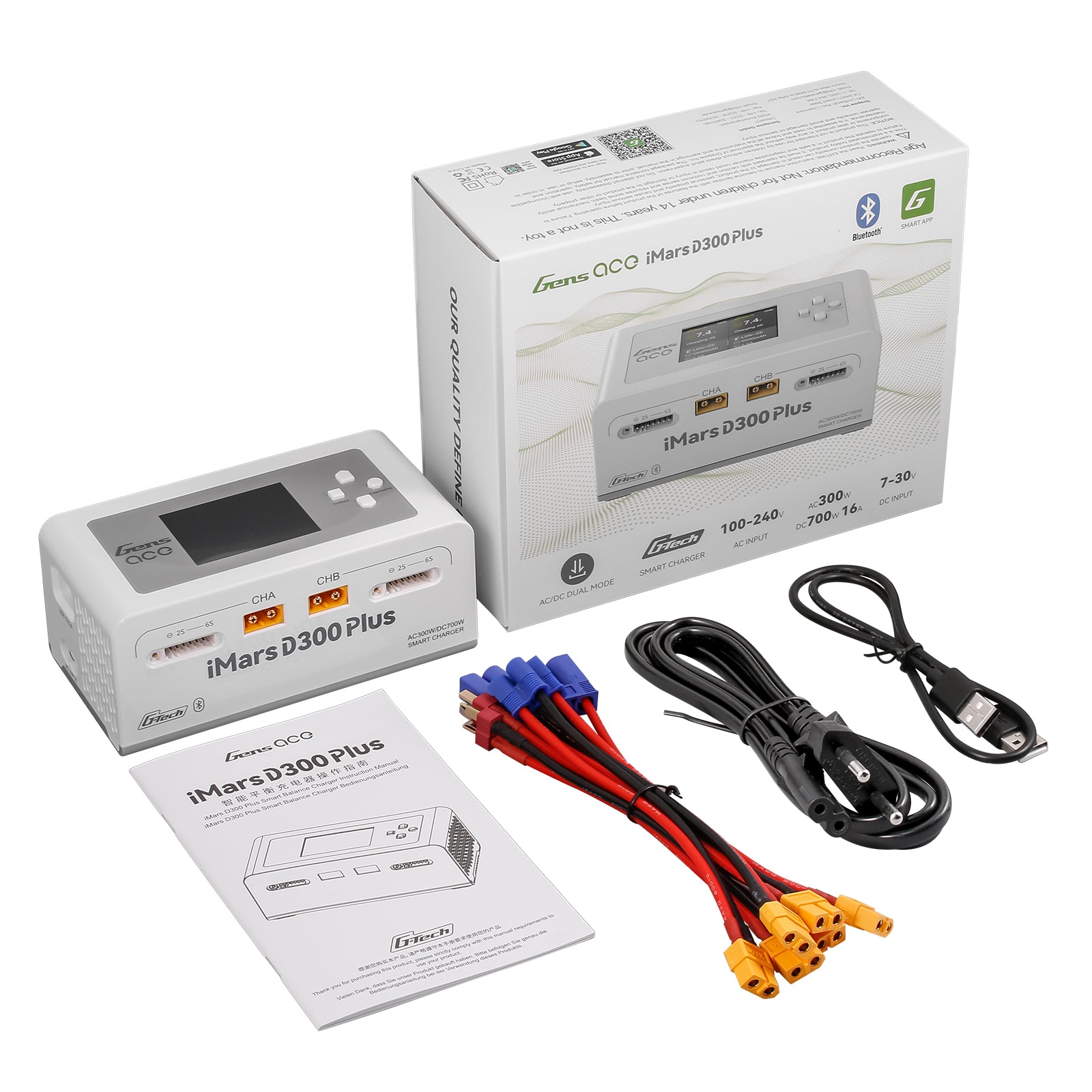

Sisällys:

• D300 Plus Charger
• Power Cord (EU)
• USB cable (Type-A to Type-A)
• 6x Charging cables (EC5, XT60, Deans T)
• Ohjekirja
