Kuvaus

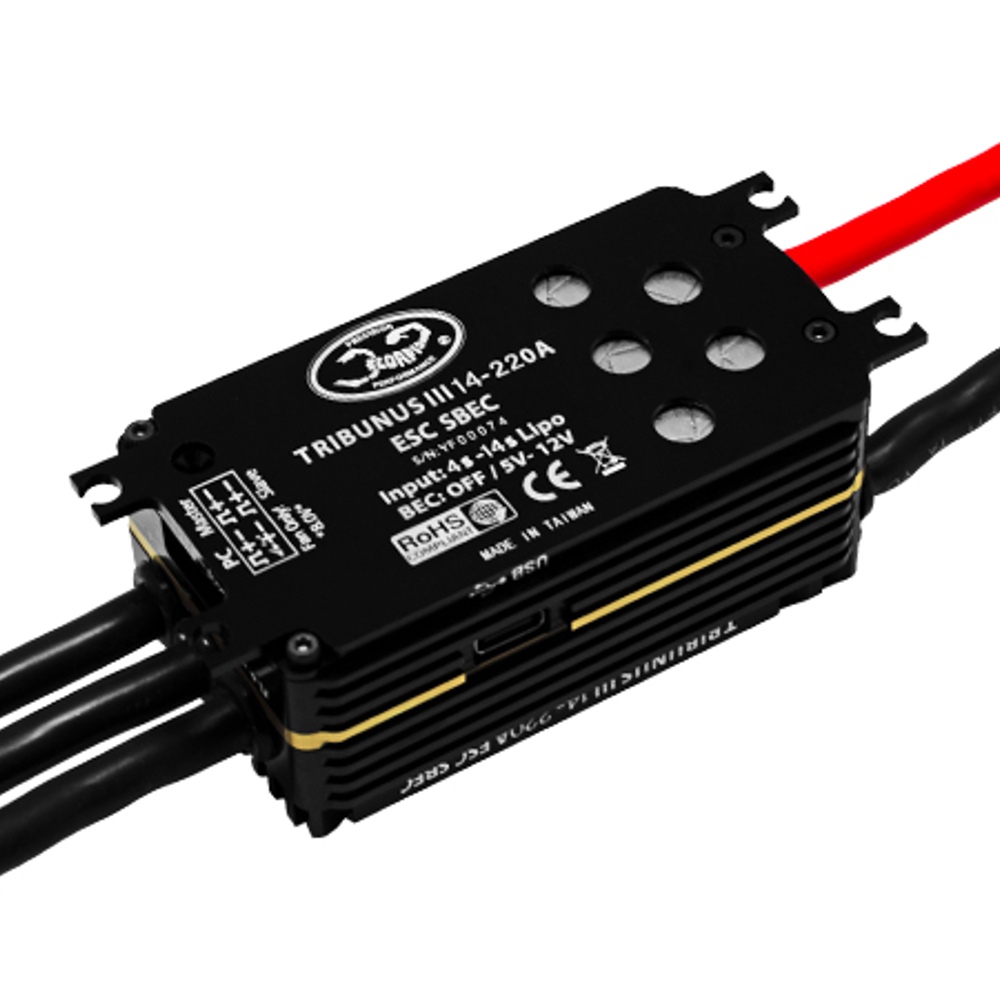

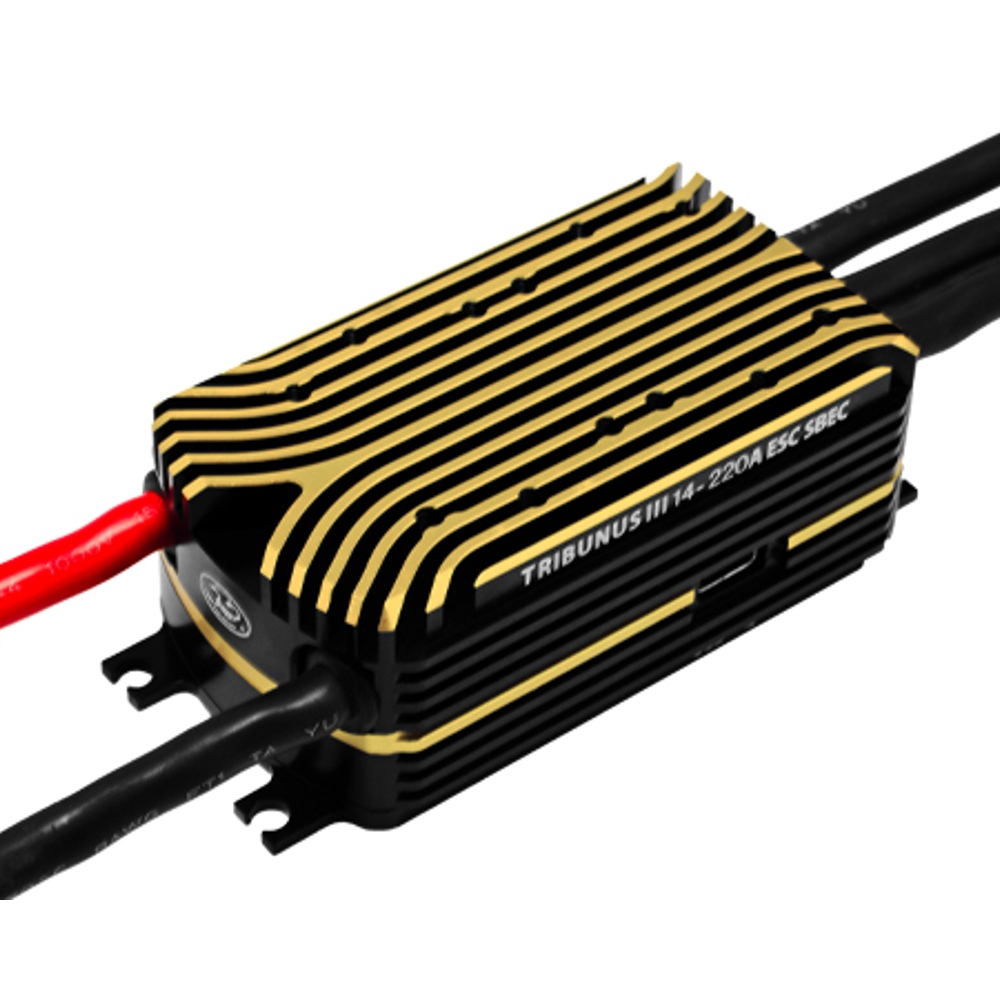

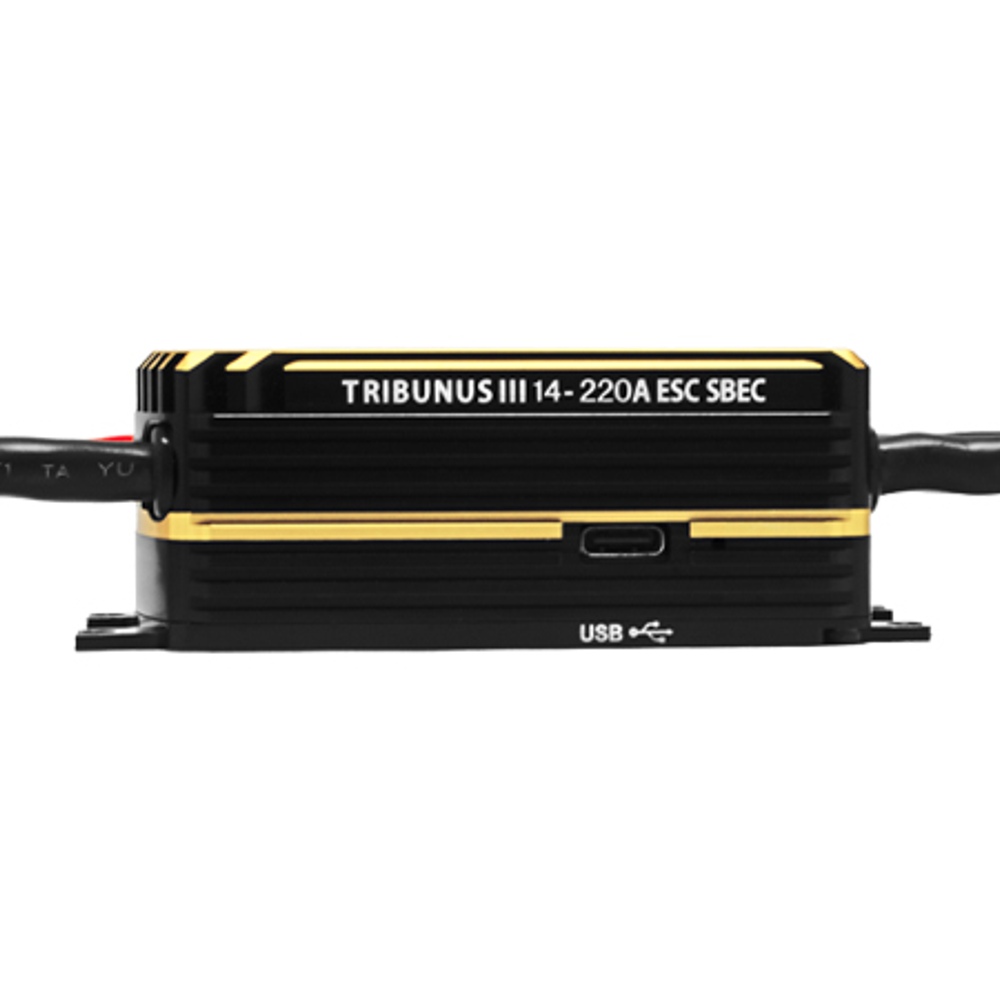

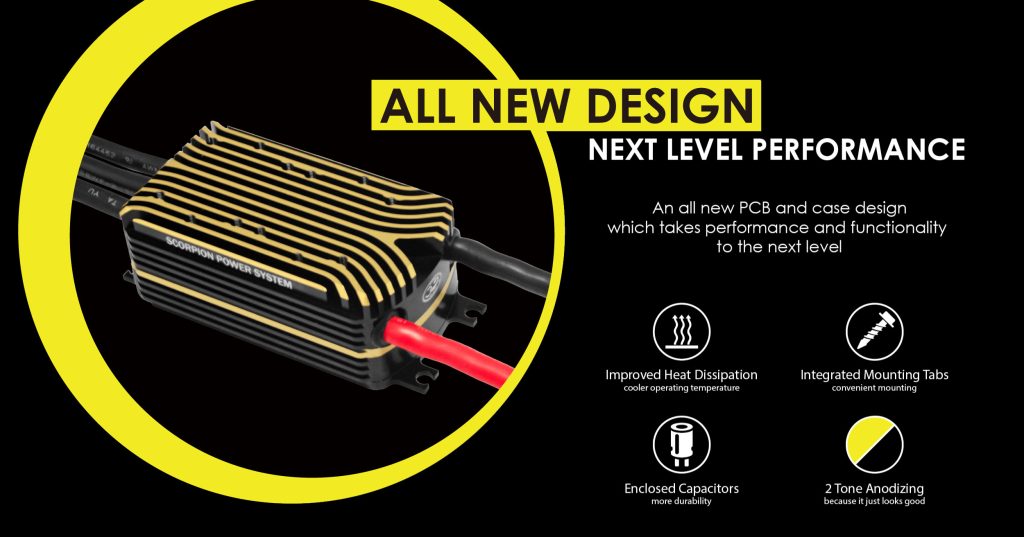

Scorpion Tribunus III series of ESCs come with all new PCB and case design which take performance and functionality to the next level. The Tribunus III comes with even more powerful BEC, active cooling fan control, more robust design and mounting pads.
Features
- High power BEC 5V to 12V adjustable. 15A Continuous, 30A peak

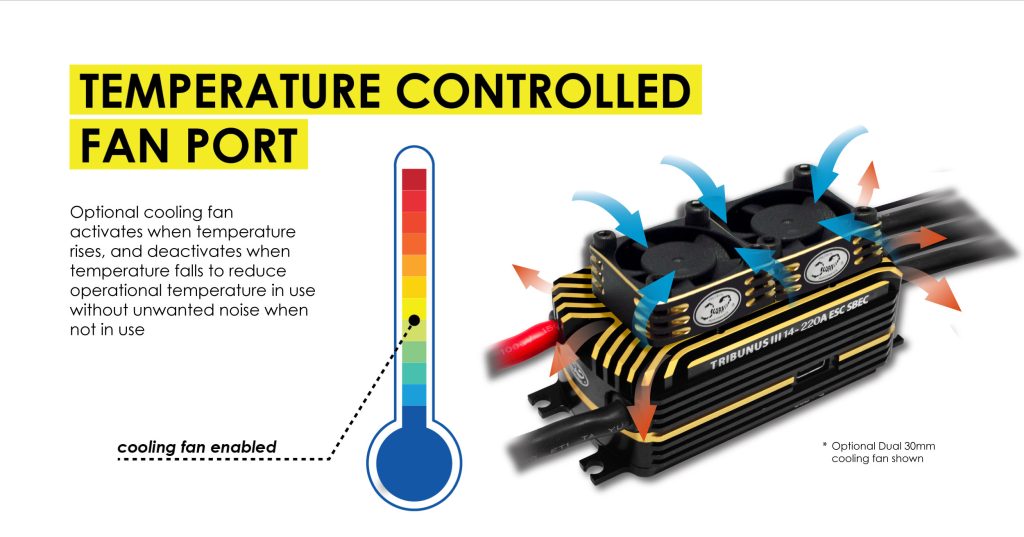

- Temperature controlled cooling fan for quieter operation
- Real time telemetry and data logging (Mikado, Futaba, Jeti, etc)
- Improved heat dissipation for cooler operation
- Integrated mounting pads for convenient mounting
- Enclosed capacitors for more durability
- 2 tone anodizing for better looks
Tekniset tiedot
| Max Continuous Current* | 220 Amps |
| Peak Current | 300 Amps |
| Operating Voltage Range | 13-61 Volts |
| BEC Output voltage: | 5.1V to 12.1V adjustable |
| Max Continuous BEC Output | 15 Amps @ 8.1 V |
| Peak BEC Output | 30 Amps/1s @ 8.1 V |
| On Resistance | 0.55mOhms * 2 |
| ESC Body Size | 46.1 x 80.7 x 32.3 mm (1.81 x 3.17 x 1.27 in) |
| Mounting Tab Dimensions | 26.0 x 89.0mm ( 1.02 x 3.50 in) / M3 Bolt |
| Weight (Without Connectors) | 194g ( 6.84oz) |
| Weight (With wires) | 294g ( 10.37oz) |
| Drive frequency | 8kHz – 32kHz |
*Max Continuous Current is the rating at 100% throttle for 60 seconds with 35m/s of airflow

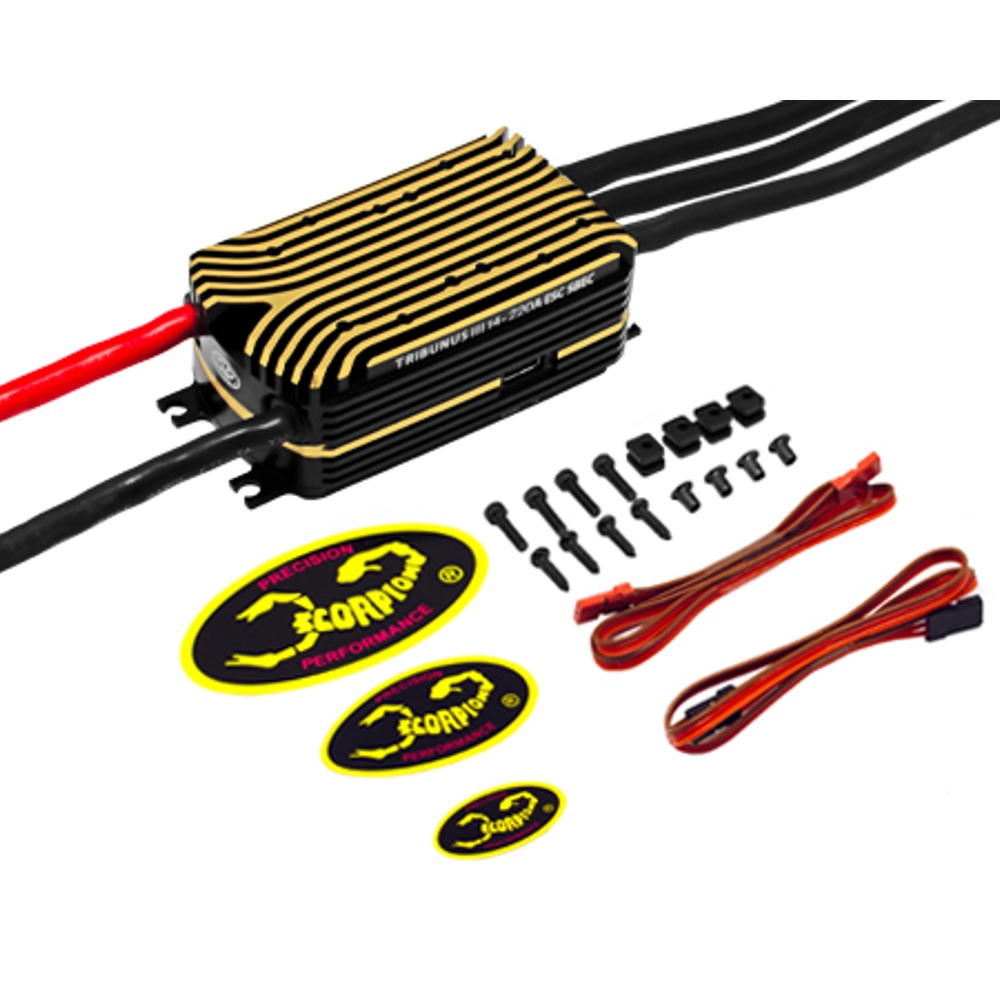

Included in the Box
1 x Tribunus III ESC
2 x BEC Cables (410mm)
1 x Mounting Hardware Pack
1 x BEC Voltage Stabilizing Capacitor
Lataukset

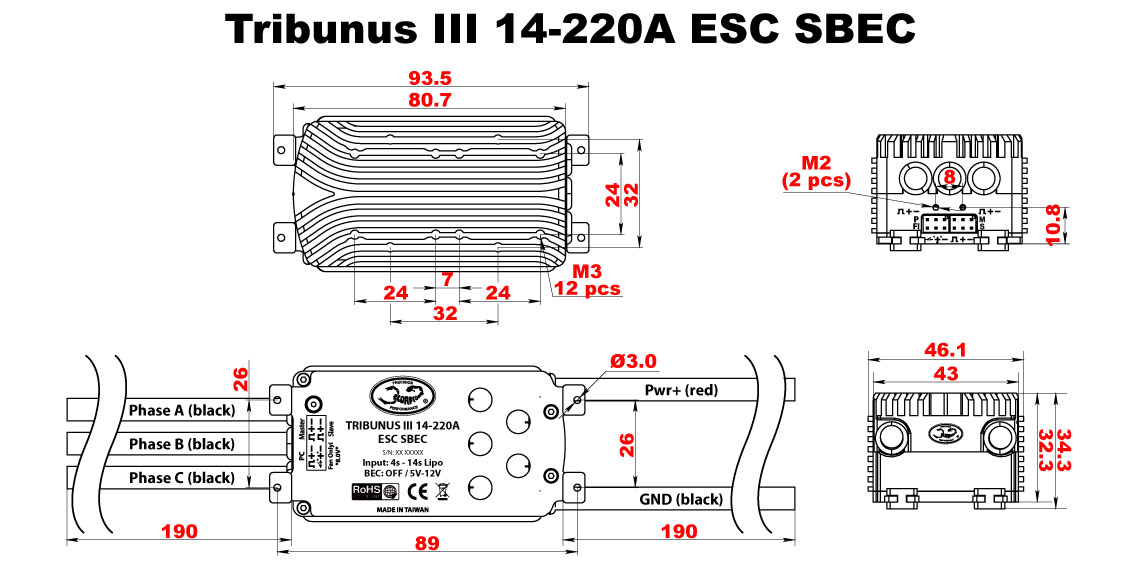

Dimensions
