Beskrivelse

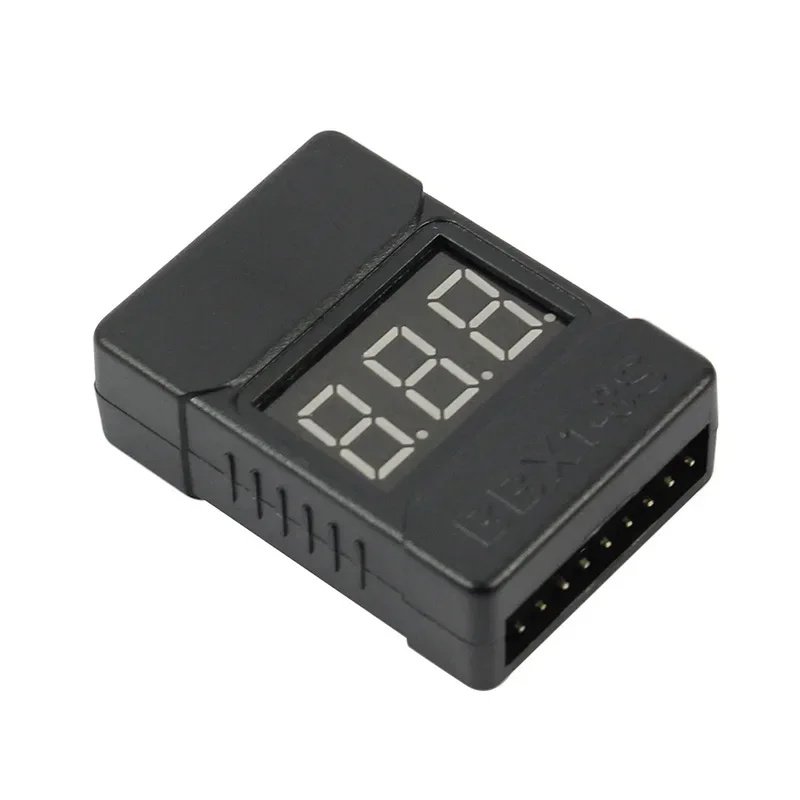

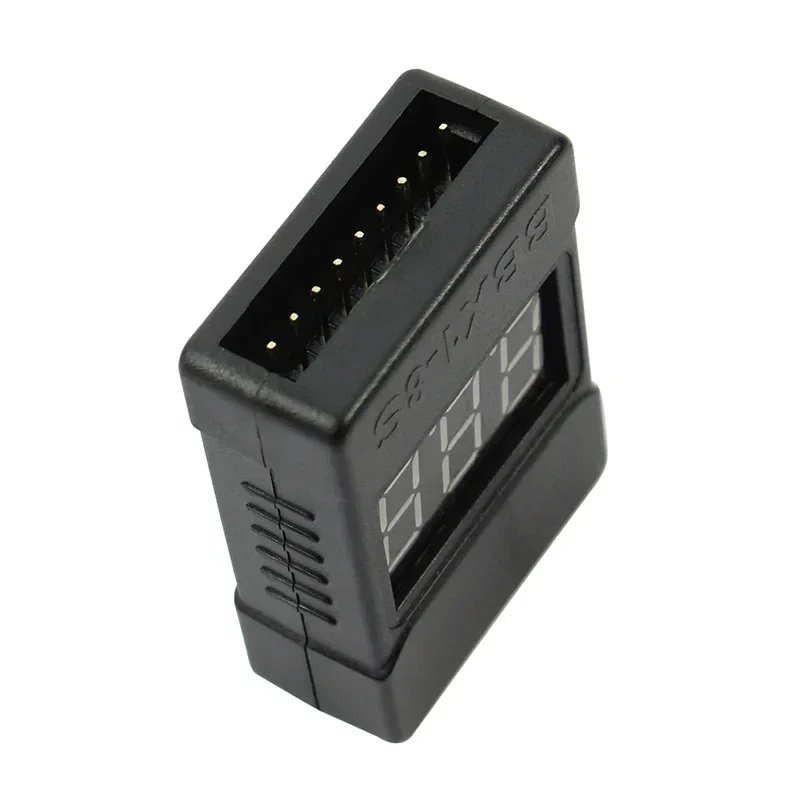

1-8S LiPo Battery Voltage Tester / Low Voltage Buzzer Alarm is a 2-in-1 tool. It can be used as a Low Voltage alarm and as a Battery voltage checker.
Suitable for all RC model batteries with JST-XH balance connector. It will give a loud alarm when battery reaches low voltage so you do not over discharge the battery. It can also quickly display the total battery voltage and the per cell voltage.
Funktioner:

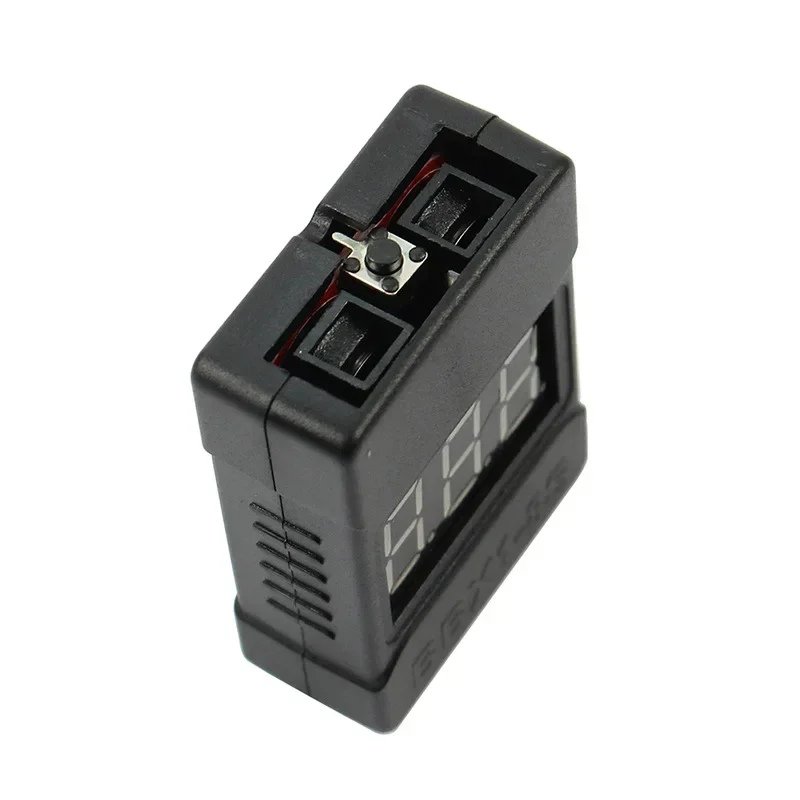

- Push button to adjust Alarm voltage value
- Can be used for for 1-8S Lipo/Li-ion/LiMn/Li-Fe
- Light weight
- Dual buzzer, Very Loud alarm. Use tape on buzzers to reduce Volume
Specifikation:
- Voltage detection precision: +_0.01V
- Per Cell voltage display range: 0.5~4.5V
- Total voltage display range: 0.5~36V
- NOTE: for 1S battery, voltage measuring range is limited from 3.7V to 30V
- Alarm set value range per cell: OFF~2.7~3.8V
- Size: 40mm x 25mm x 11mm
- Net weight: ~8g
- Display Color: Red
- Case Color: Black
EN
FI
SV
DA
DE
FR
István Bubreg (verificeret ejer) -
The product is as described.
Need information about battery drain.
-István-
Hungary.
Ozren (verificeret ejer) -
It’s loud and usefull on field with pockets full of batteries
Anonym (verificeret ejer) -
Works well with M2 Evo
Anonym (verificeret ejer) -
Funktioniert nur bis 3.7V
Roger (store manager) -
For 1 cell battery pack, minimum measuring voltage is 3.7V. This is minimum voltage required for the monitor to work. For 2 cell packs or more it will work for lower voltage per cell i.e. as long as total pack voltage is at least 3.7V.
