Beskrivning

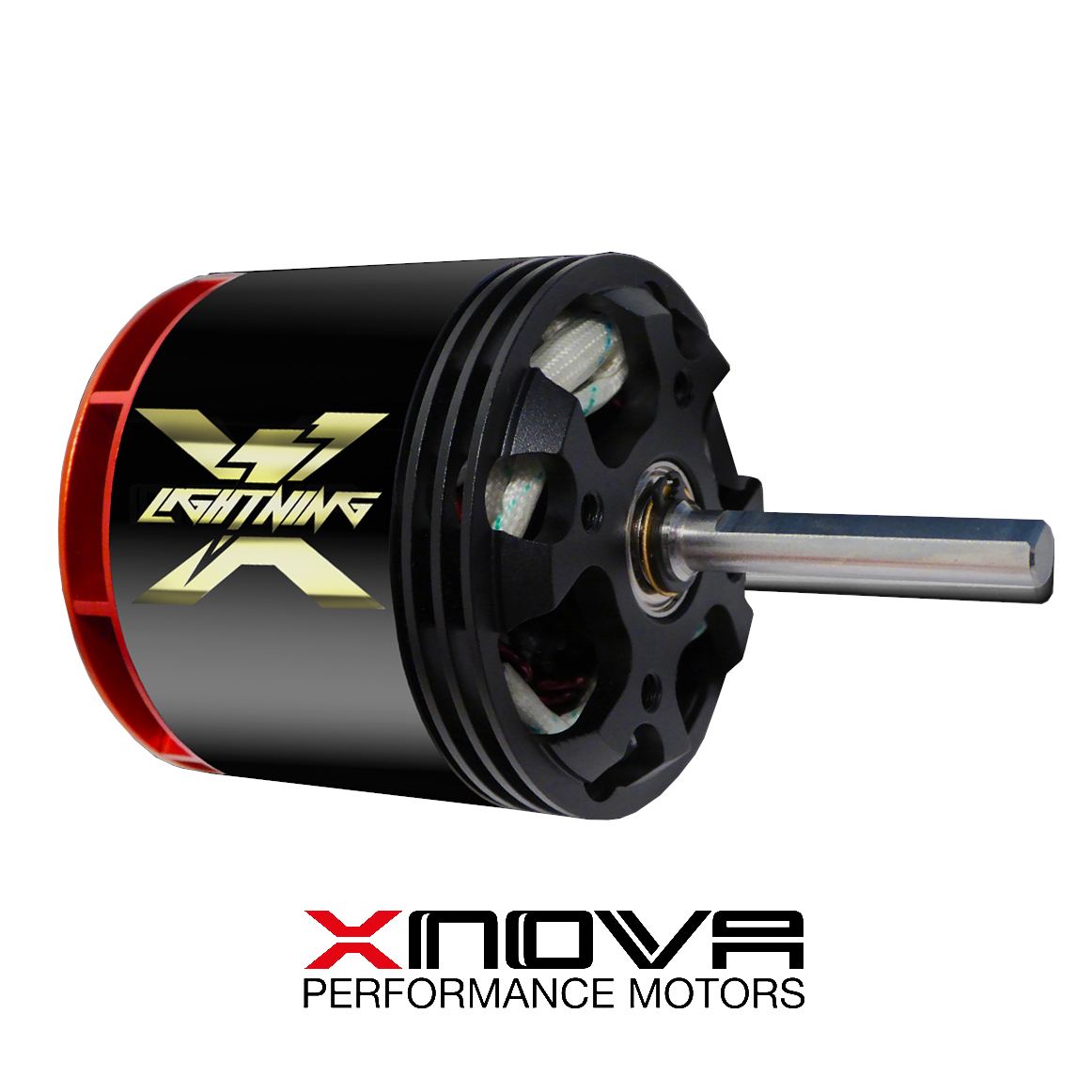

Xnova lightning 4025-560KV high performance outrunner motor has been specially designed for designed for extreme 3D flying in 520-600mm helicopter where highest power to weight ratio is important. It is also suitable for lightweight 700 size on 12S. This A shaft type motor is recommended for 12S setup on OMP M6 and Tron DNAMIC Pro.
The Xnova V3 lightning series is the highest level of motor performance money can buy nowadays.
Highlights
- Improved higher efficiency with thinner stator lamination, resulting in lower temperature.
- Optimized and unique design, hand wound to perfection
- Smooth running, low cogging torque.
- New type of higher degree magnets.
- All other features same as performance series.
Specifikationer
| Motor Kv | 525KV RPM/Volt |
| Weight | 400g |
| Motor Body Dimensions (no shaft) | 49.5mm x 56.2mm |
| External Shaft Dimensions | 6mm x 28mm |
| Continuous Current | 68 Amps |
| Continuous Power | 3000 Watts |
| Peak Power | 4000 Watts (5 seconds) |
| Max Lipo Cell* | 12s |
| No. of Slots | 24 |
| No. of Poles | 8 |
| Motor Wind T | 3Y |
| Mounting Screws | 4*30*M4 |
