Beskrivning

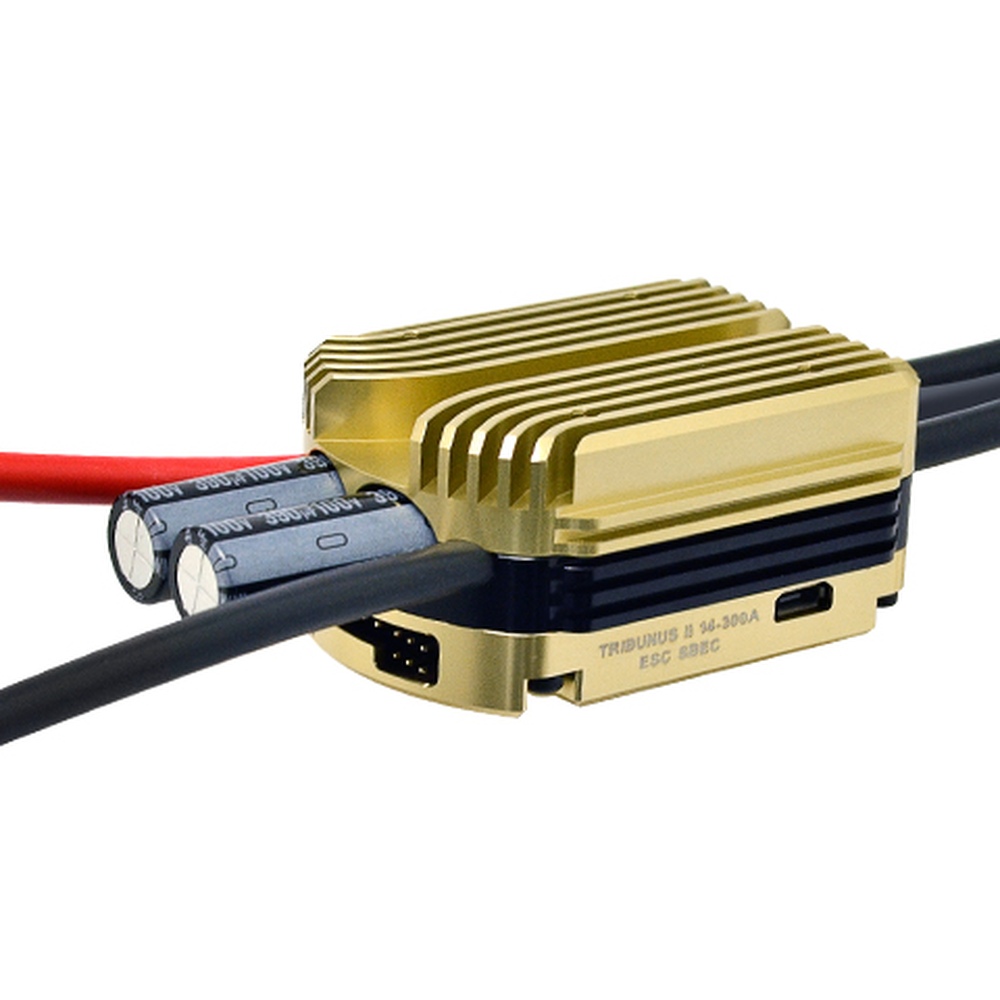

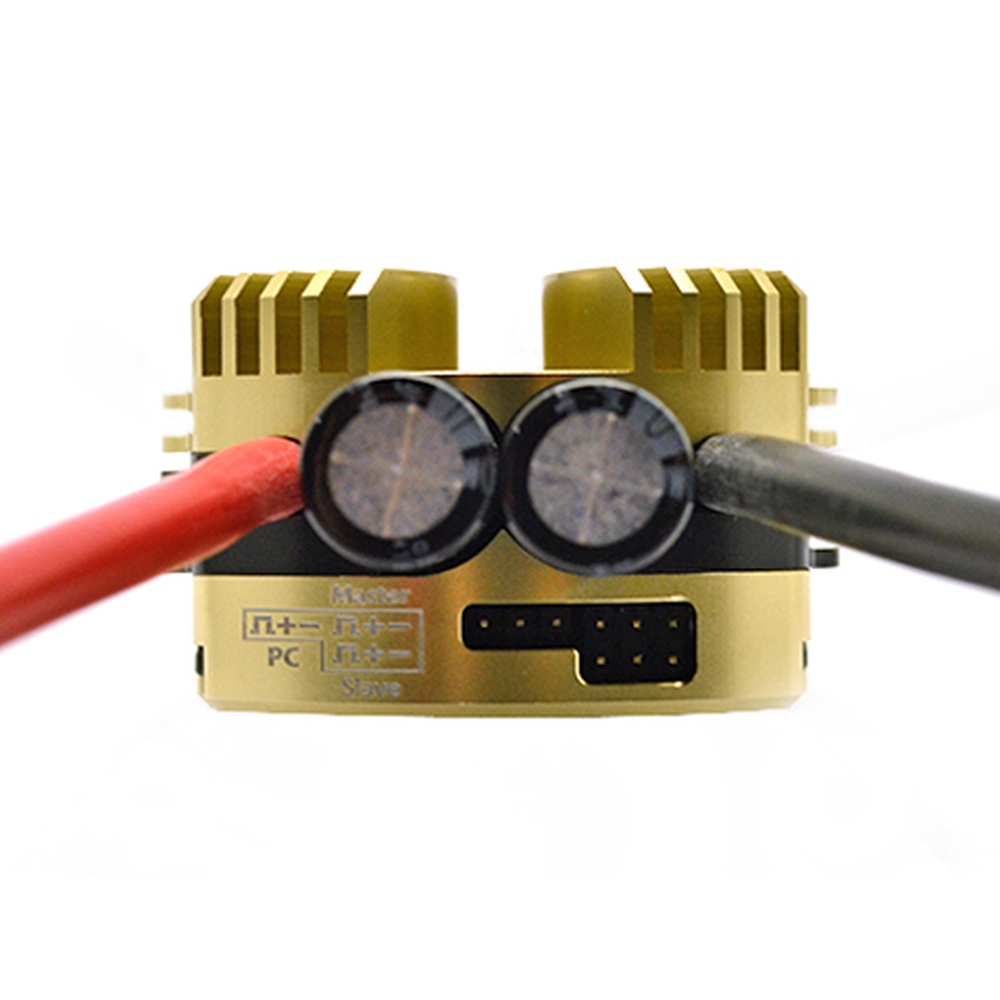

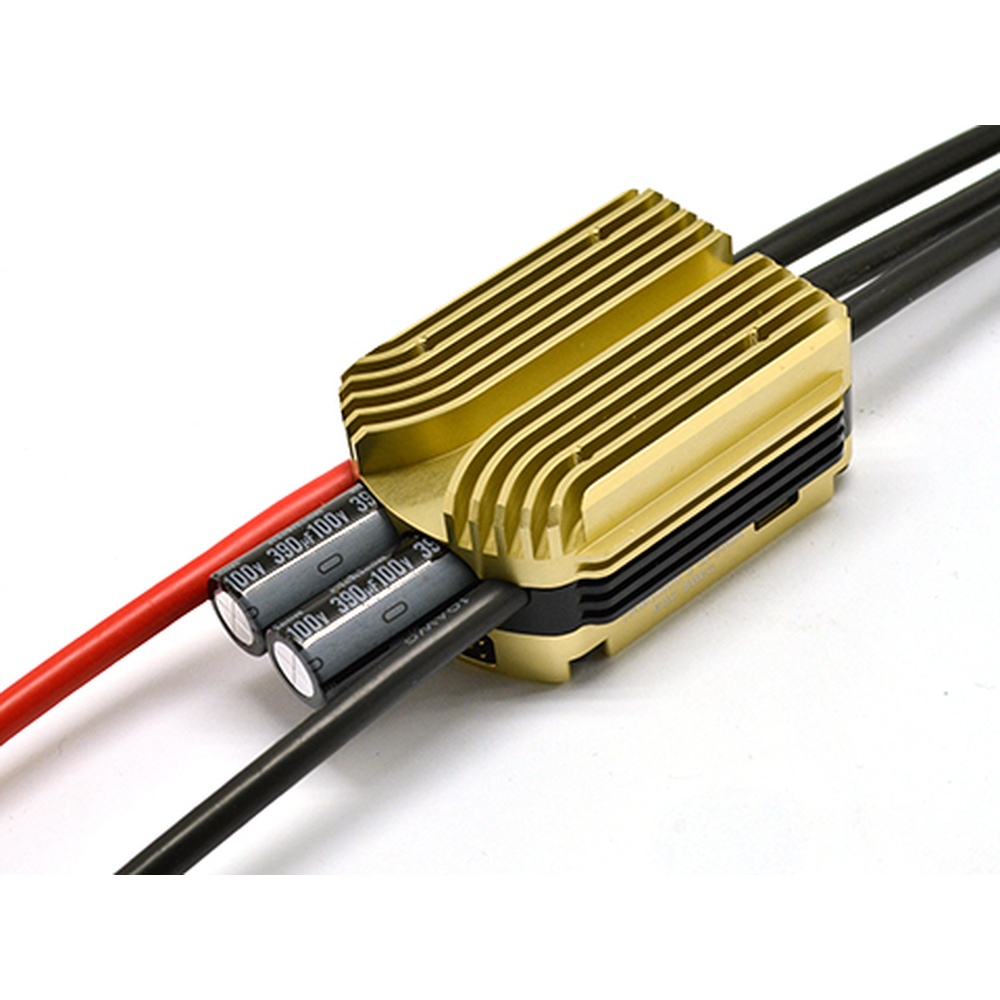

Scorpion Tribunus II 14-300A ESC SBEC is the updated version of the First generation of Tribunus 14-300A ESC. Scorpion has taken into account user feedback from the first-generation ESC, as well their own experience from other Tribunus II ESC’s, and improved the design significantly the Tribunus II 300A ESC.
New Features:
- Newly added USB port for PC connection with/ without a main power source
- Improved BEC Protection
- Futaba telemetry support without additional adaptor
- Android apps supported to allow you to configure or update the ESC via USB port without main power source
- Improved BEC current and voltage drop for high amps servos. 0.8v drop on 20a
- Added gear ratio and motor poles settings for Jeti and Futaba telemetry
- Increased log size to 64kB
- Optimized current protection
- More PC motor control function
- **Using up to16s HV Lipo will not void the warranty.
Features :
- Airplane and Heli mode,
- Stored and unstored Governor, external governor.
- Data Logging, Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3 and Futaba.
- ESC setup can be set by Mikado V control Radio.
- PC connectivity with USB micro cable (not included), Android connectivity (OTG cable needed) , V link II Cable, plus Diode adapter cable sold separately for optional use.
- Supported HvLi battery 14S total 61V **.
- Size: 90.7mm x 50mm x 31.9mm
- Weight: 244 Grams.
**Using up to16s HV Lipo will not void the warranty
Specifikationer
| Max Continuous Current | 300 Amps |
| Peak Current | 400Amps |
| Operating Voltage Range | 14-61 Volts ** |
| BEC Output voltage: | 5.1V to 8.3V adjustable. |
| Max Continuous BEC Output | 10 Amps @ 8.3 V |
| Peak BEC Output | 30 Amps/1s @ 8.3 V |
| On Resistance | 0.65 mOhms *2 |
| Size | 90.7mm x 50mm x 31.9mm (3.57 x 1.97 x 1.26 in) |
| Weight (Without Connectors) | 244g (8.61 oz) |
| Drive frequency | 8kHz – 32kHz |
Nedladdningar
- Scorpion Tribunus II (and II+) ESC User Manual
- Scorpion Tribunus Heli Program Sproto
- Tutorial / WARNING about using ESC’s with a Power Supply, or Long Battery Cables
- Scorpion V Link II Cable CH340 Driver (For all ESC use)
- Scorpion ESC USB driver (For all ESC with USB port use)
- How to update Tribunus firmware
- Using Tribunus with Futaba Telemetry Guide
- Jeti Telemetry Guide V1.2
- How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Vbar NEO
- DIY your spark suppressor system on a ESC
Included in the Box
- ESC
- Connection cable *2
Weight including packaging
- 627g
Video tutorials
Scorpion Tribunus ESC {Tutorial} – Connecting to PC Downloading SProto + Firmware Updates. Produced by Kyle Dahl
Mikado Proving Ground Produced by Kyle Dahl
Bobby Watts show you how to set up the Tribunus 14-200A ESC and Demonstration flight by Kyle Stacy
