Beskrivning

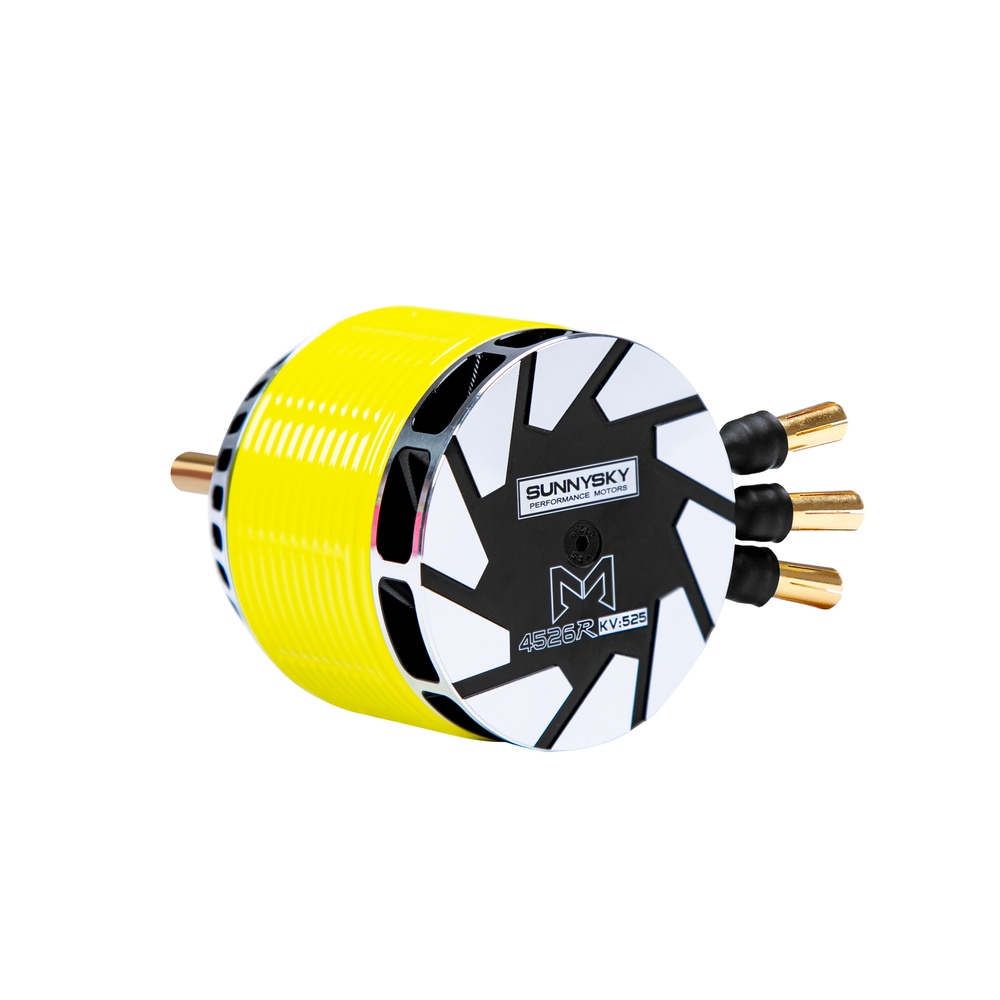

SunnySky M4526R 525kv Motor is from the new line of SunnySky Master series M45 motors. This motor is designed specifically for 600 to 700 class helicopters.
Specifikationer
| Motor Kv | 525 KV RPM/Volt |
| Weight | 488g Grams |
| Motor Body Dimensions | 52mm x 56.3mm |
| External Shaft Dimensions | 6mm x 36mm |
| Continuous Current | 110 Amps |
| Continuous Power | 5200 Watts |
| Peak Current | 170A |
| Peak Power | 8000 Watts |
| Max Lipo Cell* | 12s |
| Stator Diameter | 45.5 mm |
| Stator Thickness | 26 mm |
| No. of Stator Arms | 12 |
| No. of Stator Poles | 10 |
| Motor Wind | 5+4 Turn Delta with thick wire |
| Mounting Hole and Screws | Φ30mm*4-M4 |

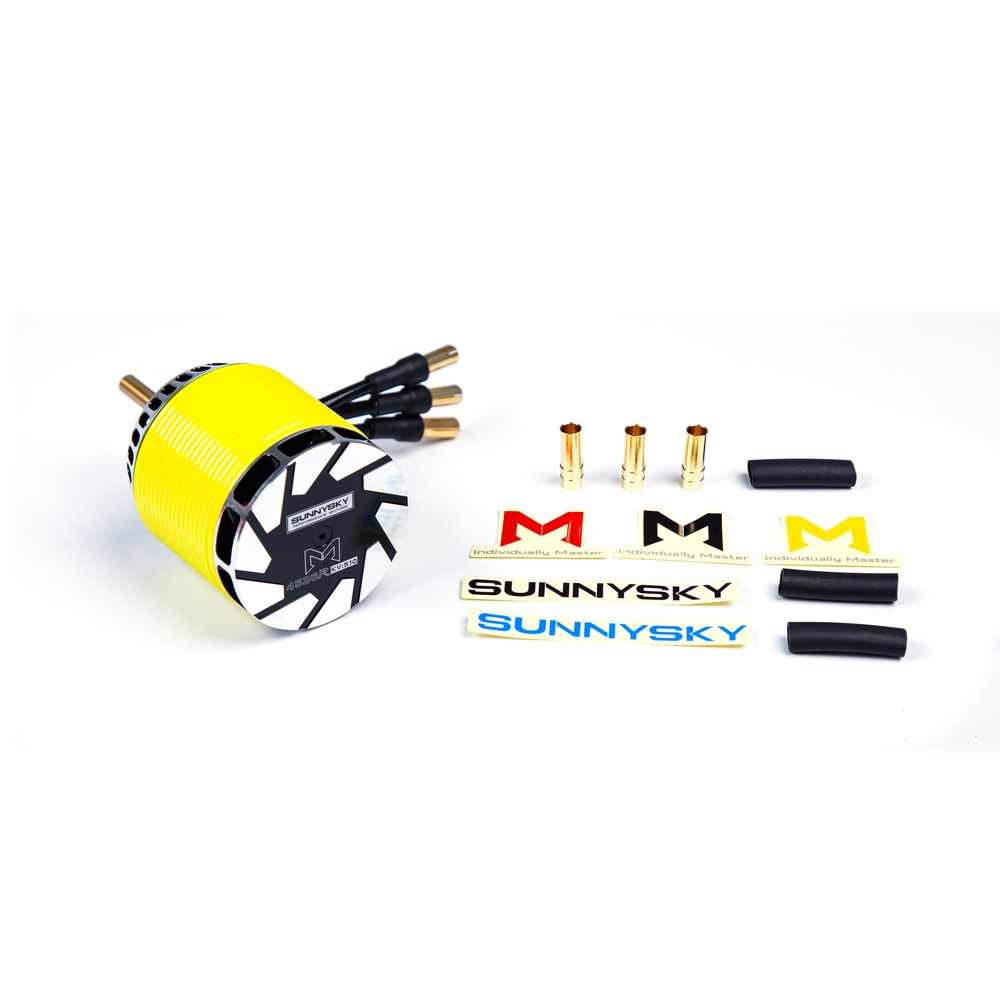

Included in the Box
1 x Motor
3 x 6mm Female Bullet Connectors
3 x Heat Shrink
1 x Sticker sheet
Weight including packaging
700g
