La description

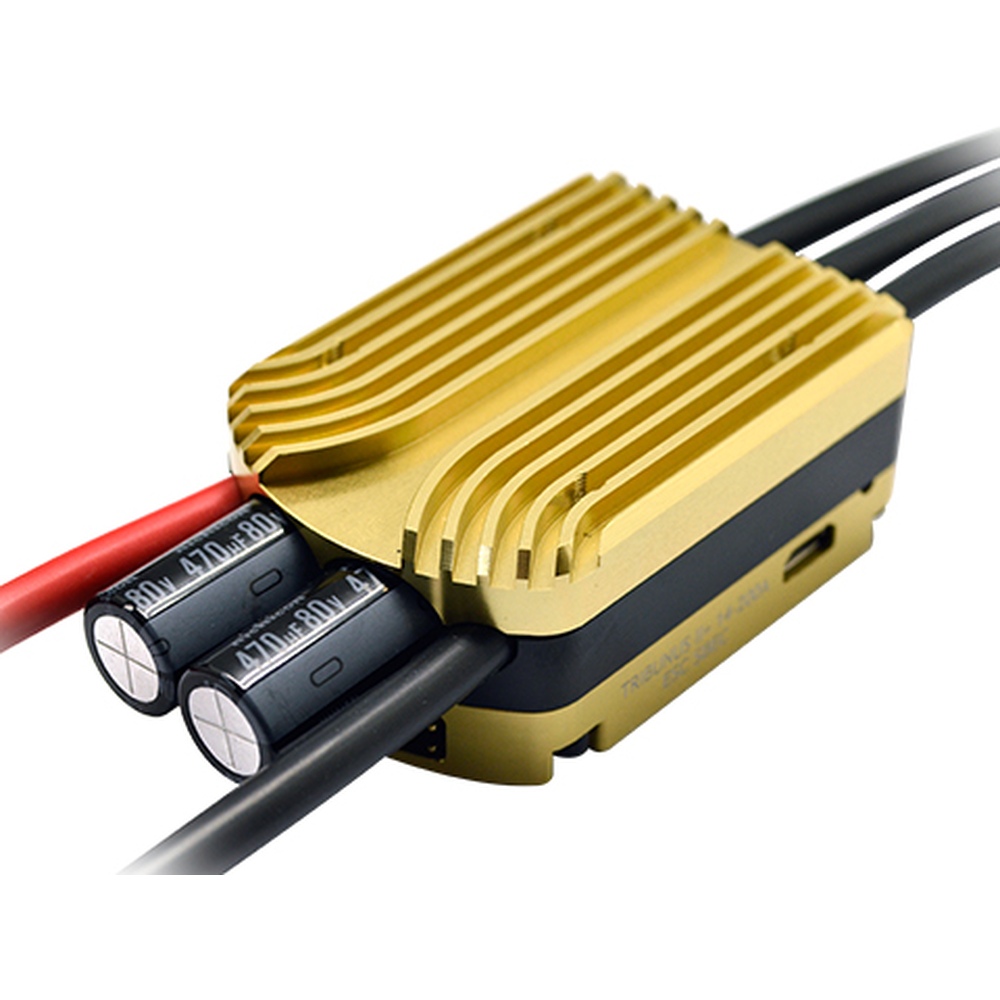

The successor to the wildly popular Tribunus II 14-200, the Tribunus II + 14-200A has all of the same characteristics as before, but now with new added features! The primary change is the addition of the USB port on the side which allows the ability to connect directly to your PC for programming via USB cable! No more VLINK II cable needed! Other changes include a more robust hardware design, increased memory for the data logging function, and many other changes which help us achieve our goal of providing the best ESC available on the market.
New Features

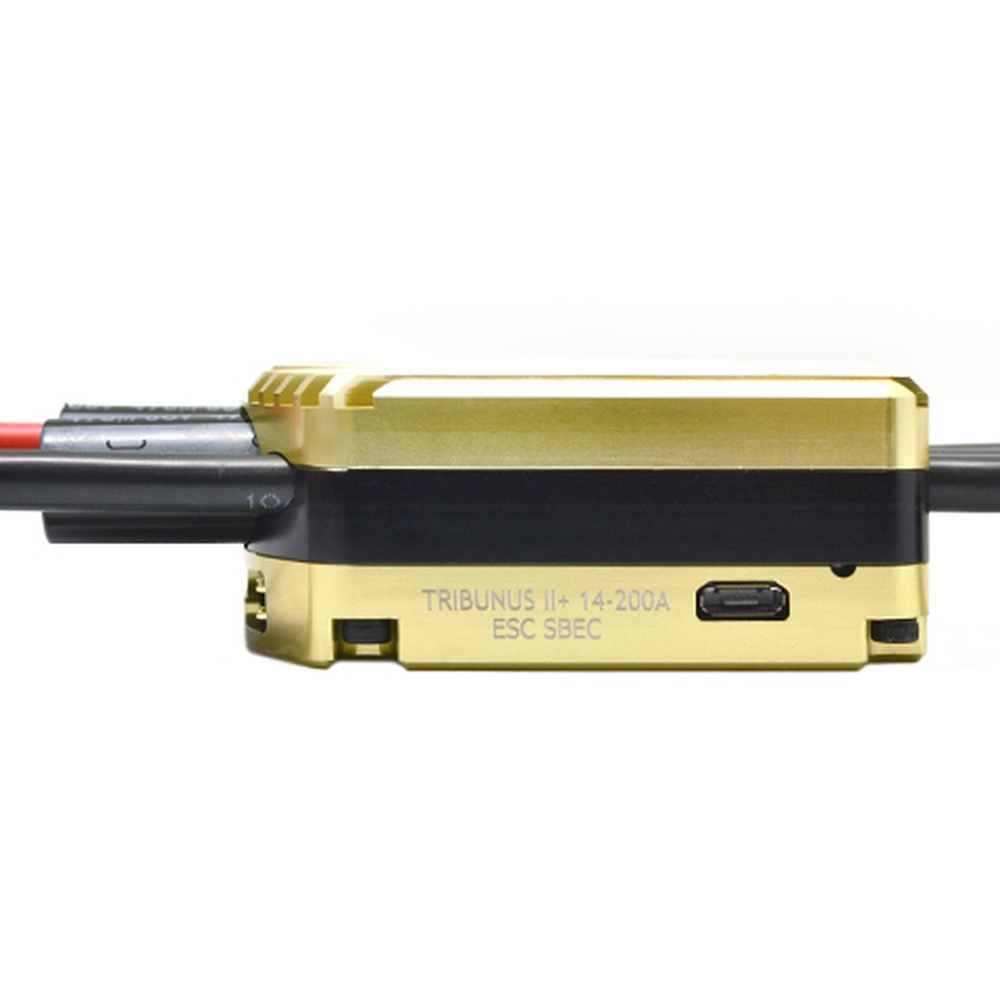

- Newly added USB port for PC connection with/without a main power source
- Improved BEC Protection
- Futaba telemetry support without additional adapter
- Android apps supported to allow you to configure or update the ESC via USB port without main power source
- Log file is available to download through Android apps
- Improved BEC current and voltage drop for high amps servos. 0.8v drop on 20a
- Added gear ratio and motor poles settings for Jeti and Futaba telemetry
- Increased log size to 64kB
- Optimized current protection
- More PC motor control function
Features :
- Airplane and Heli mode.
- Stored and unstored Governor, external governor.
- Data Logging, Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3 and Futaba.
- ESC setup can be set by Mikado V control Radio.
- PC connectivity with USB micro cable (not included), Android connectivity ( OTG cable needed) , V link II Cable, plus Diode adaptor cable sold separately for optional use.
- Supported HvLi battery 14S total 61V.
- Size: 86.7mm x 45mm x 27.6mm
- Weight: 224 Grams.
Téléchargements
- Scorpion Tribunus II (and II+) ESC User Manual
- Scorpion Tribunus Heli Program Sproto
- Tutorial / WARNING about using ESC’s with a Power Supply, or Long Battery Cables
- Scorpion V Link II Cable CH340 Driver (For all ESC use)
- Scorpion ESC USB driver (For all ESC with USB port use)
- How to update Tribunus firmware
- Using Tribunus with Futaba Telemetry Guide
- Jeti Telemetry Guide V1.2
- How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Vbar NEO
- DIY your spark suppressor system on a ESC
Caractéristiques
| Max Continuous Current | 200 Amps |
| Peak Current | 250Amps |
| Operating Voltage Range | 14-61 Volts |
| BEC Output voltage: | 5.1V to 8.3V adjustable. |
| Max Continuous BEC Output | 10 Amps @ 8.3 V |
| Peak BEC Output | 20 Amps/1s @ 8.3 V |
| On Resistance | 0.55 mOhms *2 |
| Size | 86.7 x 45 x 27.6 mm (3.41 x 1.77 x 1.08 in) |
| Weight (Without Connectors) | 224g (7.9 oz) |
| Drive frequency | 8kHz – 32kHz |
| Cable gauge | 10 AWG |
Included in the Box
- ESC
- Connection cable *2
Weight including packaging
- 615g
Video tutorials
Scorpion Tribunus ESC {Tutorial} – Connecting to PC Downloading SProto + Firmware Updates. Produced by Kyle Dahl
Mikado Proving Ground Produced by Kyle Dahl
Bobby Watts show you how to set up the Tribunus 14-200A ESC and Demonstration flight by Kyle Stacy
