Beskrivelse
OMPHobby M4 Max is based on the proven M4 air-frame with all its beloved features. Swinging 420mm blades, the MAX brings much lower disc loading enabling smoother and more dynamic flying styles with a much floatier feeling.
NOTE: Please see M4 Max Custom PNP Combo for recommended components!
ADVARSEL! Dette er ikke et legetøj. Forkert brug kan medføre alvorlig personskade. RC-simulatortræning anbefales, før du forsøger at flyve denne model. Ikke egnet til børn.
Læs mere!

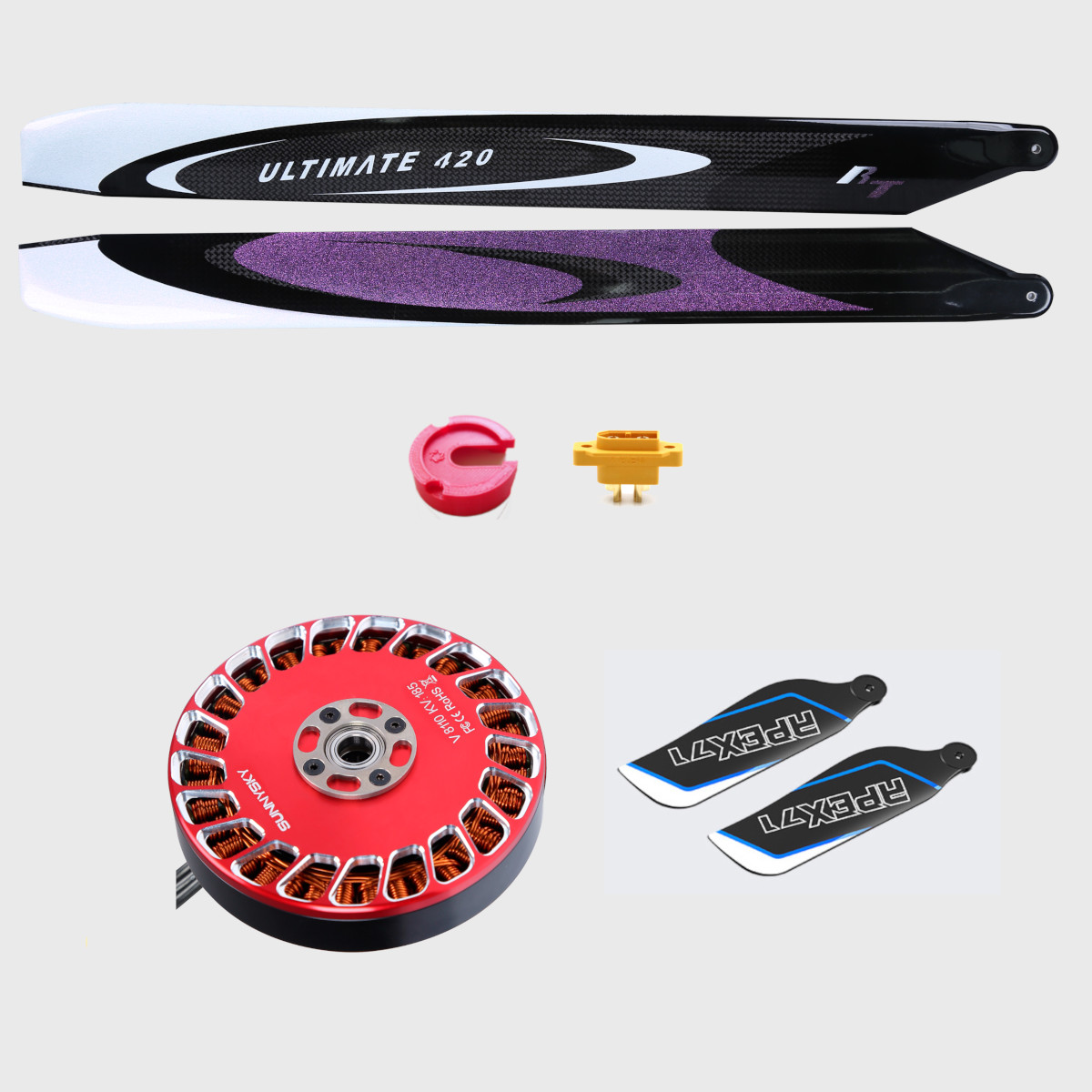

Inkluderer
- M4 Max RC Helicopter Airframe Kit (Requires Assembly)
- Brushless Motor: Sunnysky V8110KV: 185
- 420mm RotorTech 420 Ultimate Main Rotor Blades
- 71mm Tail Rotor blades
- Amass MR60-F and XT60E-M connectors for ESC
- OriginHobbies swash leveling tool
- Instruction Manual
Nødvendige komponenter
-
- 1x ESC: 80A+ ESC [e.g. Scorpion Tribunus iii 06 80A, OMP 85A ESC]
- 3x Cyclic Servos, 12mm [e.g. OMP DS2312C/ KST DS215MG]
- 1x Tail Servo, 15mm [e.g. OMP DS3515 / KST DS565X] or 12mm [e.g. OMP DS2312T / KST DS215MG]
- 1x Flybarless controller [e.g. MSH Brain2 / Vbar EVO / Radiomaster NEXUS /BeastX / Bavarian Demon / Spirit]
- 1x Radio Transmitter (6-channel or more) [e.g. Radiomaster TX16S / TX12 / Boxer / Zorro / Mikado VBar Control]
- 1x Radio Receiver (6-channel or more) [e.g. Frsky R-XSR]
- 1x LiPo Battery: 6S 1800mAh-2200mAh. Recommended battery weight: 295-325g
- for extreme 3D: Gens Ace 2000mAh 6S1P HV
- for sport / smooth 3D: SLS XTRON 2200mAH 6S1P / Gens Ace 2500mAh 6S1P
- Long flights:
- 1x ESC: 80A+ ESC [e.g. Scorpion Tribunus iii 06 80A, OMP 85A ESC]
Videoer
Funktioner og design
- Designed by Jonas Wackershauser
- Based on the proven M4 airframe with all its beloved features
- Fits up to 420mm main blades
- Three new, tri-colored, highly visible canopy designs
- RotorTech 420 Ultimate, the best 420 size blade available, included with Kit and PNP
- New, over 30% larger R80-7 main motor to properly drive the larger main blades
- Large 22mm diameter carbon fiber tail boom
- Single-piece, lightweight CNC-machined aluminium tail rotor housing
- 5mm wide tail belt for excellent power transfer
- Tail rotor features dynamic weights to reduce yaw servo loads
- Teal accents on white landing gear, carbon boom and tail fin to match all three new canopies
- Optional OMPHOBBY DS3515T 15mm yaw servo available
- Certain battery sizes can be shared with M4
- Flight times 3-15 minutes on 6S 2000mAh 70C
- New OMPHOBBY 85A ESC in the PNP combo
- Flying weight appx. 1500g
Size
EN
FI
SV
DA
DE
FR
Joni K. (verificeret ejer) -
Easy to assemble, a light heli for the blade size. The ball joint links are from softer plastic than other brands; if tightened at a slight angle, they can break. There are no extra ball joint links in the kit.
Ruben V. (verificeret ejer) -
Amazing heli that came together like a dram. Flies very well. One note of you do not use the stock 35mm tail servo but one that doesn’t have a center hole for mounting the servo (in the little tabs on the servo itself) you will need 4 button head screws that fit.
Giuseppe Nodari (verificeret ejer) -
Toppppppppppppppppppp
