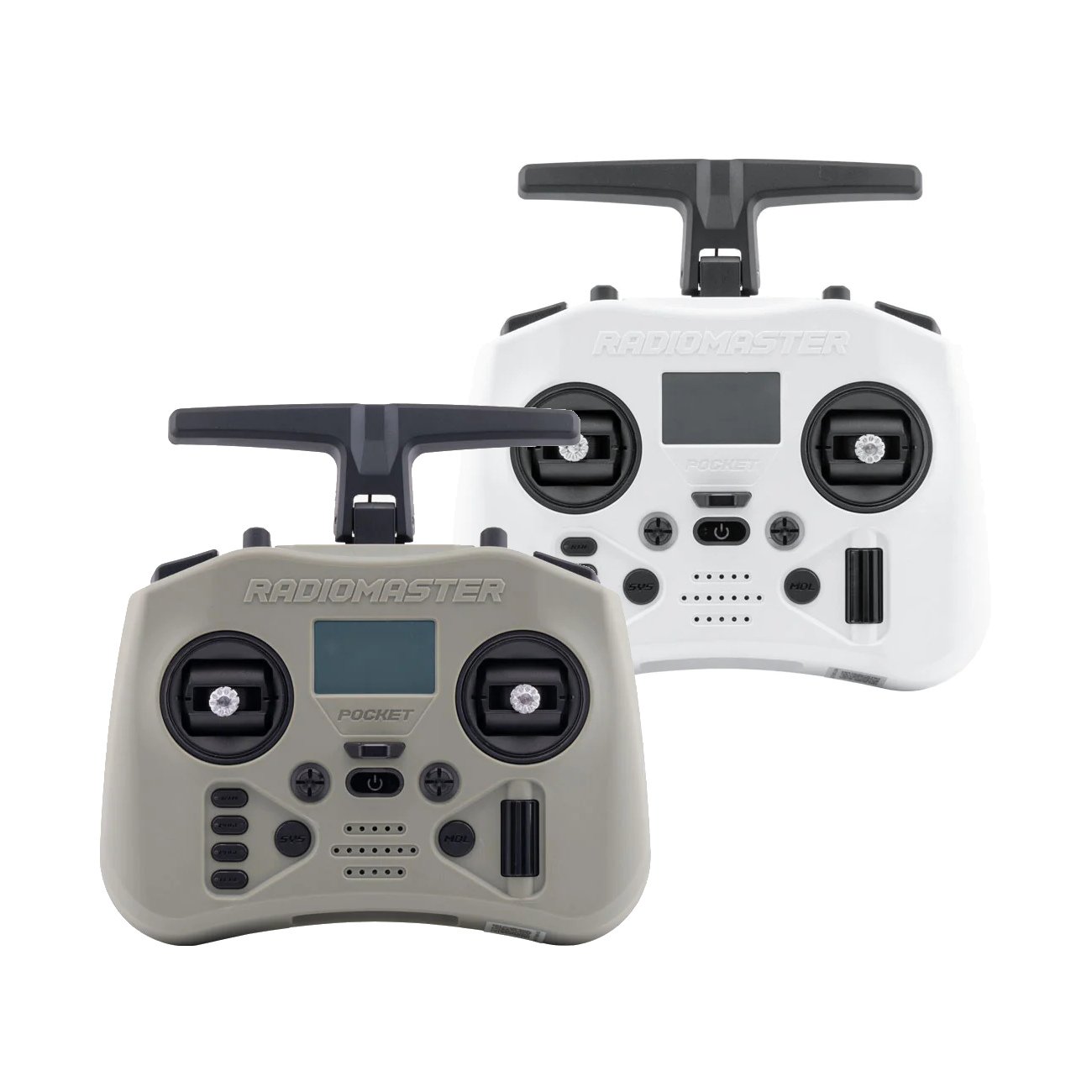

Radiomaster Pocket Crush Radio Controller M2 – ELRS

Beskrivelse

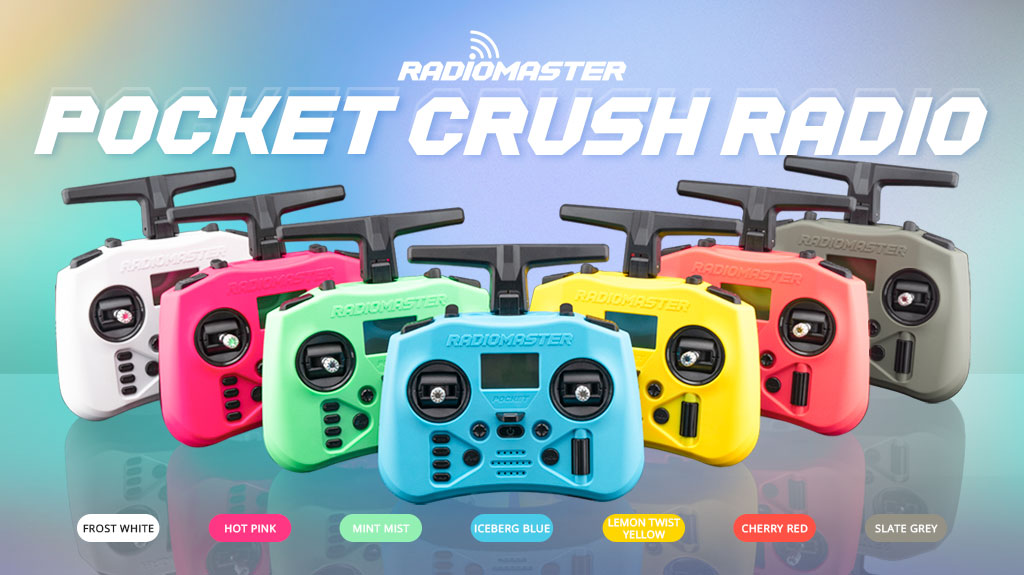

RadioMaster Pocket Crush Radio Controller is a small, lightweight radio that packs a big punch. Compact, affordable and available in seven stunning colors—’Slate Grey,’ ‘Frost White,’ ‘Mint Mist,’ ‘Hot Pink,’ ‘Cherry Red,’ ‘Iceberg Blue,’ and ‘Lemon Twist Yellow’—each designed to inspire and excite. —The Pocket Crush has a big impact in a small package!

It is perfect for those who want to add a splash of color and personality to their RC adventures without breaking the bank, or those looking for a compact backpack solution. Whether you are a beginner or a seasoned pilot, the Pocket Crush is your ideal companion for colorful and exciting flights.

It come preinstalled with EdgeTX firmware. The Pocket is also equipped with removable stick ends and a fold-able antenna, making it easy to transport and store. It is compatible with 18650 batteries, which provide long battery life for hours of fun.

Please note:

• Ships with latest EdgeTX and module firmware (Only at OriginHobbies)

• Batteries are not included. You will need 18650 Li-Ion cells for this Radio [3200mAh].

Features

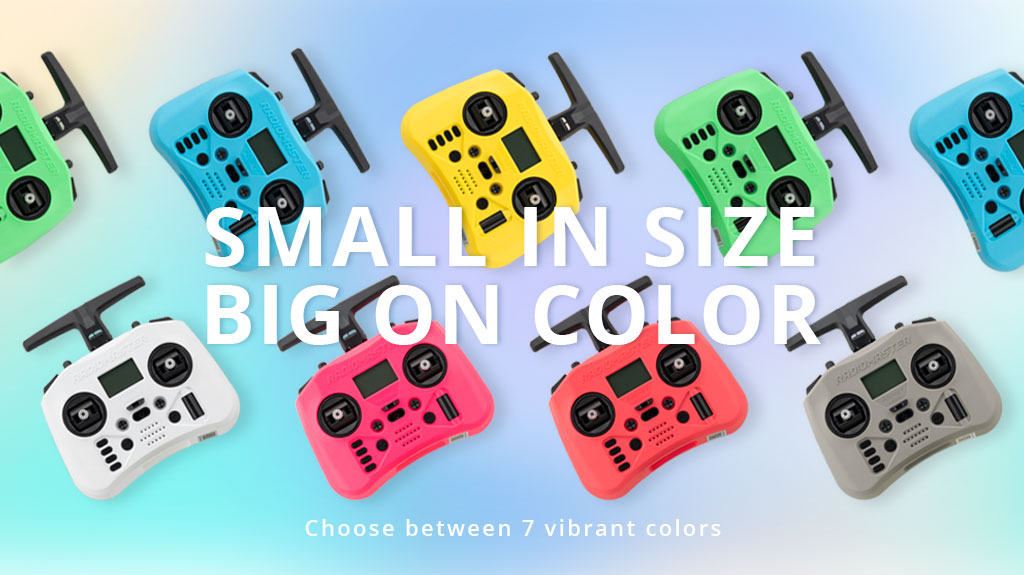

• Optional colors – Slate Grey / Frost White / Mint Mist / Hot Pink / Cherry Red / Iceberg Blue / Lemon Twist Yellow
• Available with built-in ExpressLRS Backpack
• Preinstalled with EdgeTX firmware
• 18650 Batteries, all the power you need for hours of fun

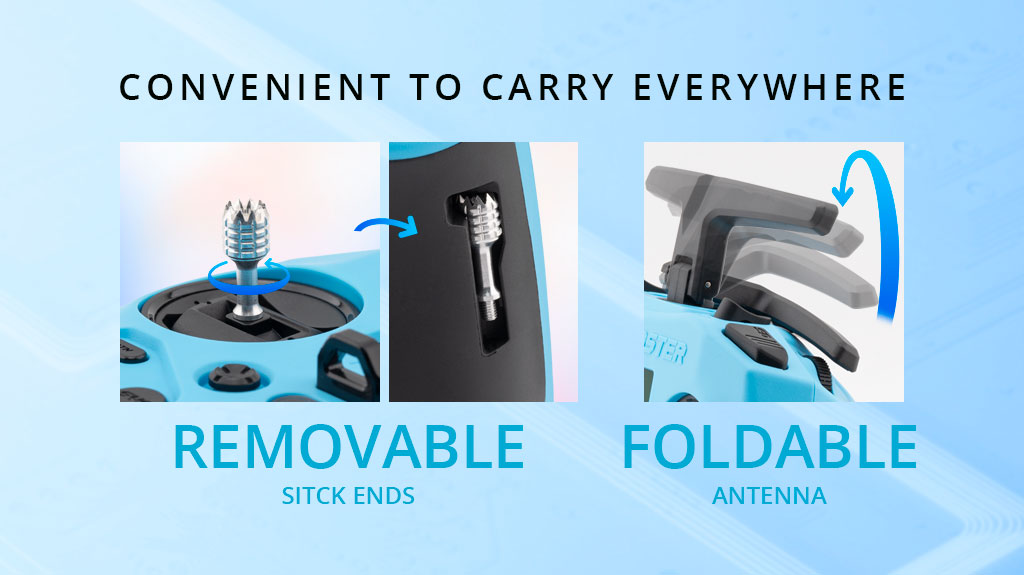

• Portable and lightweight design with removable stick ends and foldable antenna
• Features X5 hall effect gimbals as standard for smooth cantering & precise response, upgradable to AG01 NANO CNC Hall effect gimbals
• Built-in LED lights help visualize your switch inputs
• Backlit LCD Screen offering a perfect balance of size and functionality
• Trim buttons for easy channel trimming
• External Module Bay compatible with RadioMaster Nano-size modules and TBS Nano Crossfire / Nano Tracer

Compact size

Removable gimbals to make it even more compact to carry.

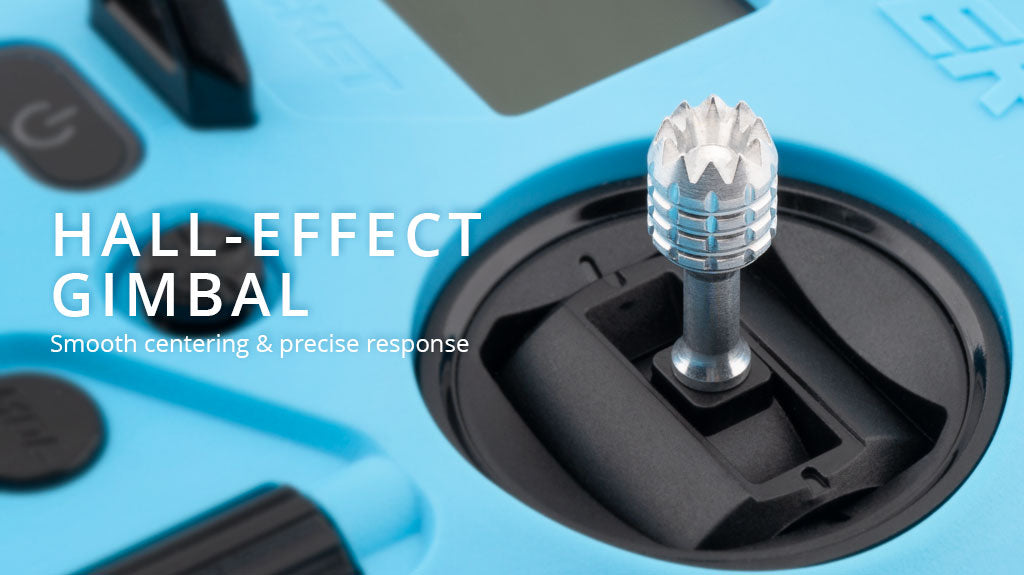

Hall Gimbals

Hall Gimbals offer smooth centering and precise response.

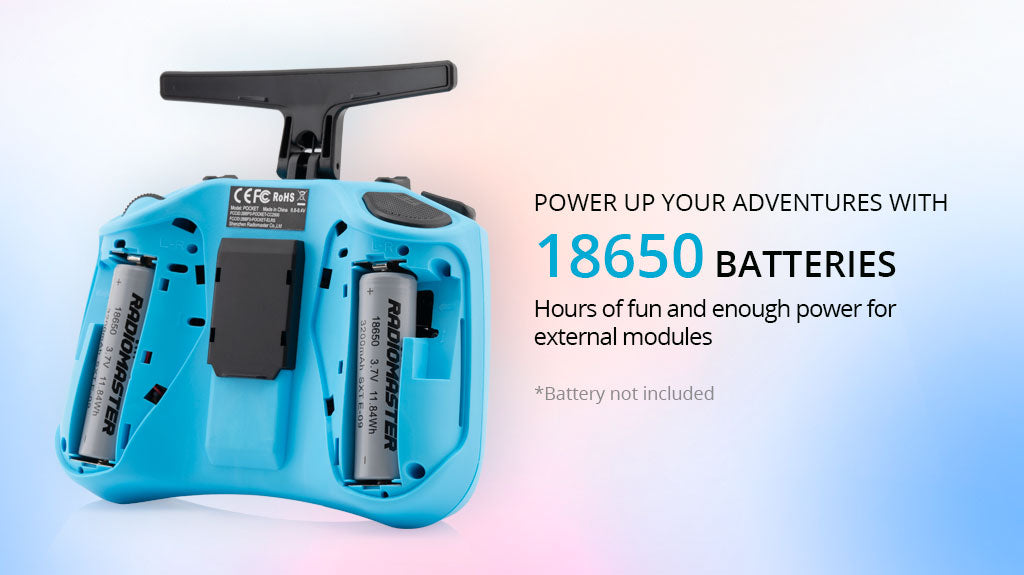

Supports 18650 Li-Ion battery cells

Allows for dual 18650 Li-ion cells.

Supports USB Simulator

Support all popular USB simulators that work with USB HID protocol. Type-C USB cable is provided.

ExpressLRS BLE JOYSTICK MODE

Allows for Bluetooth connection to PCs, tablets and phones with BLUETOOTH function to play simulators and games.

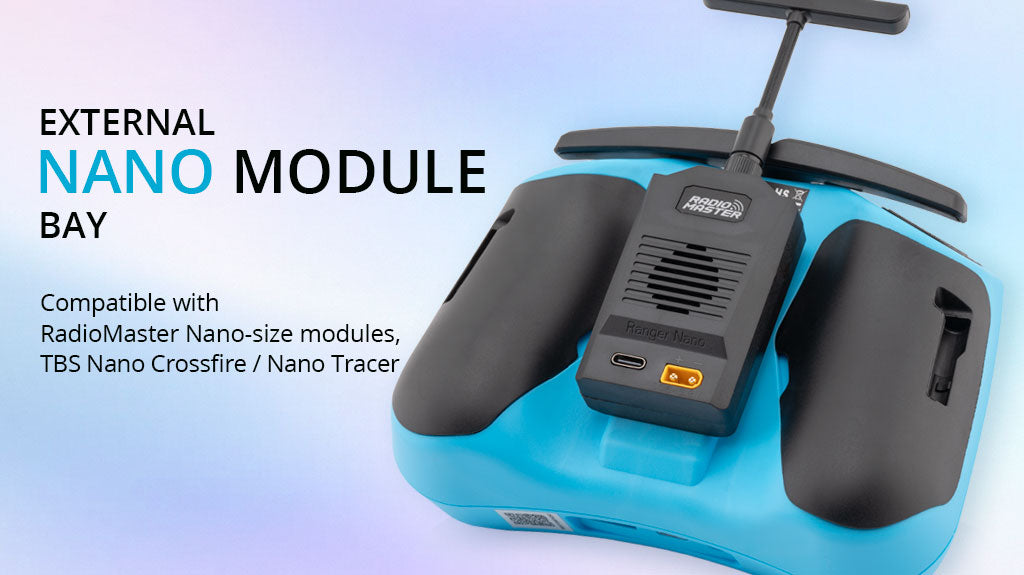

External Nano Module bay

Support additional RF protocols via the Nano module expansion bay.

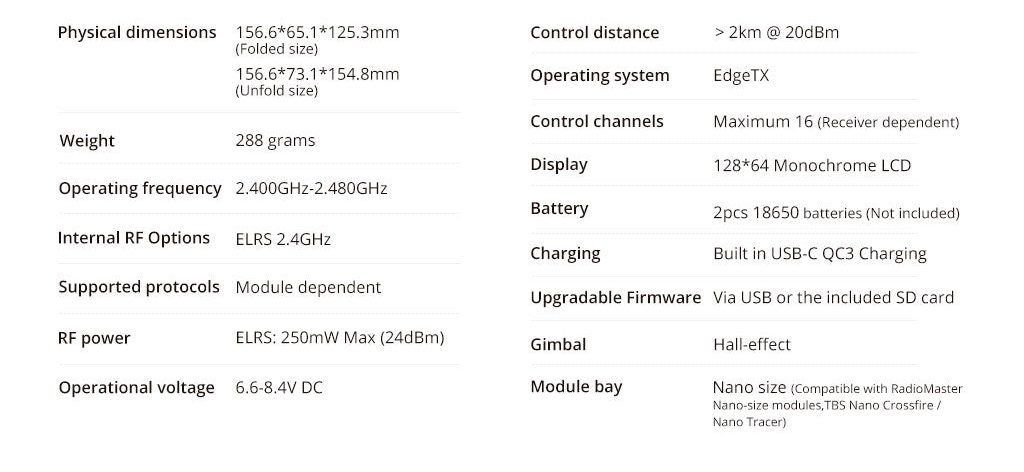

specifikationer

• Item: Pocket Crush Radio Controller
• Physical dimensions: 156.6*65.1*125.3mm (Folded size) /156.6*73.1*154.8mm (Unfold size）
• Weight: 288 grams
• Operating frequency: 2.400GHz-2.480GHz
• Internal RF Options: ELRS 2.4GHz
• Supported protocols: Module dependent
• RF power: ELRS: 250mW Max (24dBm)
• Operational voltage: 6.6 – 8.4v DC
• Control distance: > 2km @ 20dBm
• Operating system: EdgeTX
• Control channels: Maximum 16 (Receiver dependent)
• Display: 128*64 Monochrome LCD
• Battery: 2pcs 18650 batteries (Not included)
• Charging: Built in USB-C QC3 Charging
• Upgradable Firmware: Via USB or the included SD card
• Gimbal: Hall-effect
• Module bay: Nano size (Compatible with RadioMaster Nano-size modules, TBS Nano Crossfire / Nano Tracer )

Size

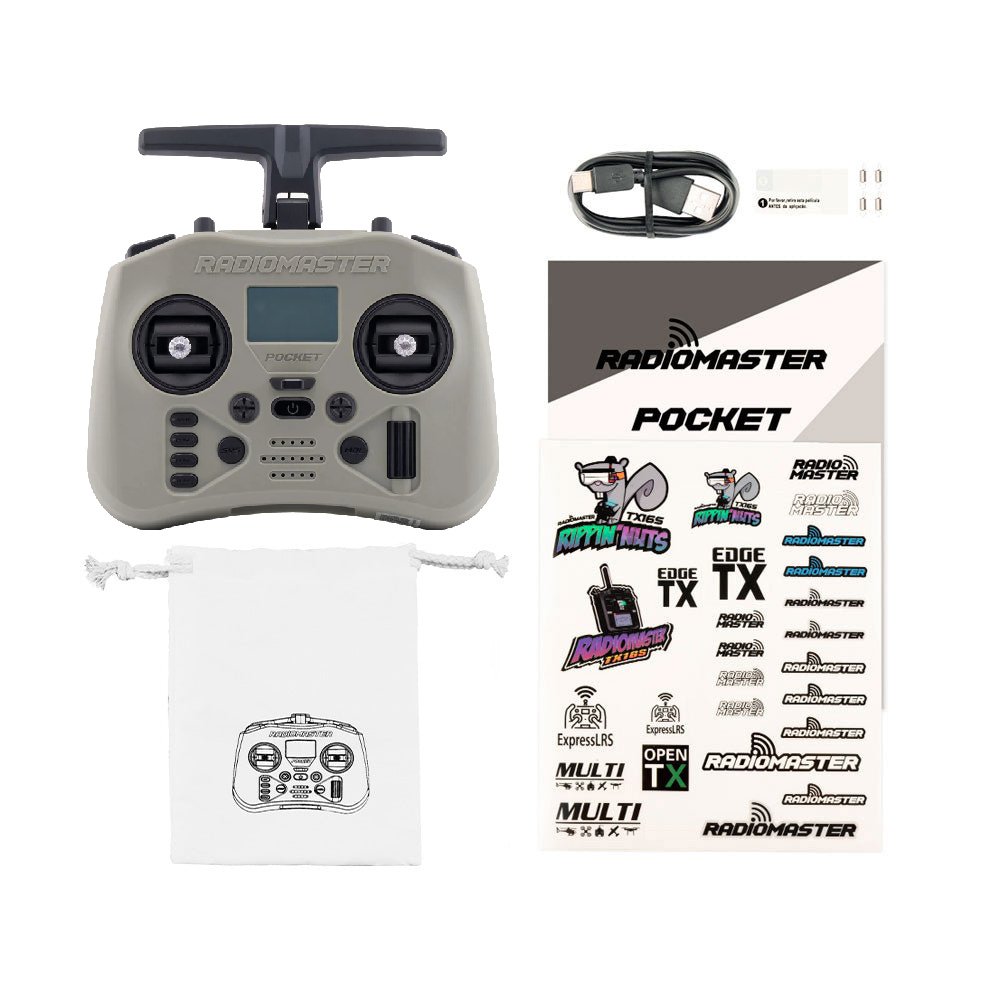

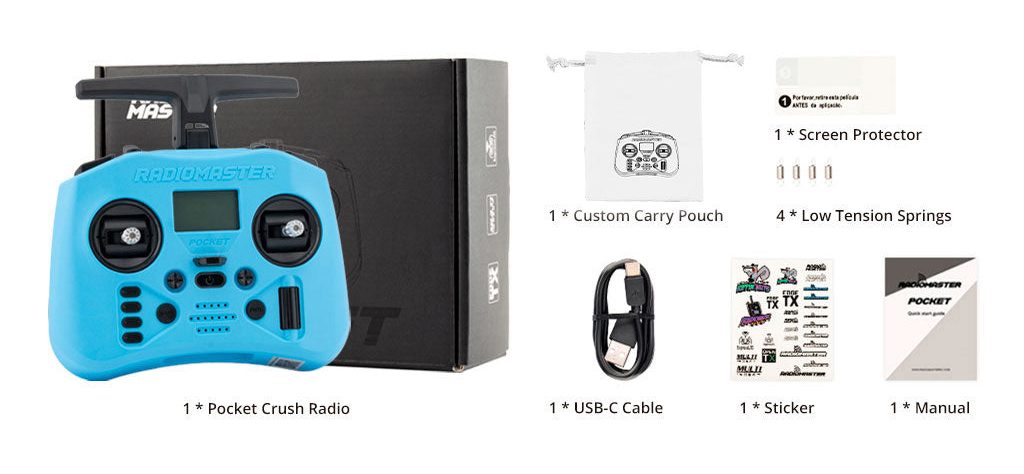

Package Includes

• 1 * Pocket Radio
• 1 * Custom Carry Pouch
• 1 * USB-C Cable
• 1 * Screen Protector
• 1 * Sticker
• 4 * Low Tension Springs
• 1 * Manual

Optional Accessories

• Radiomaster Lanyard
• Radiomaster Multi-Protocol 4in1 module
