OSHM4117 OMPHOBBY ESC LCD Program Card G2

Beskrivelse

OMPHobby ESC LCD Program Card G2 for OMPHobby M4 ESC.

ESC parameters

The LCD Program card allows you to change the below parameters of the ESC.
NOTE: parameters that can be adjusted depend on ESC hardware and firmware version.

1. Brake Type: Normal, Reverse
2. Brake Force: 0%, 1%, 2%, .. , 100%
3. Timing: Auto, 0°, 5°, 10°, 15°, 20°, 25°, 30°
4. Motor Rotation: CW, CCW
5. SR Function: ON, OFF
6. Battery Cells: Auto, 3S，4S, 5S, 6S
7. Low Voltage Cutoff Threshold: Disabled, NiMH 60%, 3.0V, 3.2V, 3.4V, 3.6V, 3.8V
8. Low Voltage Cutoff Type: Soft Cutoff, Hard Cutoff
9. BEC Voltage: 6.0V, 7.4V, 8.4V
10. Acceleration: 0, 1, 2, 3
11. Start-up Power: 1, 2, 3
12. Flight Mode: Ext-gov, *Helicopter StoGov
13. Governor Parameter P: 0-9
14. Governor Parameter I: 0-9
15. Telemetry: Real Time Data, SBUS-2
16. Restore Defaults
17. Pole count and Gear Ratio for RPM calculation

Data log Display:

1. Min Battery Voltage
2. Max ESC Temperature

Connection diagram

Downloads

• User manual

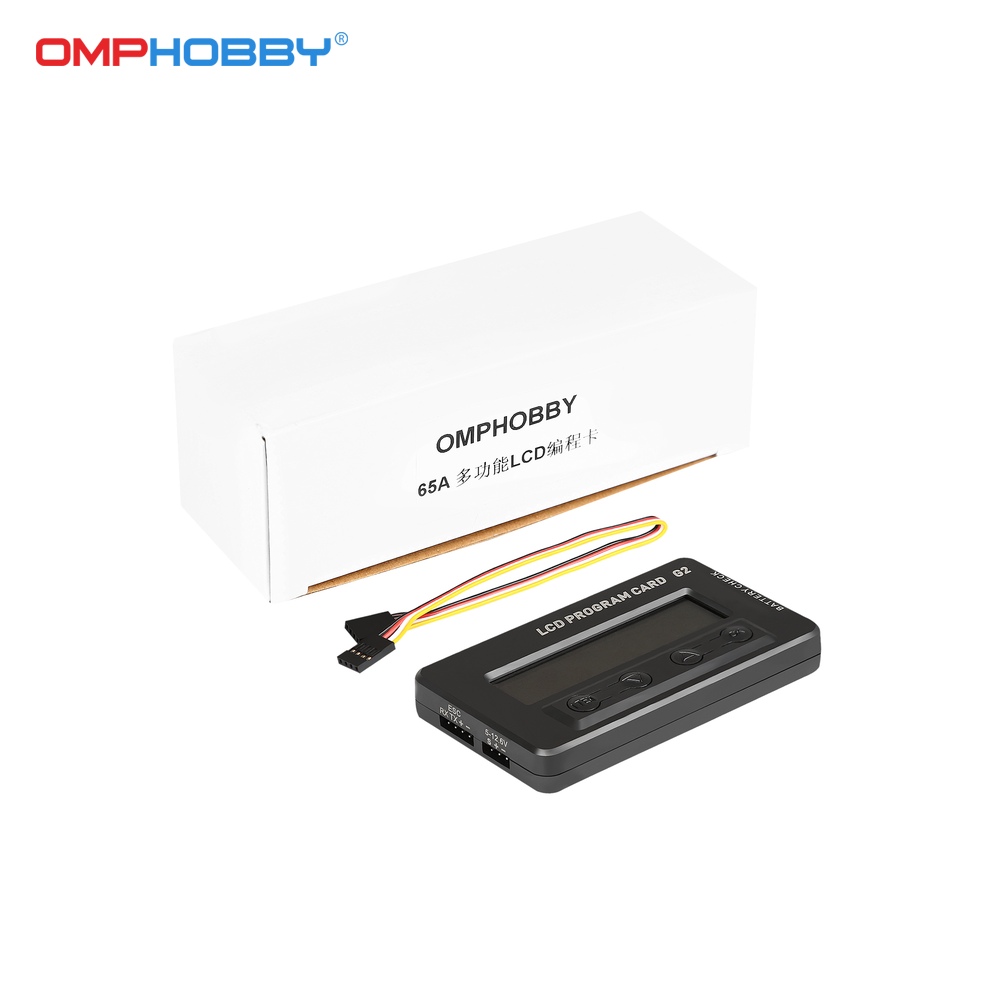

Inkluderer

LCD Program card x1
ESC Cable x1
Instruction Manual
