Radiomaster Ranger Nano 2.4GHz ELRS Module LBT

Beskrivelse

Radiomaster Ranger Nano 2.4GHz ELRS Module LBT features up to 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (RadioMaster Zorro and more) to enjoy all that ELRS has to offer.

This module is compatible with Radiomaster Zorro and Pocket.

OBS:

• pre-installed EU-LBT firmware maximum output power: 100 mW
• This module does not fit on Radiomaster TX12 or TX16S or Boxer. For TX12, TX16S, Boxer or JR style module bay please see Radiomaster Ranger Micro.

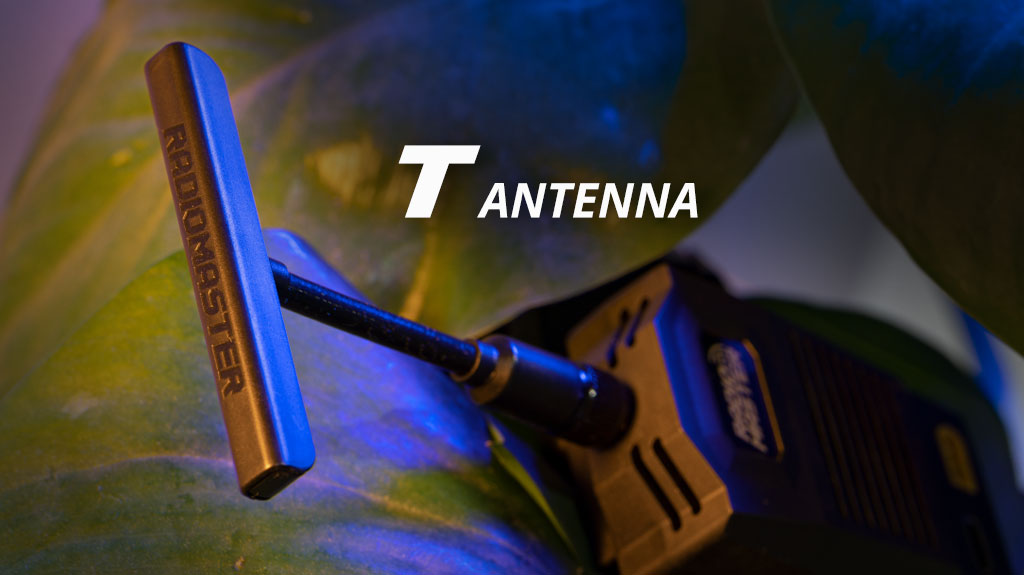

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

Features

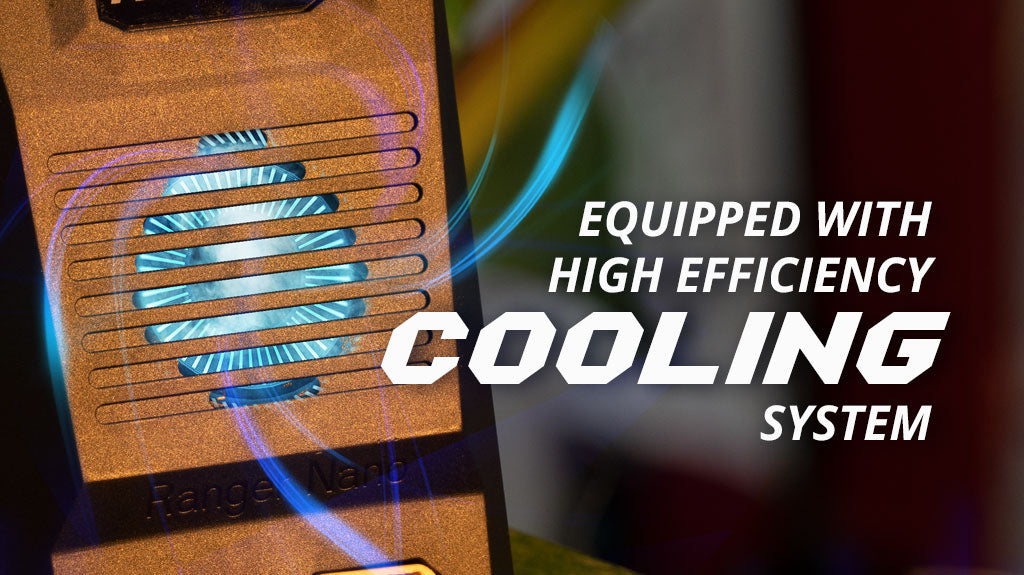

• High-efficiency cooling system

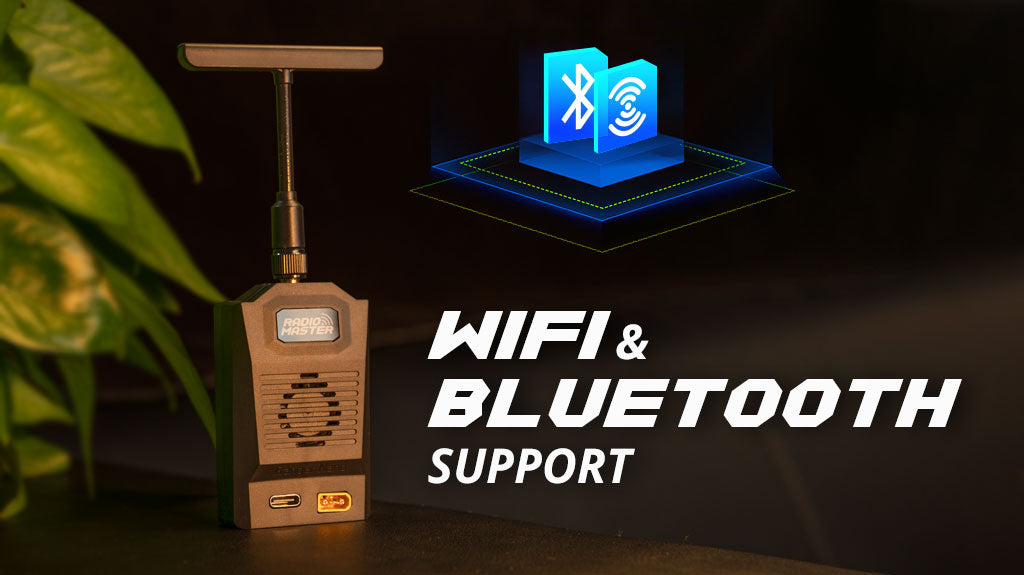

• Wifi and Bluetooth support

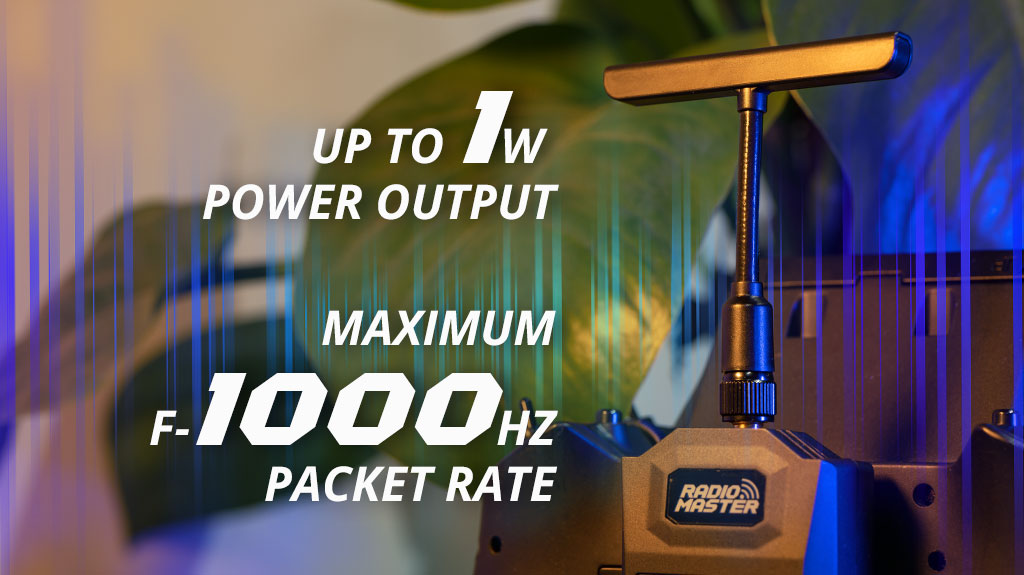

• Packet rates up to F-1000Hz
• Up to 1Watt Power output
• T-antenna included
• With the Nano connector, support Zorro radio

specifikationer

• Item: Ranger Nano Module
• Regulatory Domain: ISM2400
• MCU: ESP32(main), ESP8285(aux,as ESP backpack)
• RF chip: SX1281IMLTRT
• Frequency Range: 2400 MHz – 2480 MHz
• Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
• Minimum receiver refresh rate: 25Hz
• RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
• Wifi Support: Yes
• Bluetooth support: Yes
• XT30 Power supply voltage: DC 6V – 16.8V
• Weight: 48g (with antenna) / 39g (without antenna)
• Dimension: 136*42*26mm (with T antenna) / 74*42*26mm (without antenna)

Size

Package Includes

• 1 * Ranger Nano Module
• 1 * T Antenna

Need receivers too? Purchase the Ranger Nano Combo, which includes the following items:

• 2 * RP1 V2 LBT ExpressLRS 2.4ghz Nano Receiver
• 1 * RP2 V2 LBT ExpressLRS 2.4ghz Nano Receiver
