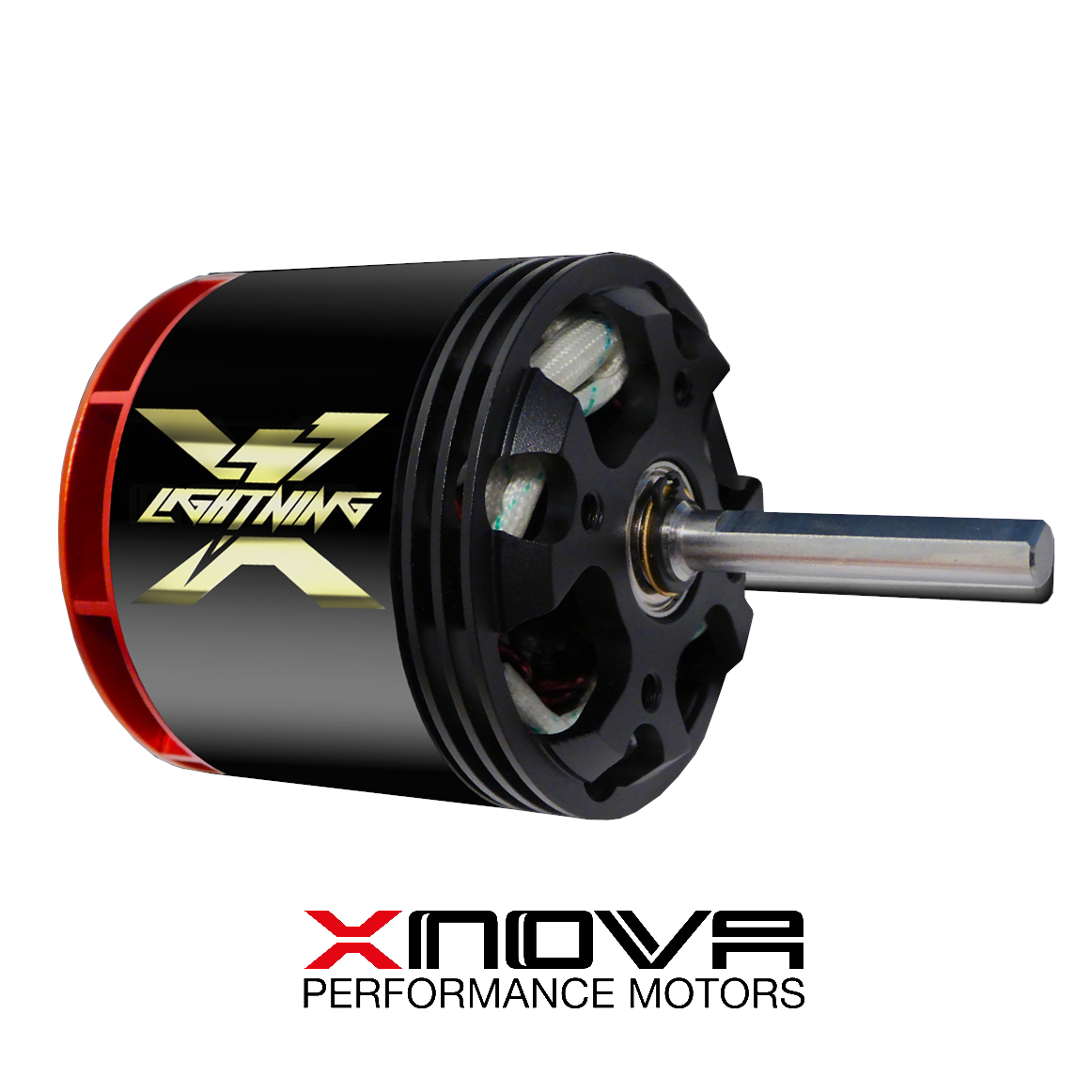

Xnova Lightning 4530-525kv Motor 11000W (12S) Shaft A 700 class

Beskrivelse

Xnova lightning 4530-525KV high performance outrunner motor has been specially designed for designed for extreme 3D flying in 690-770mm helicopter where highest power to weight ratio is important. Recommended for specially 12S.

Suitable for OMPHobby M7 and SAB ILGoblin PRO 700.

The Xnova V3 lightning series is the highest level of motor performance money can buy nowadays.

Highlights

• Improved higher efficiency with thinner stator lamination, designed with integrated cooling system resulting in lower temperature.
• Increased power output by the use of thicker hand wound YY single strand copper wires, heat resistant up to 300 degrees C.
• High-performance neodymium magnets, heat resistant up to 180 degrees C.
• All other features same as XTS series.

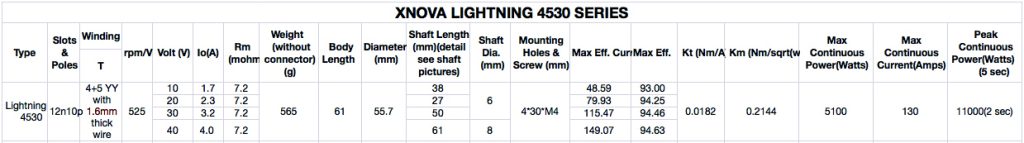

specifikationer

Motor Kv	525KV RPM/Volt
Weight	565g
Motor Body Dimensions (no shaft)	55.7mm x 60.5mm

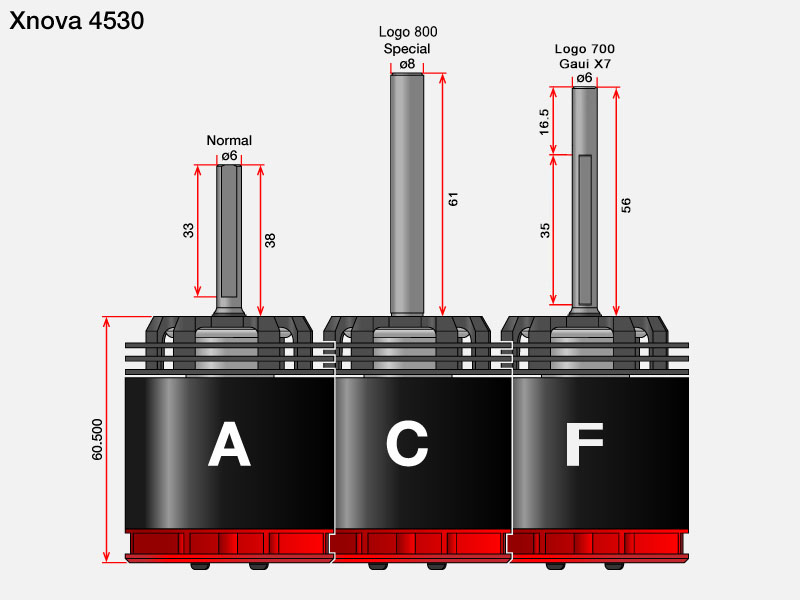

External Shaft Dimensions	6mm x 38mm
Continuous Current	130Amps
Continuous Power	5100 Watts
Peak Power	11000 Watts (2 seconds)
Max Lipo Cell*	12s
No. of Slots	12
No. of Poles	10
Motor Wind T	4+5 YY with 1.6mm thick wire
Mounting Screws	4*30*M4
